03C145702P Exhaust Manifold With Turbocharger
- 03C145701BNot stocked
Aug 2007 - 03C145701KNot stocked
Mar 2009 - 03C145701TNot stocked
May 2012 - 03C145702PThis pageNot stocked
May 2015 - 03C145703ACurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

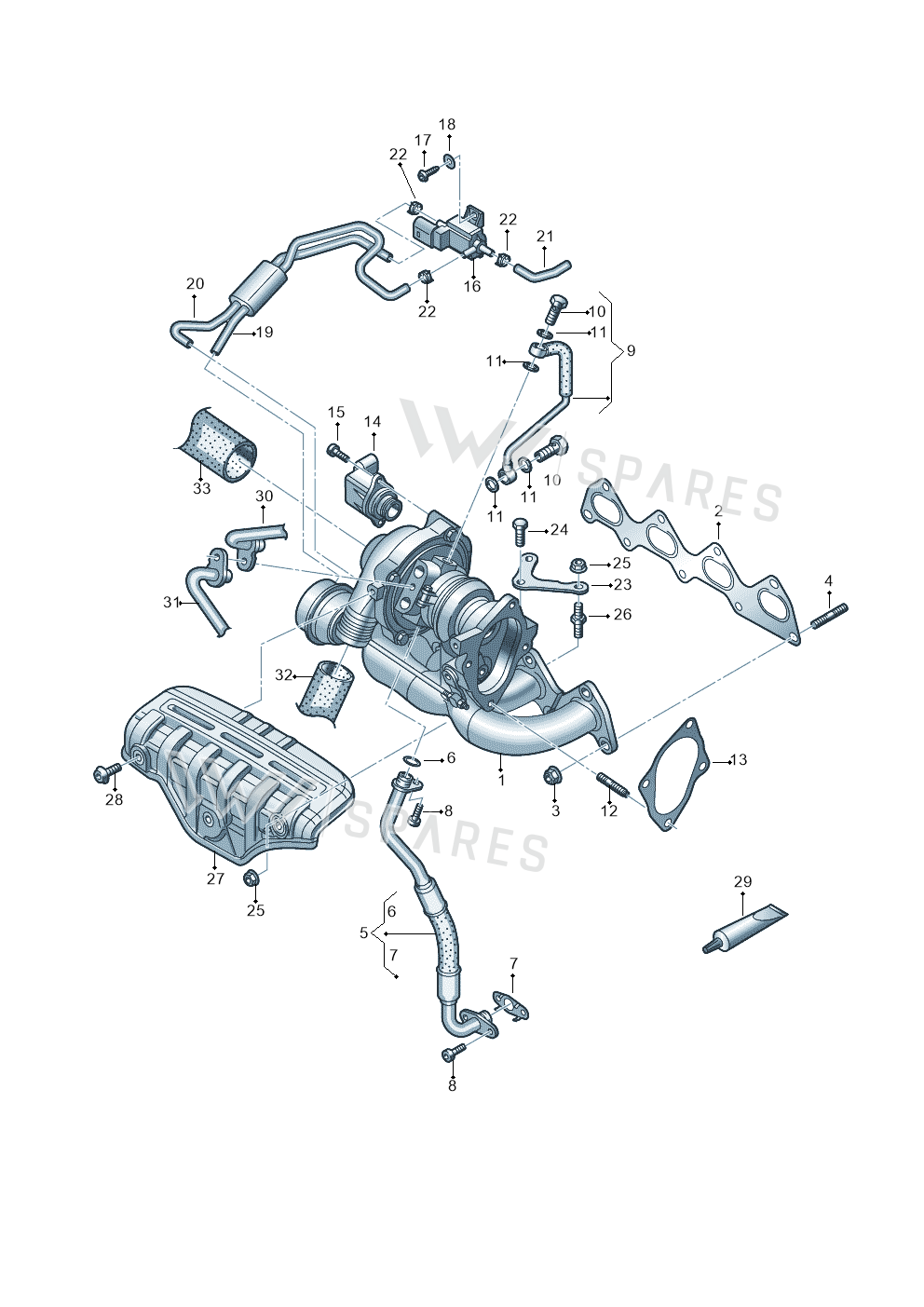

16 vehiclesExhaust Manifold With Turbocharger — locate Exhaust Manifold With Turbocharger in the official exploded view and explore the surrounding assembly.
Parts in this assembly30
- 1Turbo 03C145702PX
- 1Turbo 03C145703A
- 1Turbo 03C145703AX
- 2Seal 03C253039F
- 3Ut Hexagon Nut Self-locking Hexagon Nut N90894601
- 4Bolt WHT004984
- 5Oil Pipe 03C145735C
- 6Seal Ring WHT003367
- 7Seal 03C145757A
- 8Bolt N10335206
- 9Oil Pipe 03C145140M
- 10Screw N0210717
- 11Seal Ring N0138133
- 12Bolt WHT001264
- 13Seal 1K0253115M
- 14Valve 03C145710E
- 15Screw N91032702
- 16Valve 03C906283B
- 17Screw N10453502
- 18Washer N01152322
- 19Hose 03C145718Q
- 20Hose 03C145718R
- 22Clamp 3C0131483
- 23Part 03C253197AB
- 24Bolt N01029319
- 25Collar Nut N01508210
- 26Stud N91160101
- 27Defl Plate 03C253041AM
- 28Bolt N10338903
- 29Paste G052112A3
Vehicle fitment table16
Europe (15)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Jetta 1.6 | 2014-2018 | 1 | 1 | |
| jetta | 2014-2017 | 1 | 1 | |
| Jetta 1.4 | 2013-2015 | 1 | ||
| jetta | 2013-2014 | 1 | ||
| Ibiza Reference | 2012-2012 | 1 | 1 | D31 |
| new beetle | 2011-2016 | 1 | ||
| new beetle cabriolet | 2011-2016 | 1 | ||
| Ibiza Reference | 2011-2012 | 1 | 1 | |
| jetta | 2010-2014 | 42, 1 | ||
| Fabia Scout | 2010-2014 | 1 | 1 | |
| golf estate | 2009-2013 | 1 | ||
| Touran 1.9 | 2008-2010 | 1 | ||
| GOLF PLUS 08> | 2007- | 1 | ||
| JETTA 06> | 2006- | 1 | 1 | |
| TOURAN | 2006- | 1 |
Other markets (1)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Golf/Rabbit 08> | 2007- | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Exhaust Manifold With Turbocharger is fitted on: Jetta 1.6 2014-2018; jetta 2014-2017; Jetta 1.4 2013-2015; jetta 2013-2014; Ibiza Reference 2012-2012; new beetle 2011-2016; new beetle cabriolet 2011-2016; Ibiza Reference 2011-2012; jetta 2010-2014; Fabia Scout 2010-2014; golf estate 2009-2013; Touran 1.9 2008-2010; GOLF PLUS 08> 2007-; JETTA 06> 2006-; TOURAN 2006-; Golf/Rabbit 08> 2007-.
