03F103101A Cylinder Block
- 03F103101AThis pageNot stocked
Nov 2012 - 03F103101Not stocked
Feb 2013 - 03F103101BCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

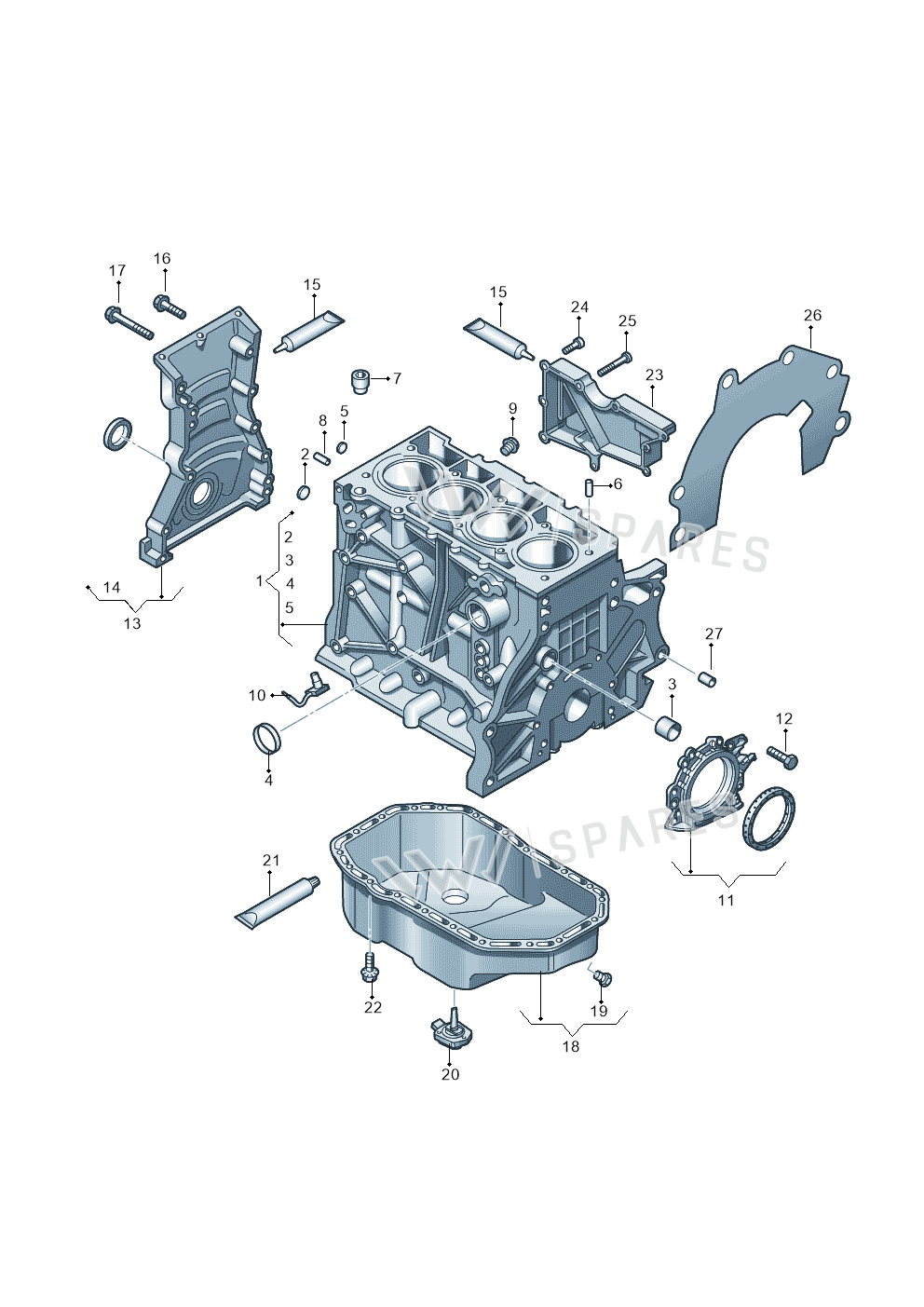

6 vehiclesCylinder Block — locate Cylinder Block in the official exploded view and explore the surrounding assembly.
Parts in this assembly25
- 1Part 03F103101B
- 2Cover N0119098
- 3Cover 03C103113
- 4Cover 036103113
- 5Cover N10218603
- 6Sleeve 03C103143
- 7Valve 03F103156A
- 8Part N0432072
- 9Bolt N90813202
- 10Vent 03C103157A
- 11Part 036103171B
- 12Bolt N90842402
- 13Case 03F109210C
- 14Radial Sea 038103085C
- 15Seal D176501A1
- 16Socket N10734501
- 17Socket N10734401
- 18Oil Sump 03C103601BK
- 21Seal D176600A1
- 22Screw N10248003
- 23Separator 03F103464C
- 24Bolt N10748001
- 25Screw N10470703
- 26Spacer Pl 03C103551L
- 27Sleeve 022103139B
Vehicle fitment table6
Europe (6)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Ibiza Reference | 2011-2012 | 1 | 1 | |
| Altea XL Reference | 2010-2013 | 1 | 1 | D |
| Leon Stylance | 2010-2012 | 1 | 1 | D |
| Golf Plus 1.6 | 2009-2011 | 1 | 1 | |
| Ibiza Reference | 2008-2011 | 1 | 1 | |
| golf 2.0 | 2008-2011 | 1 | 1 | DB0,DB1 |
Diagrams & fitment data powered by oemdiagrams.com
Cylinder Block is fitted on: Ibiza Reference 2011-2012; Altea XL Reference 2010-2013; Leon Stylance 2010-2012; Golf Plus 1.6 2009-2011; Ibiza Reference 2008-2011; golf 2.0 2008-2011.
