03F115251 Suction Line
- 03F115251This pageNot stocked
Jan 2010 - 03F115251ASuperseded
Nov 2012 - 03F115251BCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

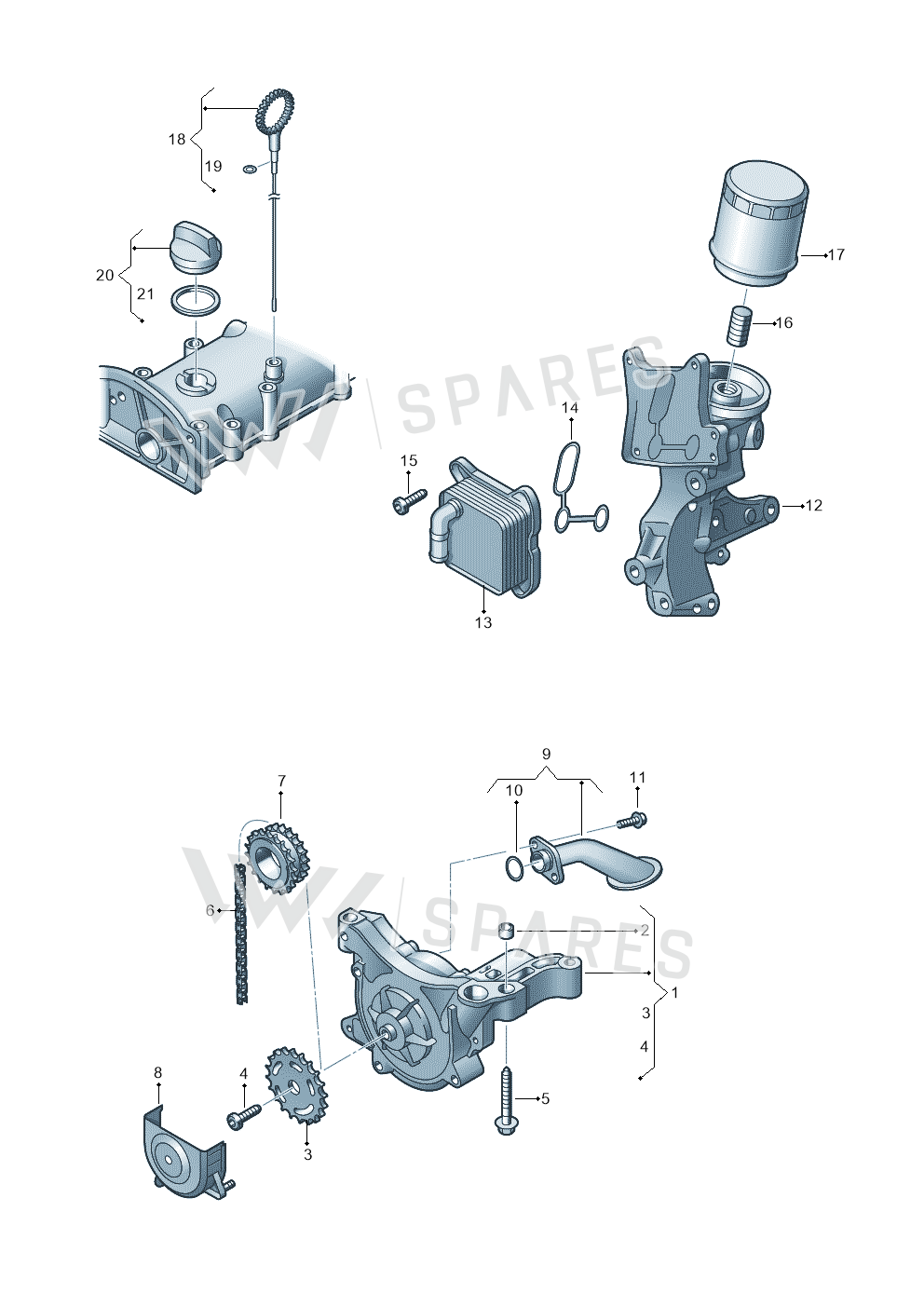

2 vehiclesSuction Line — locate Suction Line in the official exploded view and explore the surrounding assembly.
Parts in this assembly18
- 1Oil Pump 03F115105D
- 2Sleeve 03D115143A
- 3Chn Sprckt 03F115121B
- 4Bolt N90365901
- 5Screw N90853902
- 6Chain 03F115225
- 8Cover 03F103669A
- 9Pipe 03F115251A
- 10Seal Ring N0282222
- 11Bolt N10124408
- 13Oil Cooler 03F117021A
- 14Seal 03F115111A
- 15Bolt N91096701
- 16Union 03C115721D
- 17Oil Filter 03C115561B
- 17Oil Filter 03C115561D
- 18Oil Dipsti 03F115611D
- 19Seal Ring 03F115331
Vehicle fitment table2
Europe (2)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Golf Plus 1.6 | 2009-2011 | 9 | 1 | DB0,DB1 |
| golf 2.0 | 2008-2011 | 9 | 1 | DB0,DB1 |
Diagrams & fitment data powered by oemdiagrams.com
Suction Line is fitted on: Golf Plus 1.6 2009-2011; golf 2.0 2008-2011.
