03F253041Q Seal
- 03F253041QThis pageNot stocked
Dec 2014 - 03F253041AACurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SEAT is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

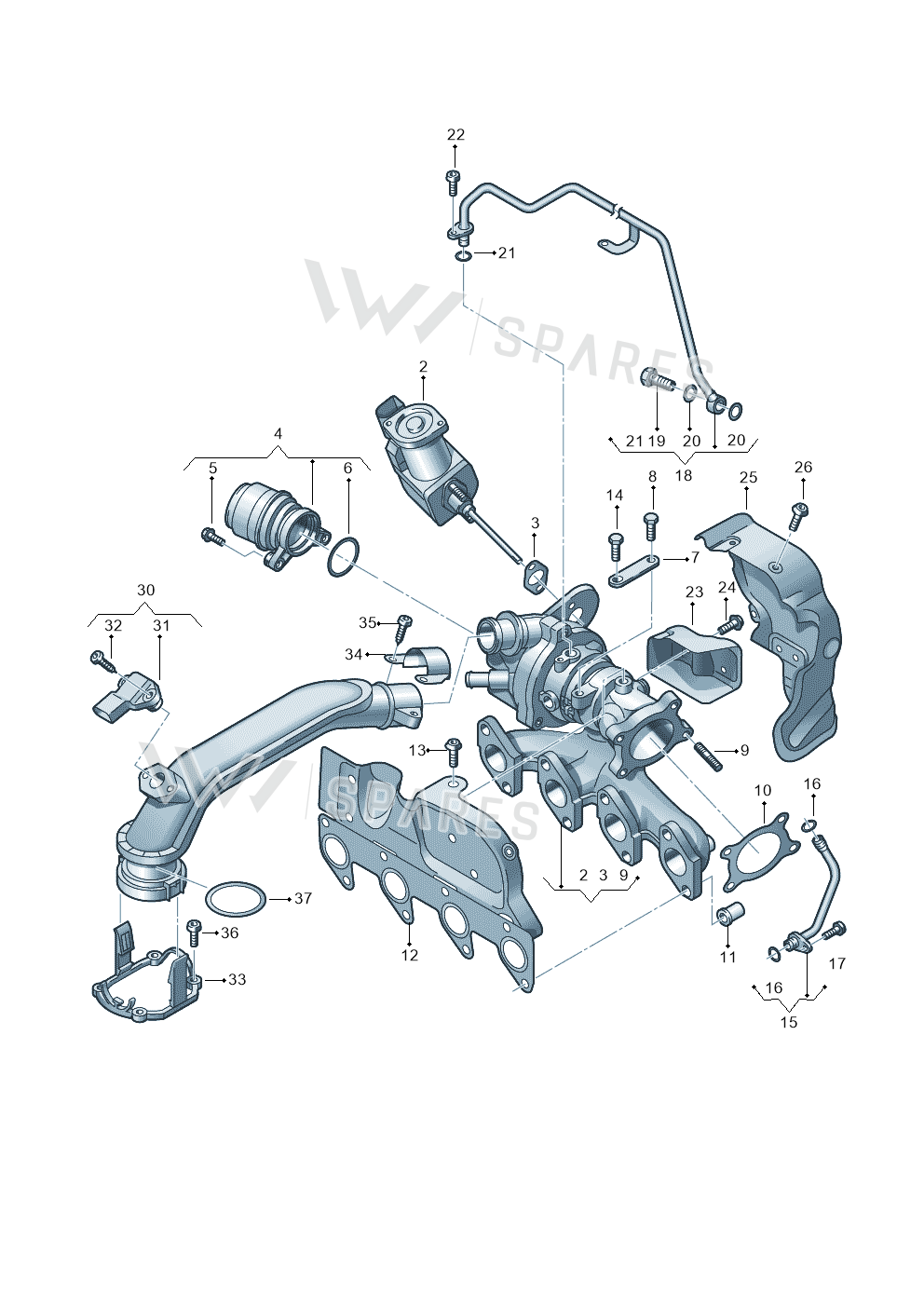

14 vehiclesSeal — locate Seal in the official exploded view and explore the surrounding assembly.
Parts in this assembly38
- 1Turbo 03F145701H
- 1Turbo 03F145701KX
- 1Turbo 03F145701M
- 1Turbo 03F145701MX
- 2Part 03F198725A
- 2Part 03F198725C
- 4Intake Man 03F129656F
- 6Seal Ring WHT006135
- 7Support 03F145195
- 8Bolt N01029319
- 9Bolt WHT002622
- 10Seal 1K0253115AF
- 10Seal 1K0253115AH
- 11Part WHT004982
- 12Seal 03F253041P
- 13Bolt N91096603
- 15Oil Line 03F145735C
- 15Oil Line 03F145735E
- 16Seal Ring WHT005363
- 17Bolt N10451405
- 18Oil Pipe 03F145140D
- 18Oil Pipe 03F145140E
- 19Screw N0210717
- 20Seal Ring N0138133
- 21Seal Ring 8P0145117A
- 22Bolt N10405604
- 23Defl Plate 03F253041G
- 23Defl Plate 03F253041R
- 25Defl Plate 03F253041M
- 25Defl Plate 03F253041S
- 30Pipe 03F145673F
- 31Sensor 03G906051D
- 32Screw N90739704
- 33Part 03F145853A
- 34Adapter 03F145853
- 35Screw N10611201
- 36Bolt N10668001
- 37Seal Ring WHT005280
Vehicle fitment table14
Europe (14)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Altea XL Reference | 2013-2013 | 12 | 1 | TW0 | |
| new beetle | 2011-2016 | 12 | 1 | ||
| new beetle cabriolet | 2011-2016 | 12 | 1 | ||
| Ibiza Reference | 2011-2012 | 12 | 1 | TW0 | |
| Roomster | 2010-2015 | 12 | 1 | ||
| Audi A1 Sportback | 2010-2015 | 2 | 1 | CBZA | TW0 |
| jetta | 2010-2014 | 12 | 1 | ||
| Fabia Scout | 2010-2014 | 12 | 1 | ||
| Altea XL Reference | 2010-2013 | 12 | 1 | TW0 | |
| Leon Stylance | 2010-2012 | 12 | 1 | TW0 | |
| golf estate | 2009-2013 | 12 | 1 | ||
| Yeti | 2009-2013 | 12 | 1 | ||
| octavia ambiente | 2008-2013 | 12 | 1 | ||
| Ibiza Reference | 2008-2011 | 12 | 1 | TW0 |
Diagrams & fitment data powered by oemdiagrams.com
Seal is fitted on: Altea XL Reference 2013-2013; new beetle 2011-2016; new beetle cabriolet 2011-2016; Ibiza Reference 2011-2012; Roomster 2010-2015; Audi A1 Sportback 2010-2015; jetta 2010-2014; Fabia Scout 2010-2014; Altea XL Reference 2010-2013; Leon Stylance 2010-2012; golf estate 2009-2013; Yeti 2009-2013; octavia ambiente 2008-2013; Ibiza Reference 2008-2011.
