03G128063D Throttle Valve Control Element
- 03G128063DThis pageNot stocked
Nov 2011 - 03G128063SNot stocked
Mar 2012 - 03G128063TCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

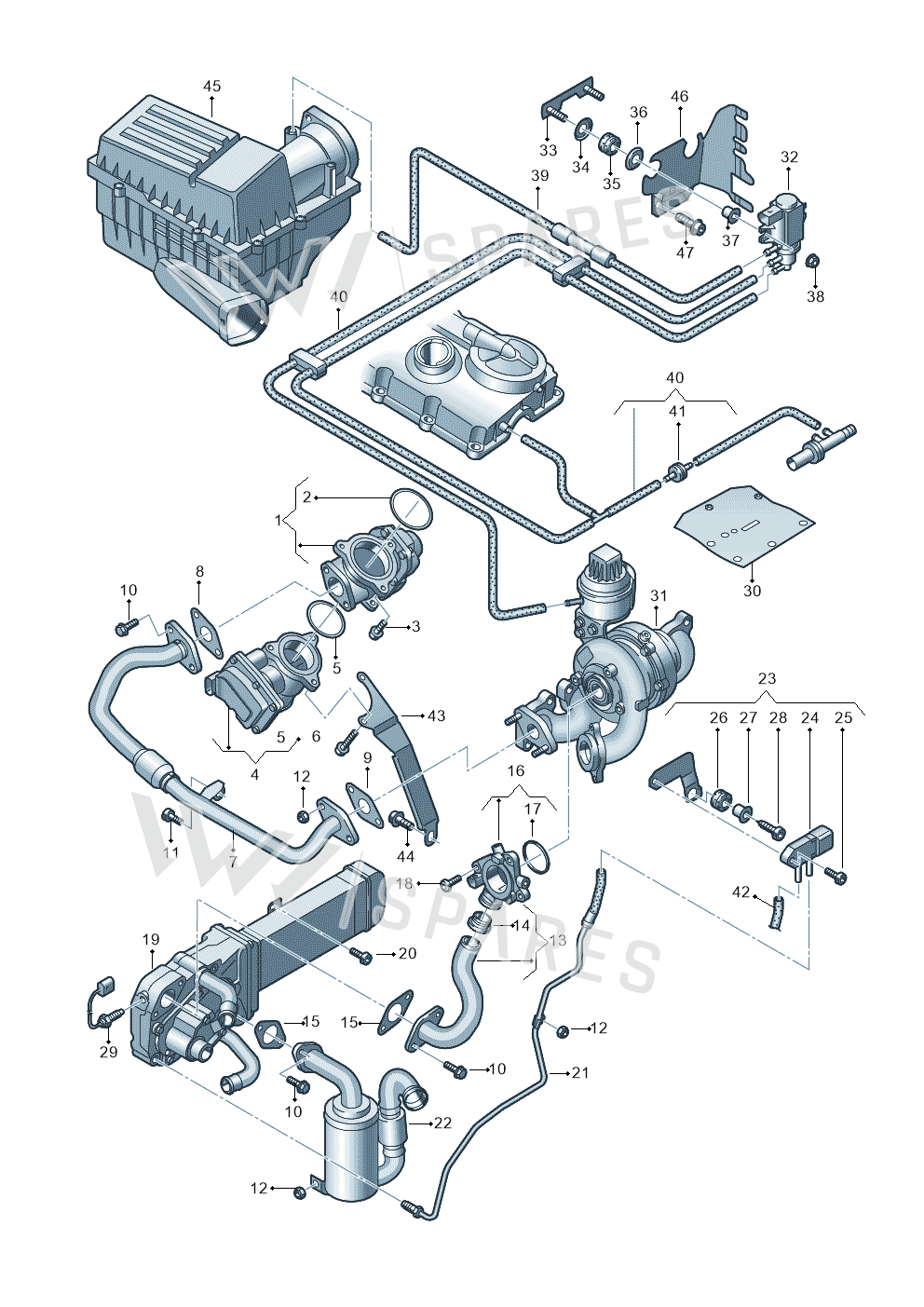

1 vehicleThrottle Valve Control Element — locate Throttle Valve Control Element in the official exploded view and explore the surrounding assembly.
Parts in this assembly43
- 1Valve 03L131501K
- 1Valve 03L131501G
- 2Seal 03G131547C
- 3Bolt N10196103
- 5Seal 03L131547B
- 6Screw N10740901
- 6Screw N10562101
- 7Pipe 03G131521AT
- 8Seal 069131547D
- 9Seal 038131547A
- 10Bolt N10156009
- 11Screw N90355405
- 12Ut Hexagon Nut Self-locking Hexagon Nut N90894601
- 13Pipe 03G131521AJ
- 14Grommet 03L133821
- 15Seal 03G131547H
- 16Adapter 03L129635
- 17Seal 03L131547C
- 18Screw N91032702
- 19Cooler 03L131512AF
- 20Bolt N91073301
- 21Line 03G131553
- 23Retaining 03L131645B
- 24Pressure 076906051B
- 25Screw N10456201
- 26Grommet 046131887
- 27Spacer 052129734
- 28Screw N10611201
- 29Temperature Sensor 03L906529A
- 30Sleeve 1K0971461C
- 32Converter 1K0906627A
- 33Plate 046130405
- 34Thrustring 1K0906139
- 36Thrustring 1K0906139A
- 37Spacer 1K0906435
- 38Collar Nut N01508213
- 39Hose 03L131055C
- 40Hose 03L131055E
- 41Valve 046905291A
- 43Bracket 03L129723J
- 44Screw N10698101
- 46Retaining 1K0906215S
- 47Screw N10650701
Vehicle fitment table1
Europe (1)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| golf 2.0 | 2008-2011 | 4 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Throttle Valve Control Element is fitted on: golf 2.0 2008-2011.
