03G131521F Connecting Pipe
- 03G131521FThis pageNot stocked
Nov 2005 - 03G131521AFCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

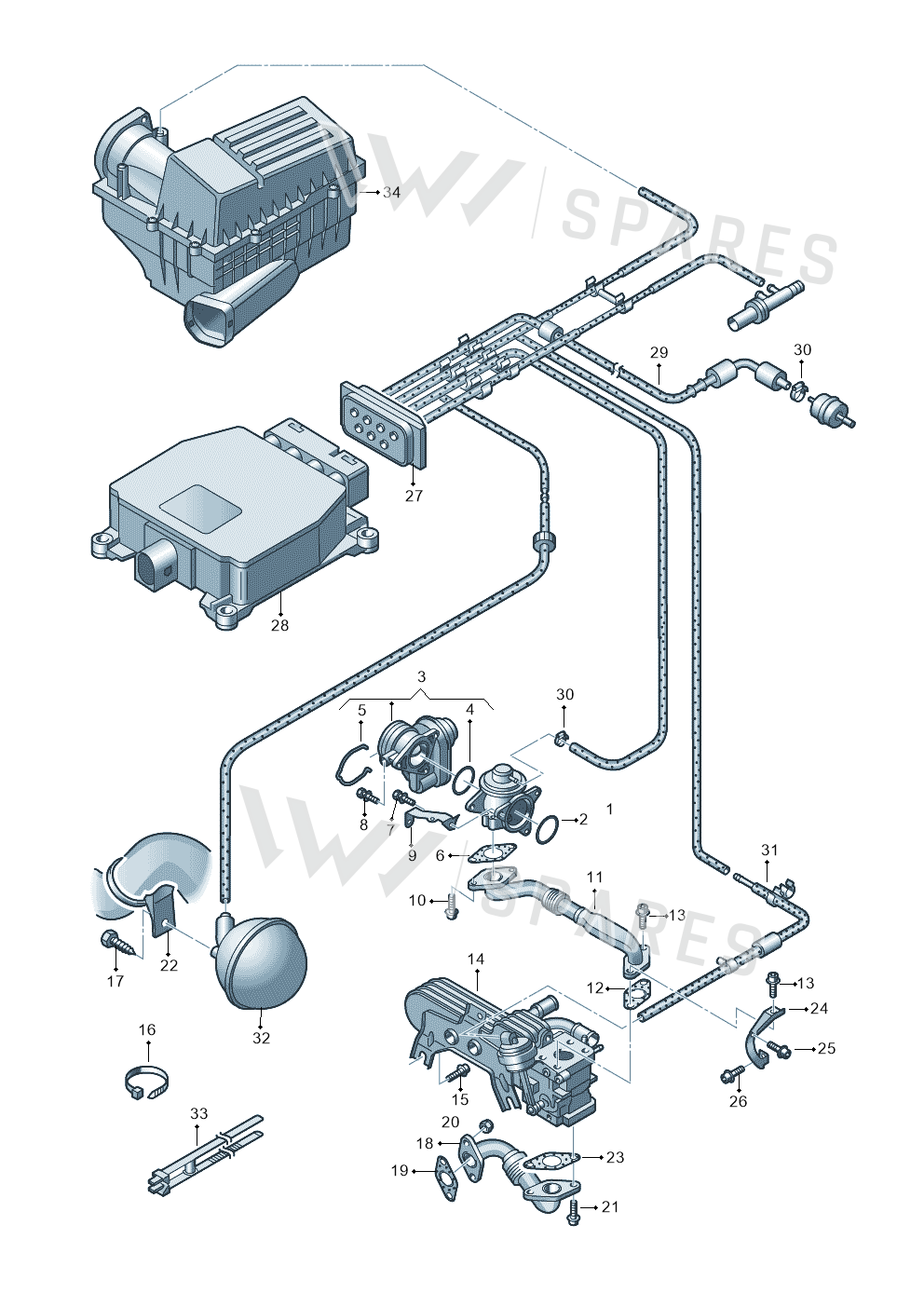

5 vehiclesConnecting Pipe — locate Connecting Pipe in the official exploded view and explore the surrounding assembly.
Parts in this assembly28
- 1Valve 038131501AN
- 2Seal Ring N90927302
- 3Thr Flap 038128063L
- 4Seal Ring N90978701
- 5Clip 1J0145769G
- 6Seal 069131547D
- 7Bolt N10124408
- 8Screw N10553101
- 8Screw N90338204
- 9Bracket 03G971502E
- 10Screw N91048802
- 11Pipe 03G131521AF
- 14Radiator 038131512H
- 15Screw N10114802
- 16Cable Tie 3D0971838N
- 17Screw N01388413
- 18Pipe 038131521CC
- 19Seal 038131547A
- 20Collar Nut N90200201
- 24Retaining 038129811B
- 26Bolt N10680801
- 27Hose 03G131051AC
- 27Hose 03G131051AB
- 29Hose 03G131605A
- 30Clamp N10279301
- 31Hose 03G131605
- 32Damper 7M0129808
- 33Binder 4A0820199
Vehicle fitment table5
Europe (4)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| TOURAN | 2003-2005 | 11 | 1 | |
| GOLF | 2003-2005 | 11 | 1 | |
| Jetta/Wagon | 2002-2006 | 9 | 1 | |
| AUDI A3/S3/QUATTRO | 2000-2003 | 9 | 1 | MS7 |
Other markets (1)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Golf 'R32' n. "USA" | 2004-2004 | 9 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Connecting Pipe is fitted on: TOURAN 2003-2005; GOLF 2003-2005; Jetta/Wagon 2002-2006; AUDI A3/S3/QUATTRO 2000-2003; Golf 'R32' n. "USA" 2004-2004.
