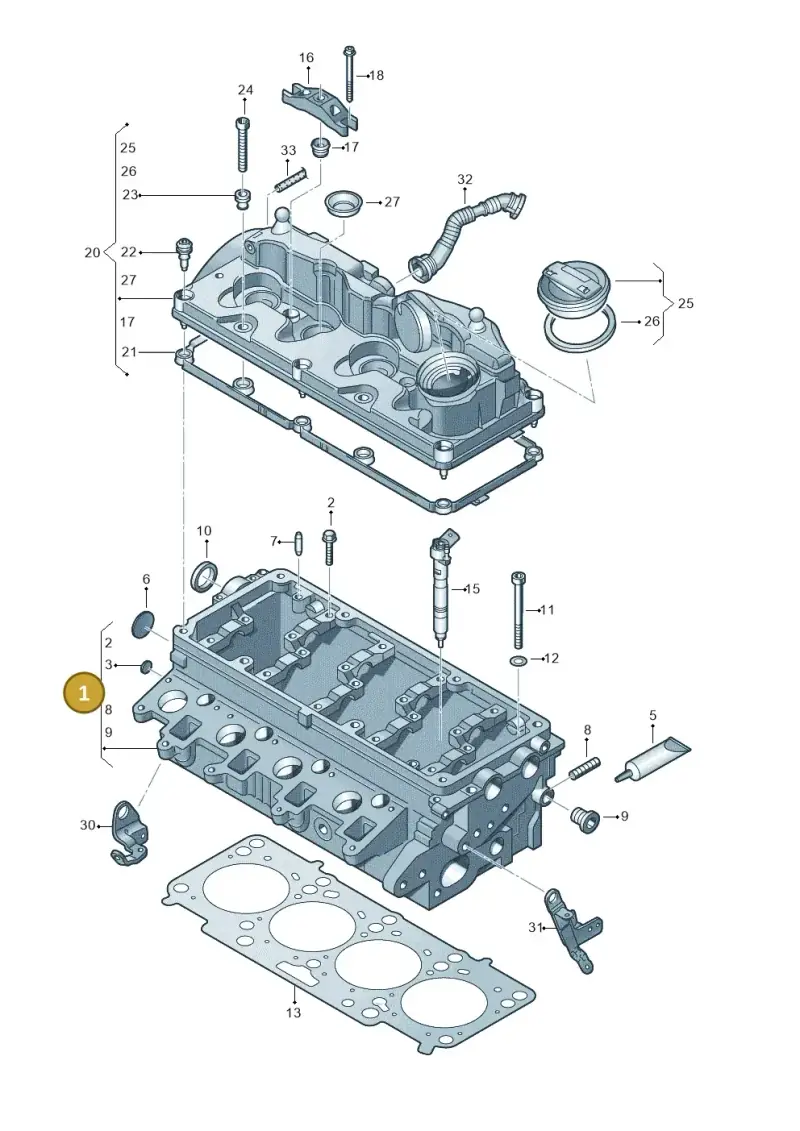

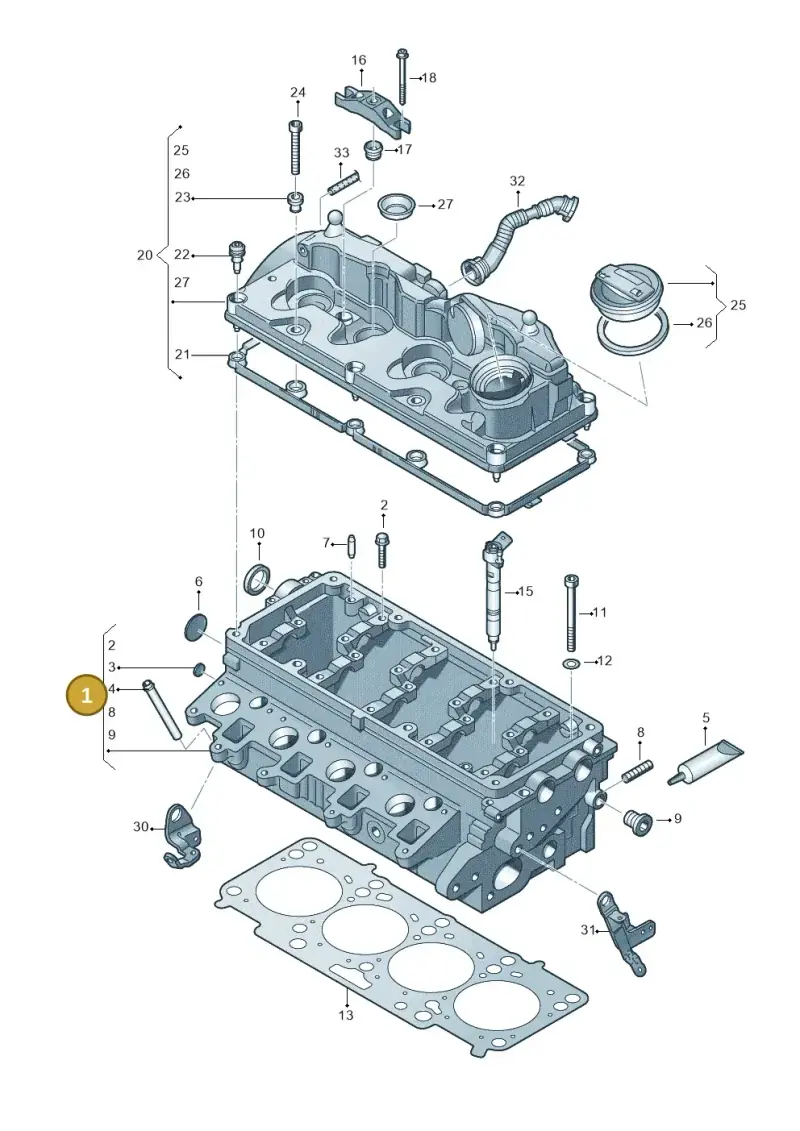

Number 1 marks the part’s position in this exploded view (Volkswagen Amarok (2022-)).
Other diagrams in the gallery may use a different number for the same part.
Product overview
Genuine OEM Volkswagen Cylinder Head, part number 03L103265H. Fits Volkswagen Amarok (2016). Shown as position 1 in the engine diagram 749103500.
Catalogue entry: CYL.HEAD.
Fitted with: 03L103351Q CYL HEAD, 03L103265HX CYL.HEAD, D176501A1 SEAL, 03L103085C RADIAL SEA, WHT002131A SCREW, N90115701 WASHER, 03L103383BJ SEAL, 03L103383BK SEAL, 03L103383BL SEAL, 03L103487 seal ring, 03L103483C SEAL, 04L103070B seal ring.
Technical details
- Category
- Engine
- Diagram sheet
- Volkswagen 749103500, position 1
- ETKA group
- 1 / 03 (103)
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
4 vehiclesCylinder Head — locate 03L103265H Volkswagen Cylinder Head in the official exploded view and explore the surrounding assembly.
Parts in this assembly26
- 1Cylinder Head 03L103265HX
- 1Cylinder Head 03L103351Q
- 2Bolt N10205604
- 3Cover N01191410
- 4Connection 03L103499B
- 5Seal D176501A1
- 6Cover 03L103113A
- 7Part 06D103251
- 8Bolt N0444076
- 8Bolt N90188902
- 9Bolt N90281802
- 10Radial Sea 03L103085C
- 11Screw WHT002131A
- 12Washer N90115701
- 13Seal 03L103383BK
- 13Seal 03L103383BL
- 13Seal 03L103383BJ
- 17Seal Ring 03L103487
- 20Cover 03L103469F
- 21Seal 03L103483C
- 22Bolt 03L103831
- 23Part 057103831B
- 25Cover 06C103485N
- 26Seal 036115111B
- 27Seal Ring 04L103070B
- 32Pipe 03L103493H
Vehicle fitment table4
Europe (4)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| Amarok twin cab | 2022- | 1 | 1 | |
| Amarok twin cab | 2016-2022 | 1 | 1 | |
| Amarok twin cab | 2012-2016 | 1 | 1 | CNFA,CNFB |
| Amarok twin cab | 2009-2012 | 1 | 1 | CNFA |
Diagrams & fitment data powered by oemdiagrams.com
03L103265H Volkswagen Cylinder Head is fitted on: Amarok twin cab 2022-; Amarok twin cab 2016-2022; Amarok twin cab 2012-2016; Amarok twin cab 2009-2012.
