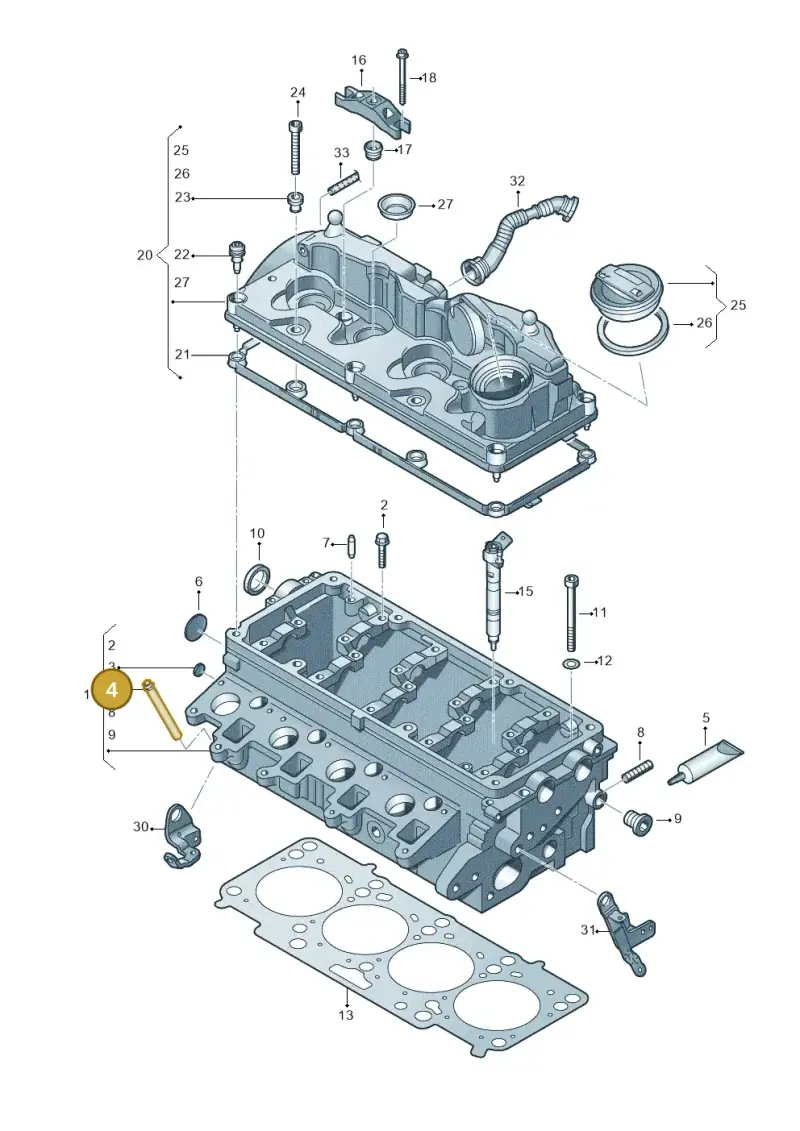

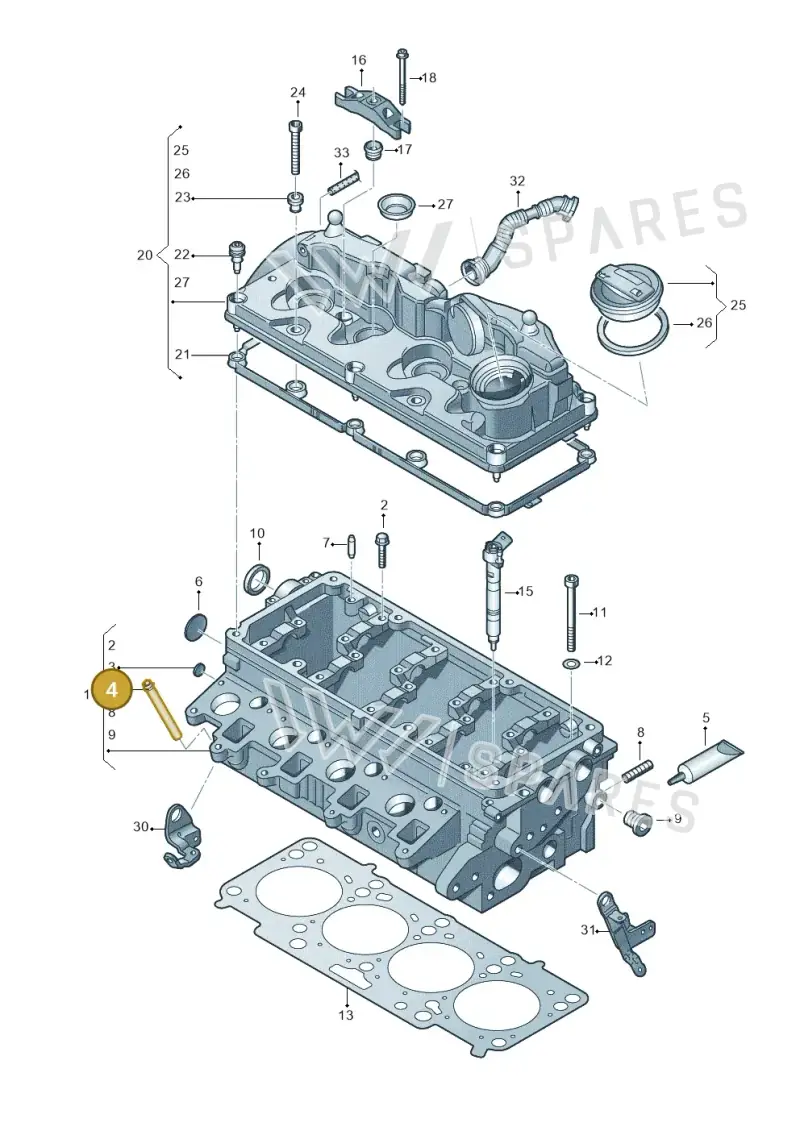

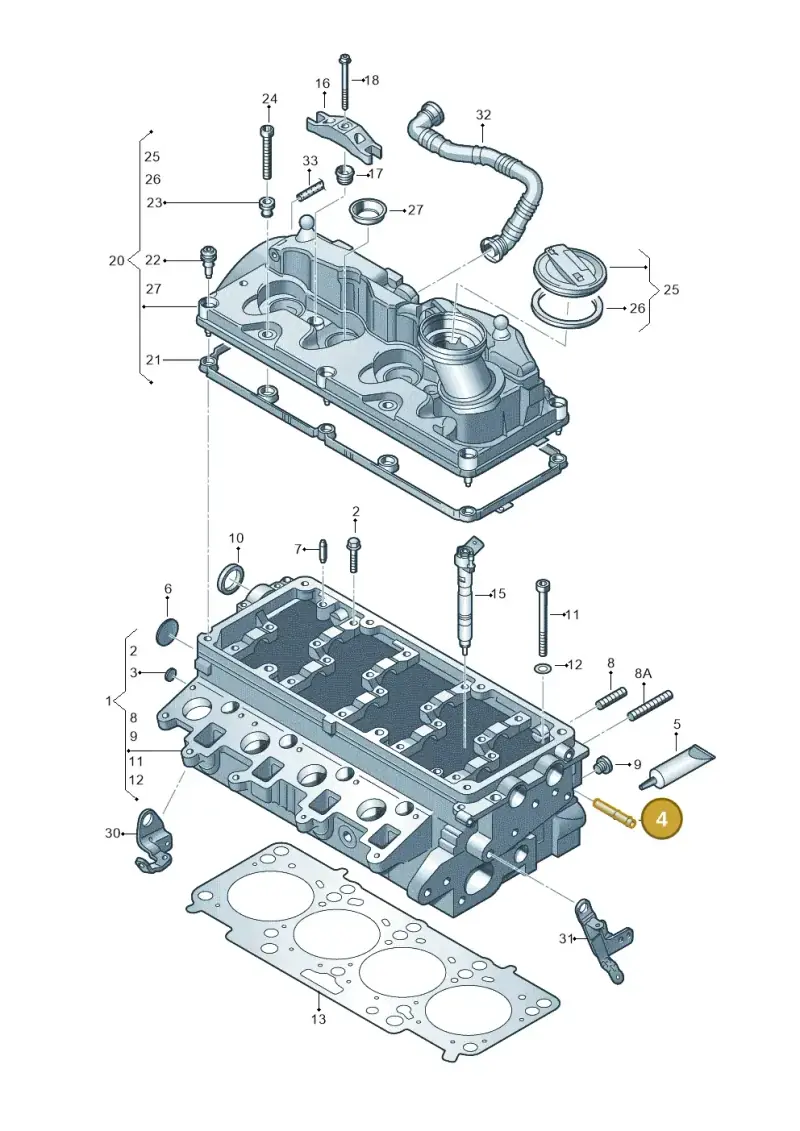

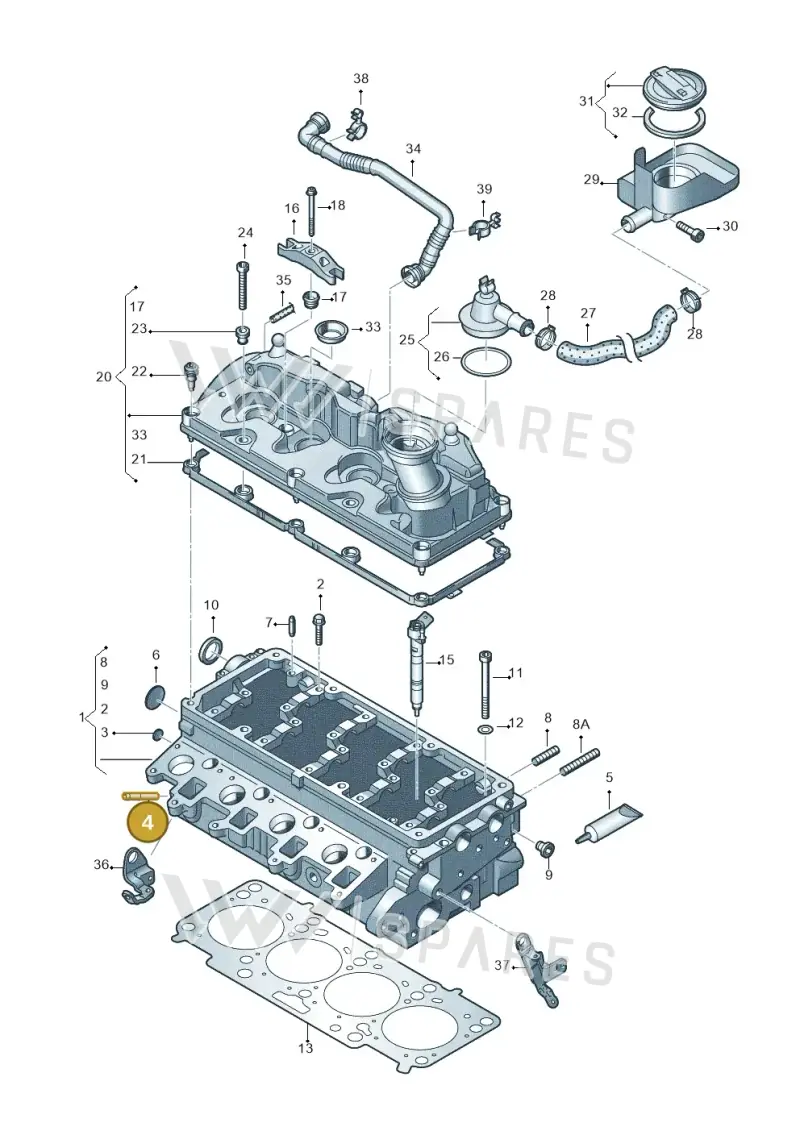

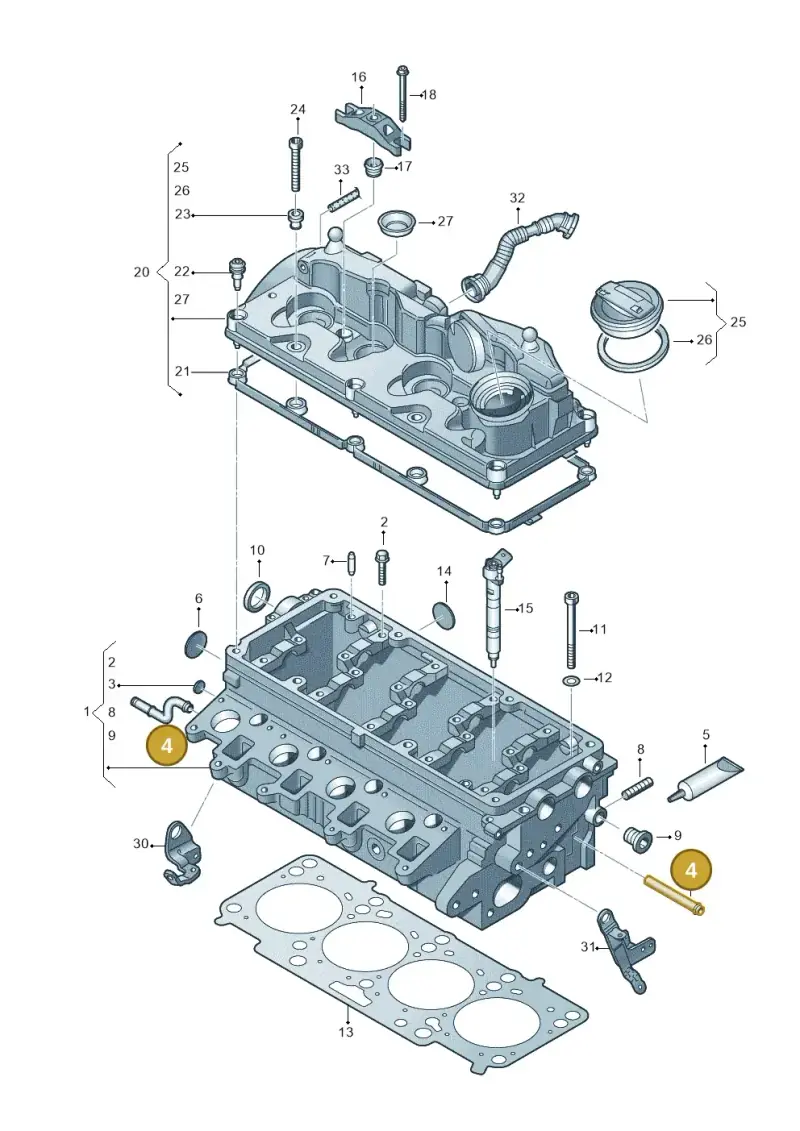

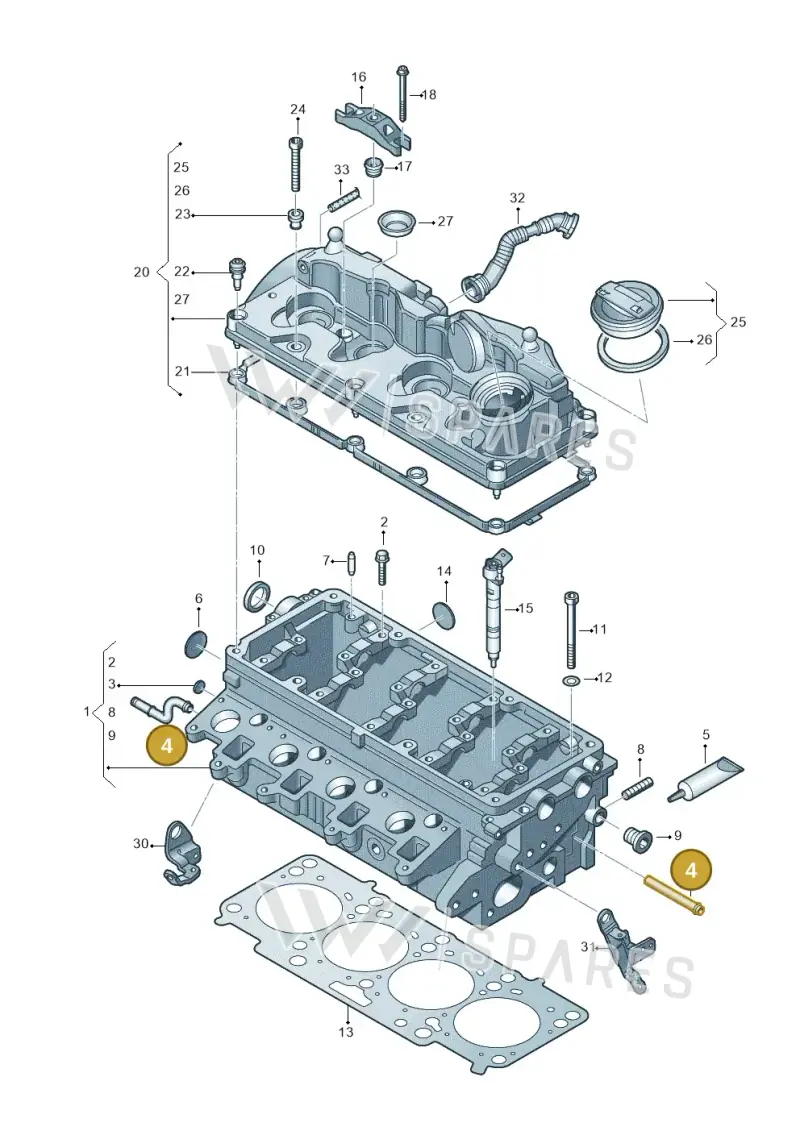

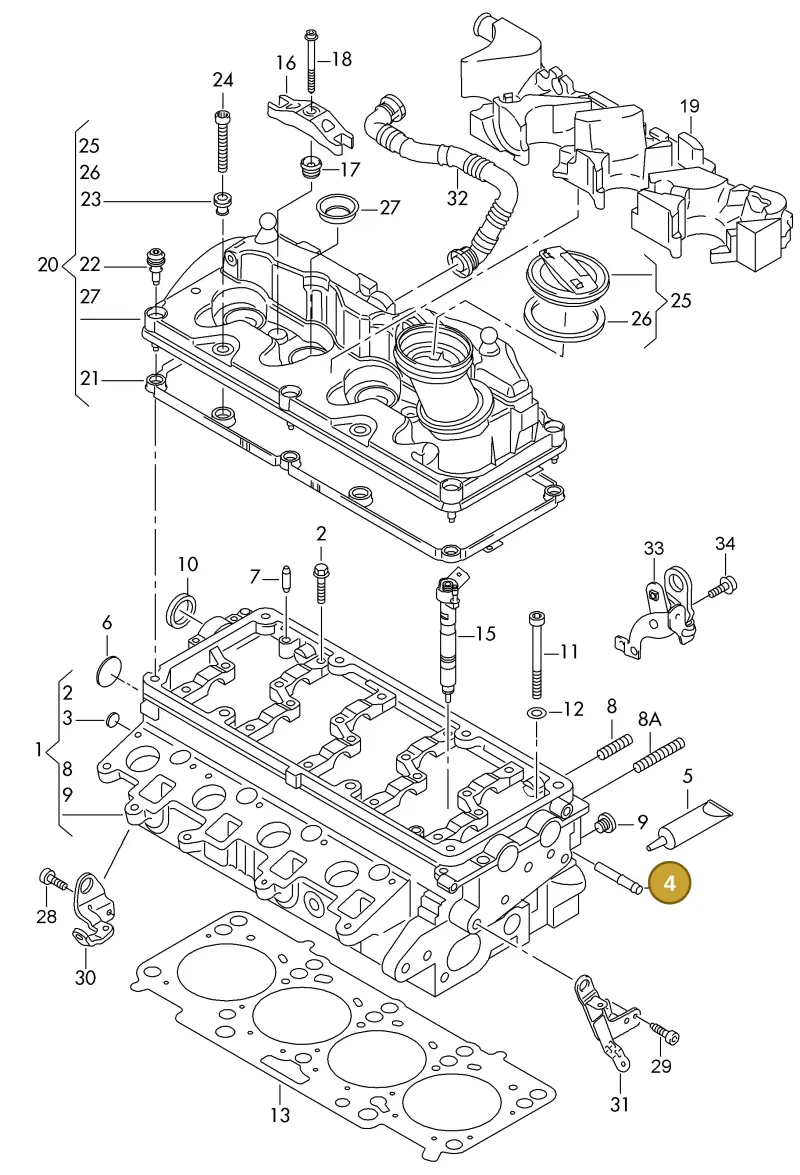

Number 4 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Pipe Union, part number 03L103499B. This union serves as a connector for various fluid or air lines within the engine assembly, ensuring secure and leak-free connections. It is typically found on the engine block or cylinder head. Manufactured from durable metal, it provides a robust connection point. Genuine OEM pipe unions are designed for precise fitment and material integrity to prevent leaks.
Technical details
- Category
- Engine
- Country of origin
- Czech Republic
- Customs (HS) code
- 84099900
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 7.6 × 1 × 1 cm
- Shipping weight
- 0.01 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
14 vehiclesPipe Union — locate 03L103499B Volkswagen Pipe Union | Genuine OEM in the official exploded view and explore the surrounding assembly.
Superseded by WHT000884 — the current replacement part (via 03L103483C).
Parts in this assembly26
- 1Cylinder Head 03L103265H
- 1Cylinder Head 03L103265HX
- 1Cylinder Head 03L103351Q
- 2Bolt N10205604
- 3Cover N01191410
- 5Seal D176501A1
- 6Cover 03L103113A
- 7Part 06D103251
- 8Bolt N0444076
- 8Bolt N90188902
- 9Bolt N90281802
- 10Radial Sea 03L103085C
- 11Screw WHT002131A
- 12Washer N90115701
- 13Seal 03L103383BK
- 13Seal 03L103383BL
- 13Seal 03L103383BJ
- 17Seal Ring 03L103487
- 20Cover 03L103469F
- 21Seal 03L103483C
- 22Bolt 03L103831
- 23Part 057103831B
- 25Cover 06C103485N
- 26Seal 036115111B
- 27Seal Ring 04L103070B
- 32Pipe 03L103493H
Compatible / alternative parts(12)
Vehicle fitment table15
Europe (13)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Amarok twin cab | 2022- | 4 | 1 | |
| Amarok twin cab | 2016-2022 | 4 | 1 | |
| caravelle | 2015-2019 | 4 | 1 | |
| Single-cab transp. | 2015-2019 | 4 | 1 | |
| California Camper | 2015-2019 | 4 | 1 | |
| Amarok twin cab | 2012-2016 | 4 | 1 | |
| Crafter 35 panel | 2011-2016 | 4 | 1 | |
| transp. caravelle | 2011-2015 | 4 | 1 | |
| transp. dropside | 2011-2015 | 4 | 1 | |
| California Camper | 2011-2015 | 4 | 1 | |
| transp. caravelle | 2009-2011 | 4 | 1 | |
| transp. dropside | 2009-2011 | 4 | 1 | |
| California Camper | 2009-2011 | 4 | 1 |
Other markets (1)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| DIES.-IND.-MOT.1,9>2,0 08> | 2007- | 4 | 1 | 7KW |
Listed without a diagram position (1)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Amarok twin cab | 2009-2012 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
03L103499B Volkswagen Pipe Union | Genuine OEM is fitted on: Amarok twin cab 2022-; Amarok twin cab 2016-2022; caravelle 2015-2019; Single-cab transp. 2015-2019; California Camper 2015-2019; Amarok twin cab 2012-2016; Crafter 35 panel 2011-2016; transp. caravelle 2011-2015; transp. dropside 2011-2015; California Camper 2011-2015; transp. caravelle 2009-2011; transp. dropside 2009-2011; California Camper 2009-2011; DIES.-IND.-MOT.1,9>2,0 08> 2007-.
