03L103265L Cylinder Head
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

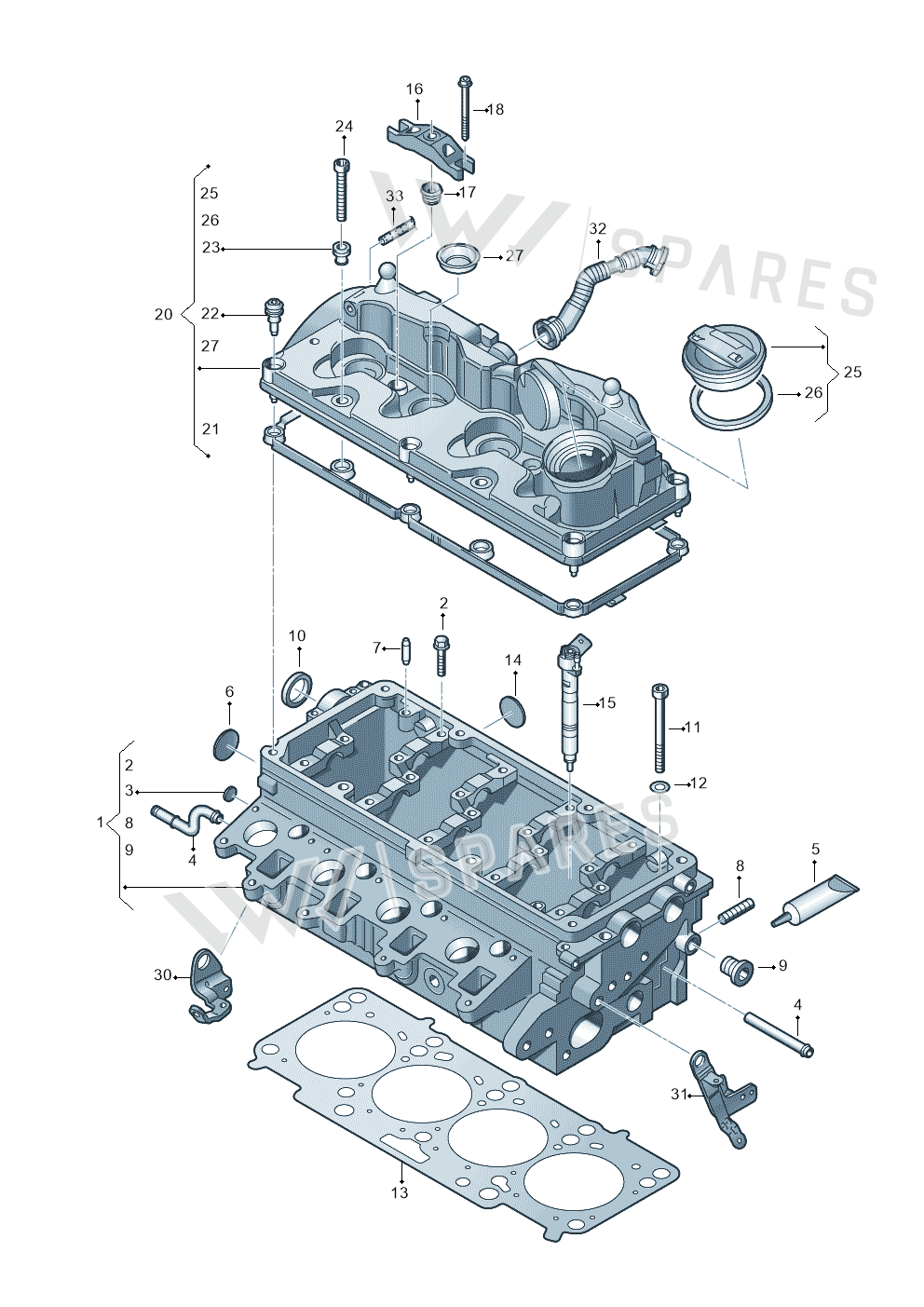

3 vehiclesCylinder Head — locate Cylinder Head in the official exploded view and explore the surrounding assembly.
Parts in this assembly26
- 1Cylinder Head 03L103265LX
- 2Bolt N10205604
- 3Cover N0119085
- 4Connection 03L103499C
- 5Sealant D200005A2
- 6Cover 03L103113A
- 7Part 06D103251
- 8Bolt N0444076
- 8Bolt N90188902
- 9Bolt N90281802
- 10Radial Sea 03L103085C
- 11Screw WHT002131A
- 12Washer N90115701
- 13Seal 03L103383DD
- 13Seal 03L103383DE
- 13Seal 03L103383DC
- 14Cover N01190710
- 17Seal Ring 03L103487
- 20Cover 03L103469F
- 21Seal 03L103483C
- 22Bolt 03L103831
- 23Part 057103831B
- 25Cover 06C103485N
- 26Seal 036115111B
- 27Seal Ring 04L103070B
- 32Pipe 03L103493H
Vehicle fitment table3
Europe (3)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Amarok twin cab | 2022- | 1 | 1 |
| Amarok twin cab | 2016-2022 | 1 | 1 |
| Amarok twin cab | 2012-2016 | 1 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Cylinder Head is fitted on: Amarok twin cab 2022-; Amarok twin cab 2016-2022; Amarok twin cab 2012-2016.
