03L131521 Connecting Pipe
- 03L131521This pageNot stocked
Jan 2010 - 03L131521AKCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

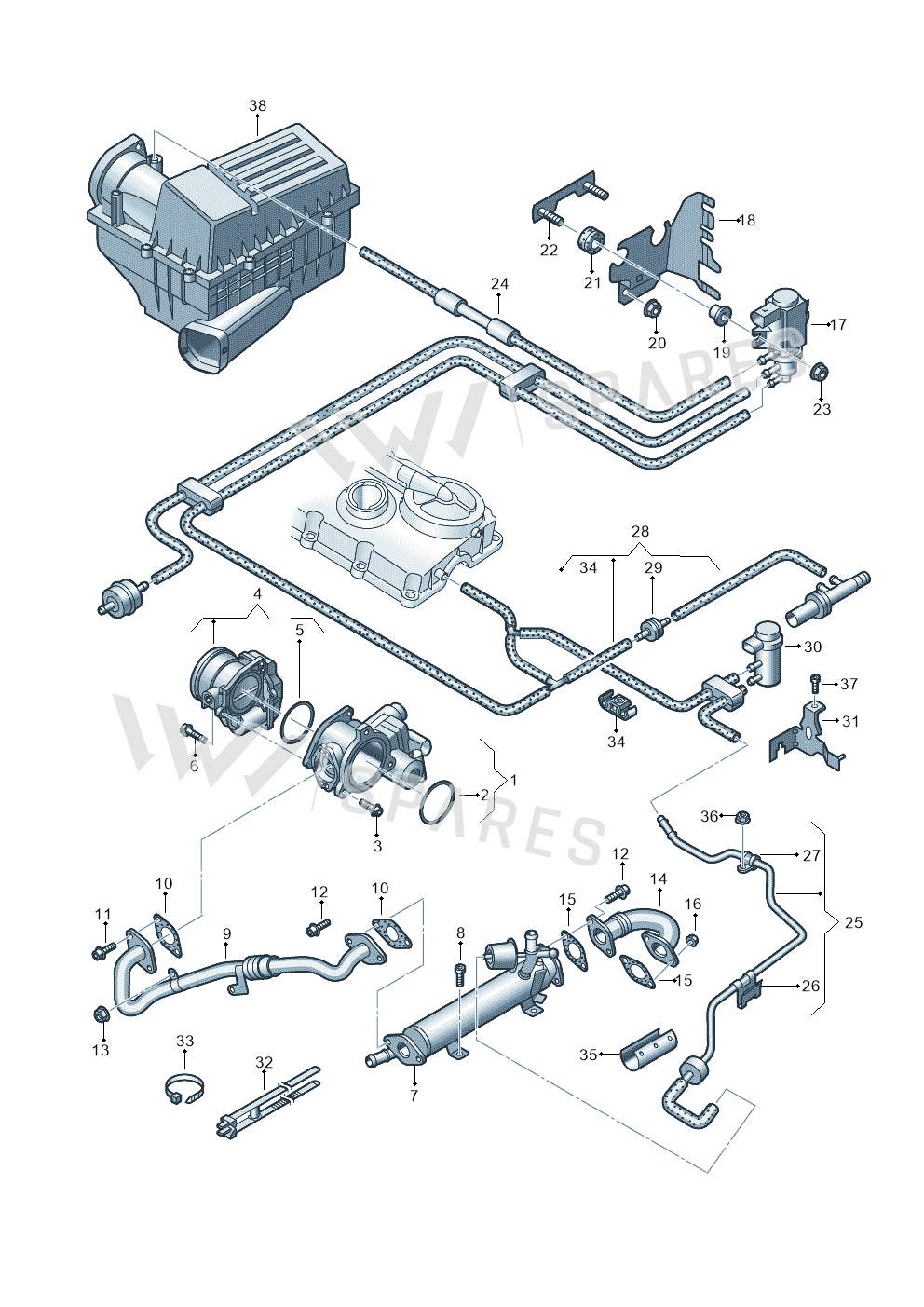

6 vehiclesConnecting Pipe — locate Connecting Pipe in the official exploded view and explore the surrounding assembly.
Parts in this assembly38
- 1Valve 03L131501E
- 1Valve 03L131501G
- 2Seal 03G131547C
- 3Screw N10653601
- 4Thr Flap 03L128063E
- 4Thr Flap 03L128063C
- 4Thr Flap 03L128063D
- 5Seal 03L131547B
- 6Screw N10740901
- 6Bolt N10670301
- 7Radiator 03L131512B
- 8Bolt N10335207
- 10Seal 069131547D
- 11Screw N91048802
- 12Screw N10664901
- 13Collar Nut N01508210
- 14Pipe 03G131521AM
- 15Seal 038131547A
- 16Ut Hexagon Nut Self-locking Hexagon Nut N90894601
- 17Converter 1K0906627A
- 18Retaining 1K0906215S
- 19Spacer 052129734
- 21Grommet 046131887
- 22Plate 046130405
- 24Hose 03L131055C
- 25Pipe 03L131605H
- 26Clip 07D971939
- 27Clamp N10088302
- 27Clamp N91171101
- 28Hose 03L131055D
- 29Valve 046905291B
- 30Valve 1K0906283A
- 31Retaining 03L131529D
- 32Binder 4A0820199
- 33Binder 3D0971838E
- 34Clip 6Q0131927
- 35Heat Insul 03G131531F
- 37Bolt N10406504
Vehicle fitment table6
Europe (6)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| GOLF VARIANT 07> | 2007- | 9 | 1 | |
| Passat/4Motion 08 | 2007- | 9 | 1 | |
| Audi TT Coupe/Roadster 08> | 2007- | 10 | 1 | TG3 |
| ALTEA 07> | 2006- | 9 | 1 | |
| LEON 06> | 2005- | 9 | 1 | |
| TOLEDO 05> | 2004- | 9 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Connecting Pipe is fitted on: GOLF VARIANT 07> 2007-; Passat/4Motion 08 2007-; Audi TT Coupe/Roadster 08> 2007-; ALTEA 07> 2006-; LEON 06> 2005-; TOLEDO 05> 2004-.
