Product overview
Genuine OEM Volkswagen Pressure Pipe, part number 03P130301. This pipe is part of the fuel injection system, responsible for delivering high-pressure fuel to the injectors. Its robust construction and precise dimensions ensure reliable fuel delivery. The pipe measures 145mm in length, 68mm in width, and 20mm in height. Genuine OEM parts are manufactured to exact specifications for reliable performance.
Technical details
- Category
- Fuel System
- Country of origin
- France
- Customs (HS) code
- 84099900
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 14.5 × 6.8 × 2 cm
- Shipping weight
- 0.06 kg

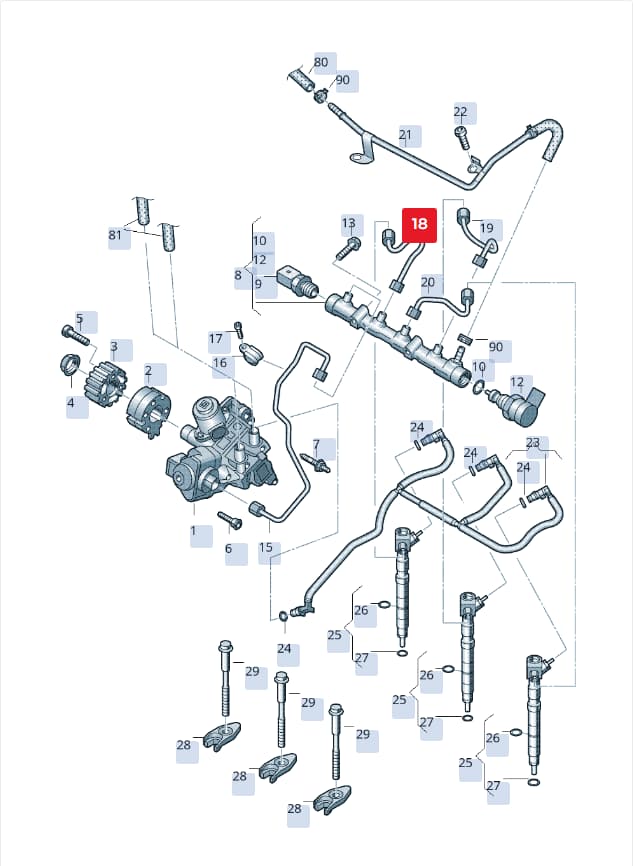

Parts diagram & fitment
10 vehiclesPressure Pipe — locate 03P130301 Volkswagen Pressure Pipe | Fuel System in the official exploded view and explore the surrounding assembly.
Parts in this assembly(26)
- 1Pump 03P130755
- 2Part 03L130238A
- 3Pulley 03L130111E
- 4Collar Nut WHT002244
- 5Screw N91176101
- 6Screw WHT002494
- 7Stud N90984401
- 8Rail 03P130089
- 9Sensor 03L906051
- 10Seal Ring N90451902
- 12Valve 057130764AB
- 13Bolt N91003601
- 15Pipe 03P130321
- 16Clamp N91171101
- 17Screw N10170303
- 19Pipe 03P130302
- 20Pipe 03P130303
- 21Fuel Line 03P201360A
- 23Pipe 03P130235A
- 24Seal Ring WHT005299
- 25Injector 03P130277
- 26Seal Ring WHT000884
- 27Seal Ring 03P130519
- 28Plate 03P130216
- 29Screw WHT004710
- 90Clamp N90986501
Compatible / alternative parts(12)
Diagrams & fitment data powered by oemdiagrams.com
03P130301 Volkswagen Pressure Pipe | Fuel System is fitted on: Polo 2009-2012; Polo 2009-2014; Polo 2012-2014; Polo 2014-2022; Ibiza Reference 2008-2011; Ibiza Reference 2011-2012; Ibiza Reference 2012-2012; Fabia Scout 2010-2014; Roomster 2010-2015; Fabia Ambiente 2009-2013.
