N91003601 Bolt
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

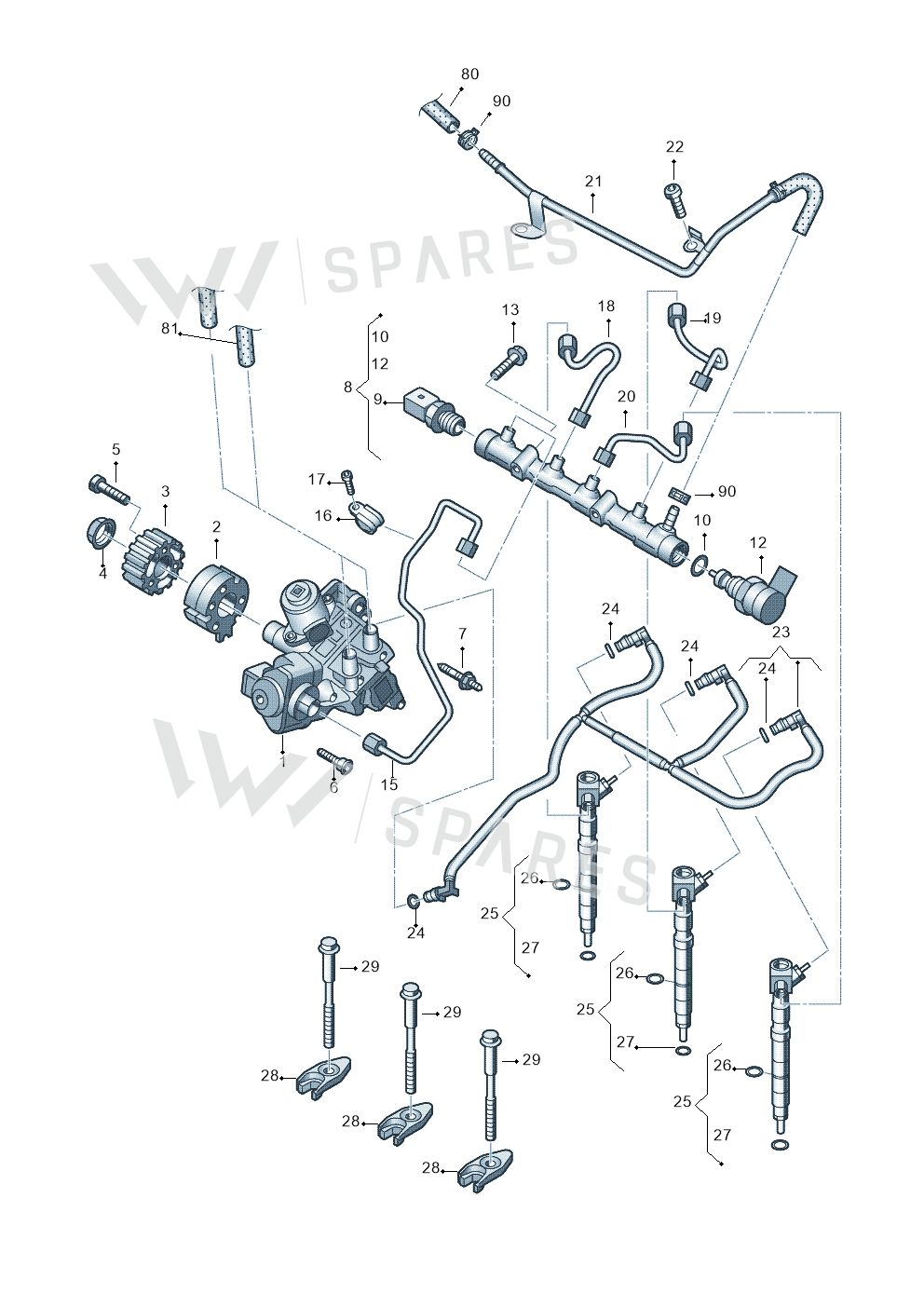

11 vehiclesBolt — locate Bolt in the official exploded view and explore the surrounding assembly.
Standard part (a norm part such as a bolt, nut or clip) — used across many models; the vehicle list shows where this exact number is fitted.
Parts in this assembly26
- 1Pump 03P130755
- 2Part 03L130238A
- 3Pulley 03L130111E
- 4Collar Nut WHT002244
- 5Screw N91176101
- 6Screw WHT002494
- 7Stud N90984401
- 8Rail 03P130089
- 9Sensor 03L906051
- 10Seal Ring N90451902
- 12Valve 057130764AB
- 15Pipe 03P130321
- 16Clamp N91171101
- 17Screw N10170303
- 18Pipe 03P130301
- 19Pipe 03P130302
- 20Pipe 03P130303
- 21Fuel Line 03P201360A
- 23Pipe 03P130235A
- 24Seal Ring WHT005299
- 25Injector 03P130277
- 26Seal Ring WHT000884
- 27Seal Ring 03P130519
- 28Plate 03P130216
- 29Screw WHT004710
- 90Clamp N90986501
Vehicle fitment table11
Europe (11)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Roomster | 2010-2015 | 13 | 1 |
| Fabia Scout | 2010-2014 | 13 | 1 |
| Polo | 2009-2014 | 13 | 2 |
| Fabia Ambiente | 2009-2013 | 13 | 1 |
| Polo | 2009-2012 | 13 | 2 |
| transp. caravelle | 2009-2011 | 5 | 4 |
| transp. caravelle | 2008-2009 | 5 | 4 |
| TRANSPORTER GESCHL. 08 | 2007- | 5 | 4 |
| TRANSPORTER/4MOTION 07 | 2006-2007 | 5 | 4 |
| TRANSPORTER/4MOTION 06 | 2005-2006 | 5 | 4 |
| TRANSPORTER | 2003-2005 | 5, 14 | 4 |
Diagrams & fitment data powered by oemdiagrams.com
Bolt is fitted on: Roomster 2010-2015; Fabia Scout 2010-2014; Polo 2009-2014; Fabia Ambiente 2009-2013; Polo 2009-2012; transp. caravelle 2009-2011; transp. caravelle 2008-2009; TRANSPORTER GESCHL. 08 2007-; TRANSPORTER/4MOTION 07 2006-2007; TRANSPORTER/4MOTION 06 2005-2006; TRANSPORTER 2003-2005.
