04C103101E Cylinder Block
- 04C103101Not stocked
Nov 2014 - 04C103101EThis pageNot stocked
Oct 2018 - 04C103101KNot stocked
Jan 2025 - 04C103101LCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SKODA is typically 3–8 business days before dispatch.
Handling time for Skoda: 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

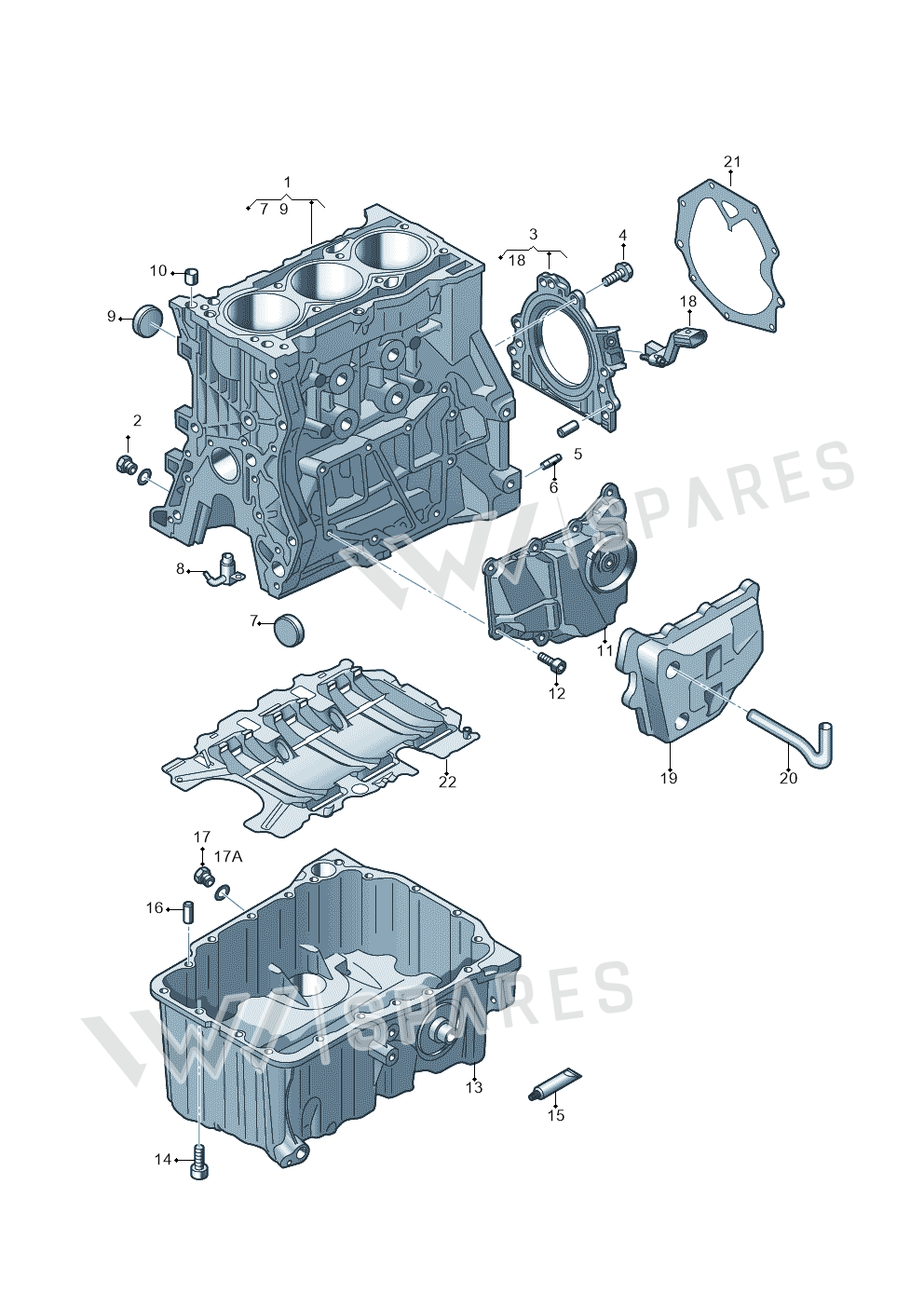

5 vehiclesCylinder Block — locate Cylinder Block in the official exploded view and explore the surrounding assembly.
Parts in this assembly30
- 1Cylinder Block 04C103101K
- 2Bolt N90813202
- 3Flange 04C103170H
- 3Flange 04C103170N
- 4Bolt N10653301
- 5Part N0432072
- 6Sleeve 022103139B
- 7Cover N10218602
- 8Vent 04E103157
- 8Vent 04E103157E
- 9Cover N0119096
- 10Sleeve 03C103143
- 11Separator 04E103464AN
- 11Separator 04E103464M
- 11Separator 04C103464G
- 11Separator 04E103464AH
- 12Bolt N90737803
- 13Oil Sump 04C103601K
- 14Screw N90500605
- 15Seal D176501A1
- 16Part 026103139
- 17Plug N90288901
- 17ASeal Ring N0138158
- 19Cover 04C103729
- 19Cover 04E103729G
- 20Hose 04C103493E
- 20Hose 04C103493H
- 21Spacer Pl 04C103551B
- 22Lock 04C103623B
- 22Lock 04C103623
Vehicle fitment table5
Europe (4)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| up! 1.0 BlueMotion | 2016-2023 | 1 | 1 | ||
| Mii reference | 2011-2019 | 1 | 1 | CHYA,CHYB | TH4 |
| Citigo | 2011-2019 | 1 | 1 | ||
| up! BlueMotion | 2011-2016 | 1 | 1 |
Platform / generic diagrams (1)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| 06A platform | 1 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Cylinder Block is fitted on: up! 1.0 BlueMotion 2016-2023; Mii reference 2011-2019; Citigo 2011-2019; up! BlueMotion 2011-2016; 06A platform.
