04E103469DG Cylinder-Head Cover With Camshaft
- 04E103469DGThis pageNot stocked
Oct 2023 - 05E103469Current number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

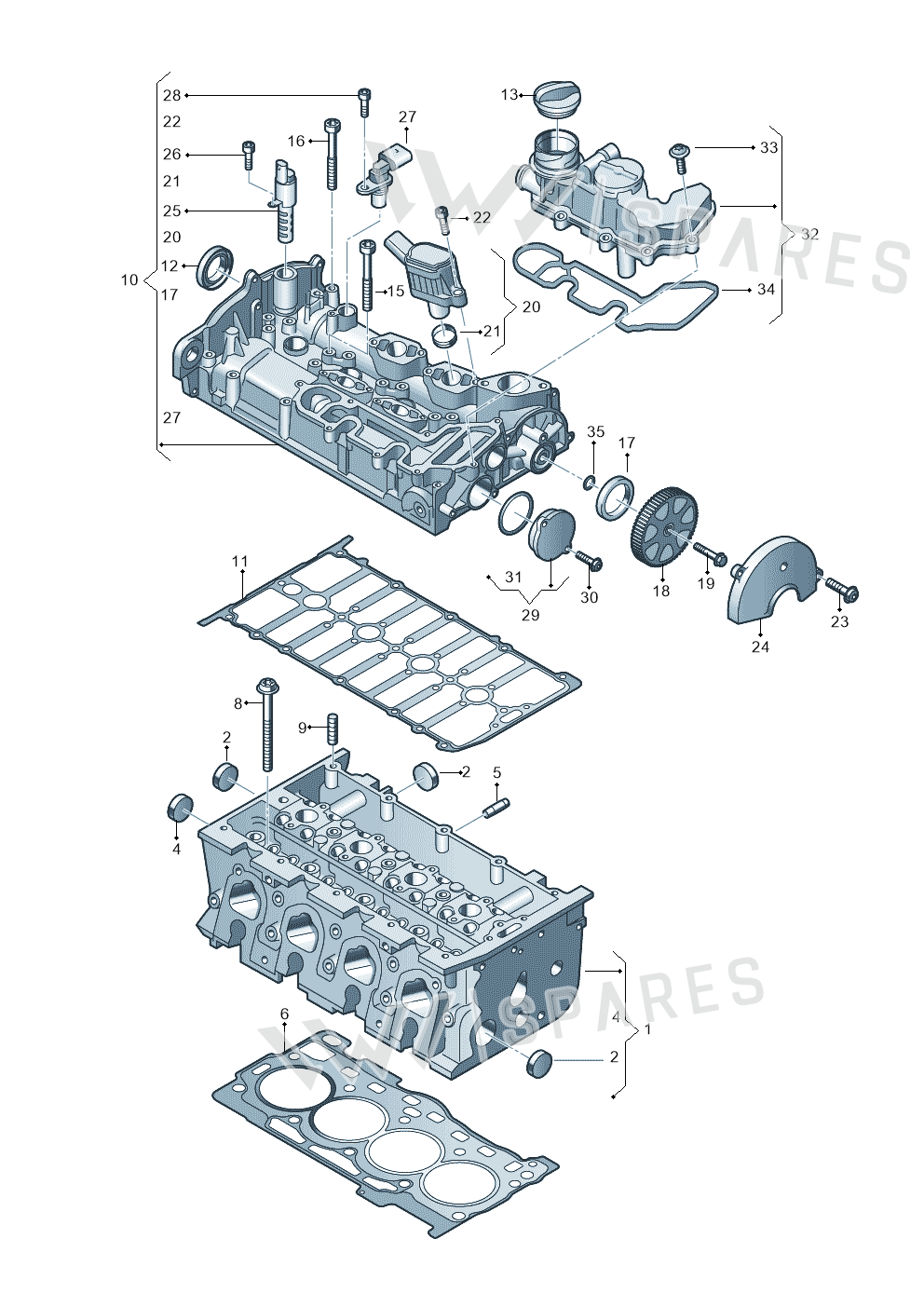

8 vehiclesCylinder-head Cover With Camshaft — locate Cylinder-Head Cover With Camshaft in the official exploded view and explore the surrounding assembly.
Parts in this assembly37
- 1Cylinder Head 05E103063E
- 1Cylinder Head 05E103063EX
- 1Cylinder Head 05E103063F
- 1Cylinder Head 05E103264AX
- 2Cover N01191410
- 4Bungs N90802703
- 5Bolt N91200201
- 6Seal 04E103383CC
- 8Screw WHT007089
- 9Part 026103139
- 10Cylinder Head 05E103469
- 10Cylinder Head 05E103469G
- 10Cylinder Head 04E103469DH
- 11Seal 04E103483S
- 12Seal 04E103085AF
- 13Cover 05E103485C
- 13Cover 05E103485J
- 16Bolt N91254301
- 17Seal 04E103085C
- 18Pulley 04E109111AP
- 19Screw N10689301
- 20Valve 04E906048A
- 21Seal Ring 04E906145A
- 22Screw N10599502
- 23Screw N91097201
- 24Protection 04E109121D
- 24Protection 04E109121N
- 25Valve 04E906455AC
- 26Bolt N91096701
- 27Sender 05E907601D
- 29Cover 04C103335
- 31Seal Ring N90467301
- 32Separator 05E103495J
- 32Separator 05E103495T
- 33Bolt WHT003261
- 34Seal 05E103517D
- 35Seal Ring N90851401
Vehicle fitment table8
Europe (8)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Multivan | 2021- | 10 | 1 |
| Caddy Maxi Kombi | 2020-2024 | 10 | 1 |
| Leon style | 2019- | 10 | 1 |
| Golf 2.0 BlueMotion | 2019-2024 | 10 | 1 |
| Tiguan 2.0 4Motion | 2016-2024 | 10 | 1 |
| golf 2.0 | 2016-2020 | 10 | 1 |
| Leon ST Stylance | 2016-2020 | 10 | 1 |
| Golf Sportsvan 1.6 | 2014-2020 | 10 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Cylinder-Head Cover With Camshaft is fitted on: Multivan 2021-; Caddy Maxi Kombi 2020-2024; Leon style 2019-; Golf 2.0 BlueMotion 2019-2024; Tiguan 2.0 4Motion 2016-2024; golf 2.0 2016-2020; Leon ST Stylance 2016-2020; Golf Sportsvan 1.6 2014-2020.
