Product overview
Genuine OEM Audi Upper Engine Oil Sump, part number 04E103601P. This component is the upper section of the engine oil pan, designed to collect and hold engine oil for lubrication. It is mounted directly beneath the engine block. Weighing approximately 3.61 kg with dimensions of 44.5 cm length, 35 cm width, and 12 cm height. Choosing a genuine OEM oil sump ensures precise fitment, proper sealing surfaces, and durable construction to prevent leaks and maintain engine oil integrity.
Catalogue entry: OIL SUMP.
Fitted with: D176501A1 SEAL, 06L103801 BOLT, 04E103609 GASKET, N10725401 BOLT, N90500605 SCREW, 03C115721E UNION.
Technical details
- Category
- Engine
- Customs (HS) code
- 84099900
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 44.5 × 35 × 12 cm
- Shipping weight
- 3.61 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment

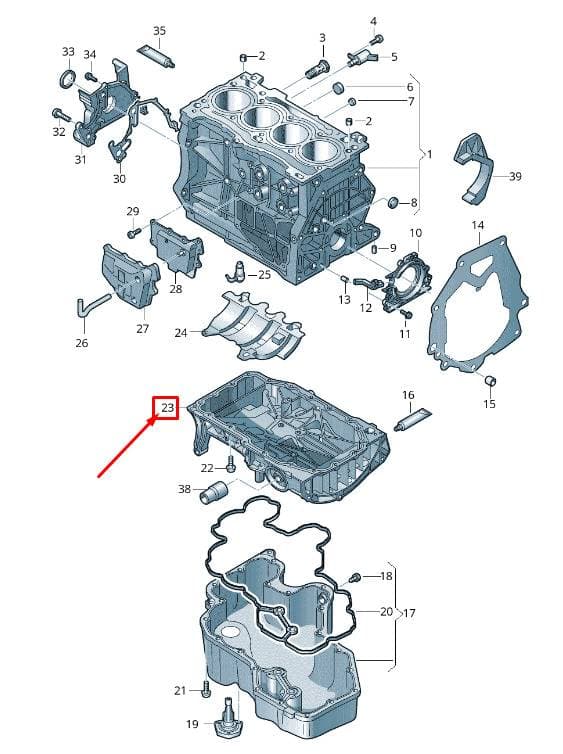

3 vehiclesEngine Oil Sump Upper Part — locate 04E103601P Audi Upper Engine Oil Sump | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly30
- 2Sleeve 03C103143
- 3Bolt N90813202
- 6Cover N0119173
- 7Cover N0119185
- 8Cover N0119098
- 9Part 026103139
- 10Flange 04E103170Q
- 10Flange 04E103170A
- 11Bolt N10653301
- 13Part N0432072
- 14Spacer Pl 04E103551AD
- 16Seal D176501A1
- 17Oil Sump 04E103600D
- 18Bolt 06L103801
- 20Gasket 04E103609
- 21Bolt N10725401
- 22Screw N90500605
- 24Lock 04E103623J
- 25Nozzle 04E103157C
- 26Hose 04E103493T
- 27Cover 04E103729
- 28Separator 04E103464AM
- 29Bolt N90737803
- 30Seal 04C103161D
- 31Flange 04E103153B
- 32Screw N10682501
- 33Seal 04C103085B
- 34Bolt N91108701
- 38Union 03C115721E
- 39Cover 04E103565
Vehicle fitment table3
Europe (2)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Audi A5 Sportback | 2016-2020 | 23 | 1 |
| audi a4 2.0 | 2015-2019 | 23 | 1 |
Other markets (1)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Audi A4L 2.0 | 2016- | 23 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
04E103601P Audi Upper Engine Oil Sump | Genuine OEM is fitted on: Audi A5 Sportback 2016-2020; audi a4 2.0 2015-2019; Audi A4L 2.0 2016-.
