04E103603AD Engine Oil Sump
- 04E103603ADThis pageNot stocked
May 2018 - 05E103603CCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SKODA is typically 3–8 business days before dispatch.
Handling time for Skoda: 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

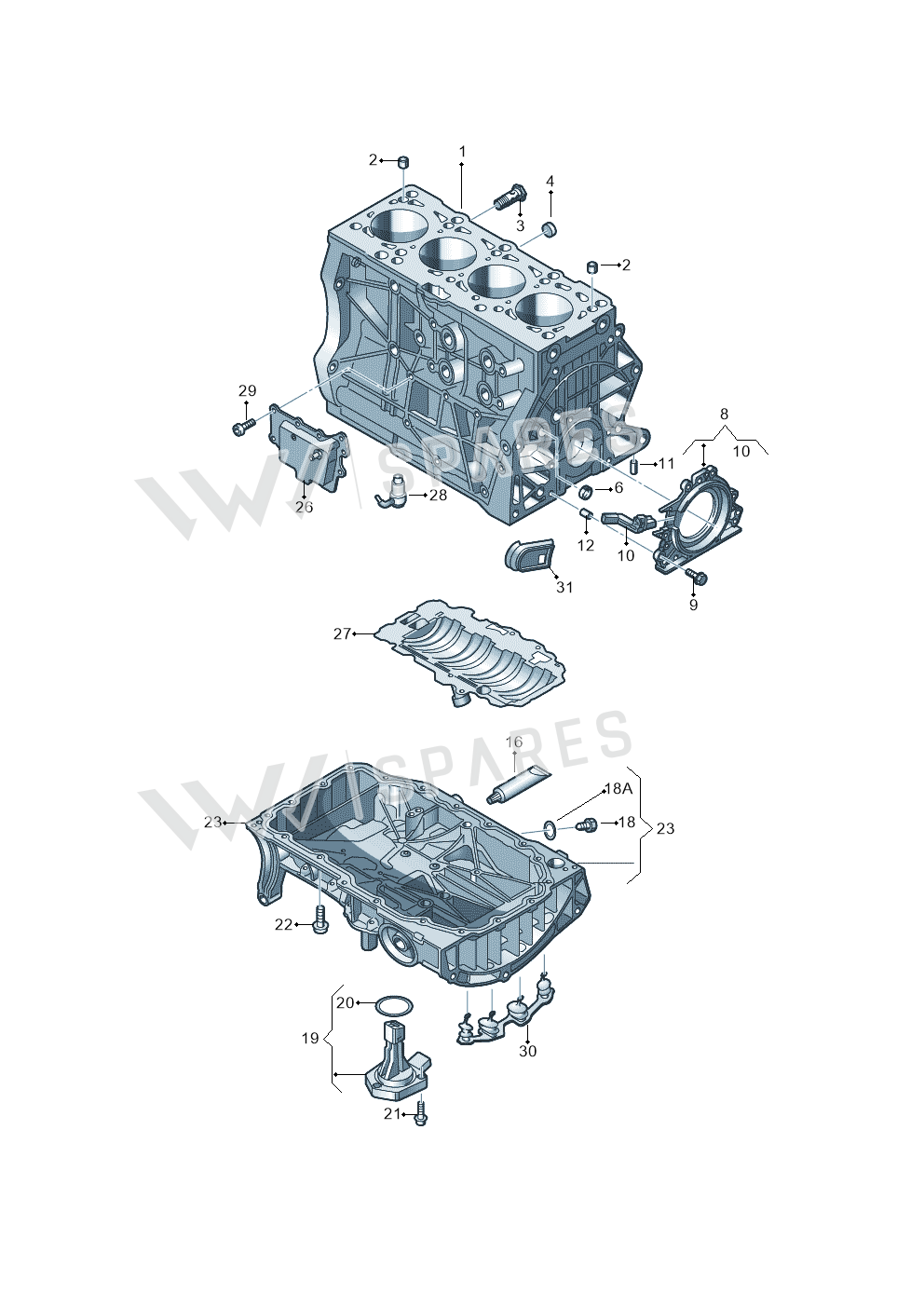

10 vehiclesEngine Oil Sump — locate Engine Oil Sump in the official exploded view and explore the surrounding assembly.
Parts in this assembly26
- 2Sleeve 04E103143A
- 3Bolt N90813202
- 4Cover N0119173
- 6Cover N0119098
- 8Flange 05E103170
- 8Flange 04C103170H
- 9Bolt N10653301
- 10Sender 04C906433
- 11Part 026103139
- 12Part N0432072
- 16Seal D176501A1
- 18Plug N90288901
- 18ASeal Ring N0138158
- 19Oel Sensor 04C907660A
- 20Seal Ring 038103196B
- 21Bolt N10622901
- 22Screw N90500605
- 23Oil Sump 05E103603C
- 26Separator 04E103464AD
- 26Separator 04E103464BH
- 27Lock 04E103623N
- 27Lock 04E103623T
- 28Vent 04E103157E
- 29Bolt N10124309
- 30Bungs 04E103033D
- 31Bungs 04E103037
Vehicle fitment table10
Europe (10)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Arona FR | 2017- | 23 | 1 | |
| Ibiza FR | 2017- | 23 | 1 | |
| T-Roc BlueMotion | 2017-2024 | 23 | 1 | |
| Arteon | 2017-2023 | 23 | 1 | |
| Karoq | 2017-2022 | 23 | 1 | |
| Octavia | 2017-2020 | 23 | 1 | |
| golf 2.0 | 2016-2020 | 23 | 1 | 0K0 |
| Audi A3 Sportback | 2016-2020 | 23 | 1 | |
| Audi A3 Cabrio | 2016-2020 | 23 | 1 | |
| Golf Sportsvan 1.6 | 2014-2020 | 23 | 1 | 0K0 |
Diagrams & fitment data powered by oemdiagrams.com
Engine Oil Sump is fitted on: Arona FR 2017-; Ibiza FR 2017-; T-Roc BlueMotion 2017-2024; Arteon 2017-2023; Karoq 2017-2022; Octavia 2017-2020; golf 2.0 2016-2020; Audi A3 Sportback 2016-2020; Audi A3 Cabrio 2016-2020; Golf Sportsvan 1.6 2014-2020.
