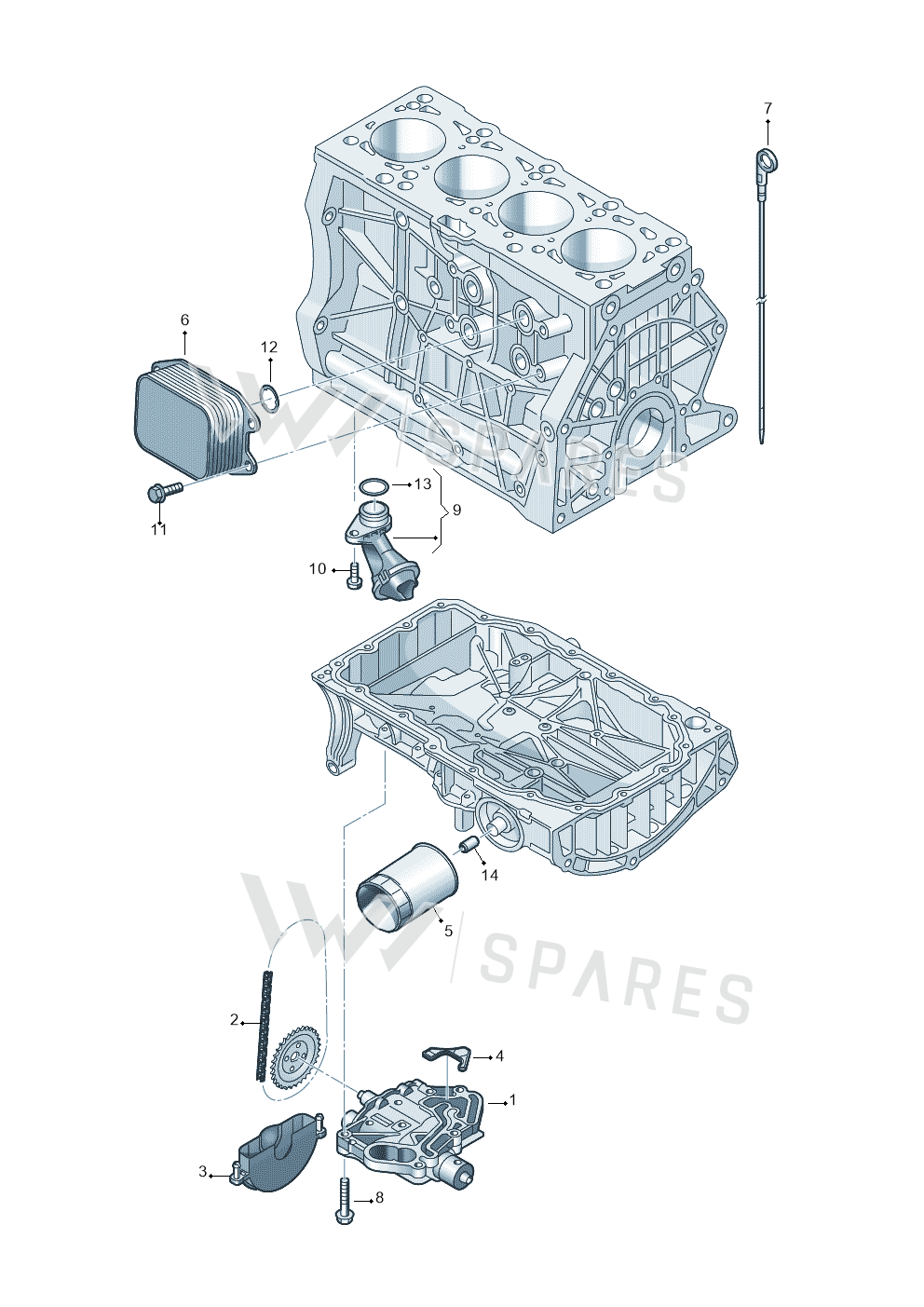

Suction Line exploded parts diagram — Octavia · 2012-2017, position 9 — Octavia · 2012-2017 · position 9Full diagram ↓

04E115251E

04E115251E Suction Line

Name: 04E115251E Suction Line
Brand: Audi
SKU: 04E115251E
Price: 14.3 GBP
Availability: Discontinued

£14.30

£11.82 excl. VAT

Supersession roadoldest to newest

04E115251E
Not stocked May 2016
You are here
04E115251P
Current number

04E115251EThis pageNot stocked
May 2016
04E115251PCurrent number

Current part number04E115251PWhat the manufacturer supplies todayOrder

Availability: No longer supplied under this number

Quantity:

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Genuine OEM Parts

Direct from manufacturer

Secure Ordering

Safe and protected checkout

Parts diagram & fitment

5 vehicles

Suction Line — locate Suction Line in the official exploded view and explore the surrounding assembly.

Parts in this assembly18

Vehicle fitment table5

Europe (5)

Vehicle	Years	Pos.	Qty	PR
Octavia	2012-2017	9	1
Audi A3 Sportback	2012-2016	9	1
Leon ST Stylance	2012-2016	9	1
Polo	2012-2014	9	1	DF6
jetta	2010-2014	9	1
