04E115611L Oil Dipstick
- 04E115611CNot stocked
Mar 2012 - 04E115611LThis pageNot stocked
Jul 2018 - 04E115611DNot stocked
May 2015 - 04E115611ACCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

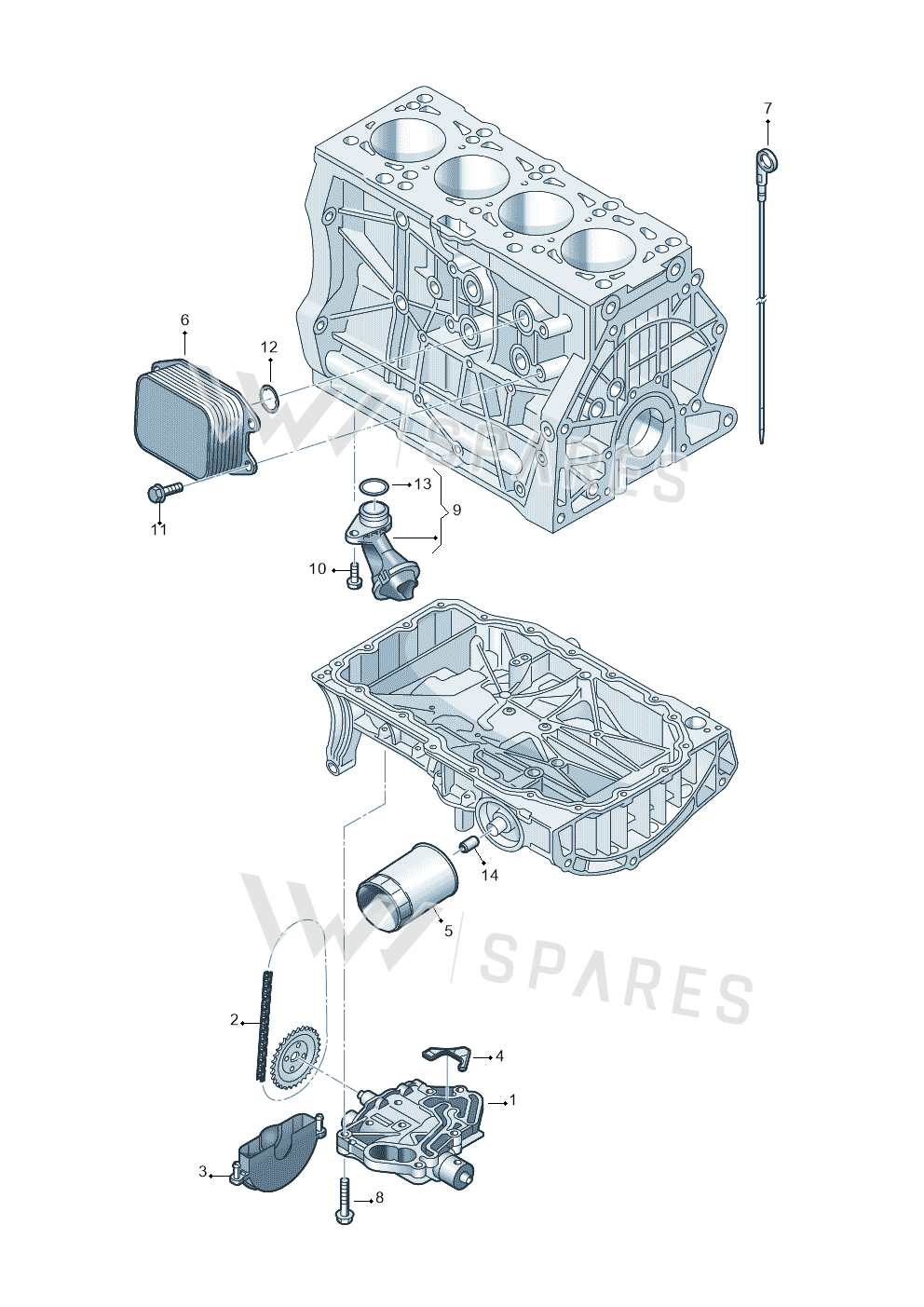

1 vehicleOil Dipstick — locate Oil Dipstick in the official exploded view and explore the surrounding assembly.
Parts in this assembly18
- 1Oil Pump 04E115103AE
- 2Chain 04E115225E
- 3Cover 04E103669C
- 4Strainer 04E115175A
- 5Oil Filter 04E115561H
- 5Oil Filter 04E115561T
- 6Oil Cooler 04E117021C
- 6Oil Cooler 04E117021B
- 7Oil Dipsti 04E115611AC
- 7Oil Dipsti 04E115611E
- 8Bolt N10655402
- 9Pipe 04E115251P
- 9Pipe 04E115251E
- 10Bolt N10196103
- 11Bolt N10653301
- 12Seal Ring 04E115111D
- 13Seal Ring N0282222
- 14Union 03C115721D
Vehicle fitment table1
Europe (1)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| Leon ST Stylance | 2012-2016 | 7 | 1 | CMBA,CHPA, |
Diagrams & fitment data powered by oemdiagrams.com
Oil Dipstick is fitted on: Leon ST Stylance 2012-2016.
