04E130241AA Pressure Pipe
- 04E130241BNot stocked
Dec 2012 - 04E130241DNot stocked
Feb 2016 - 04E130241AAThis pageNot stocked
May 2017 - 04E130241AQCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

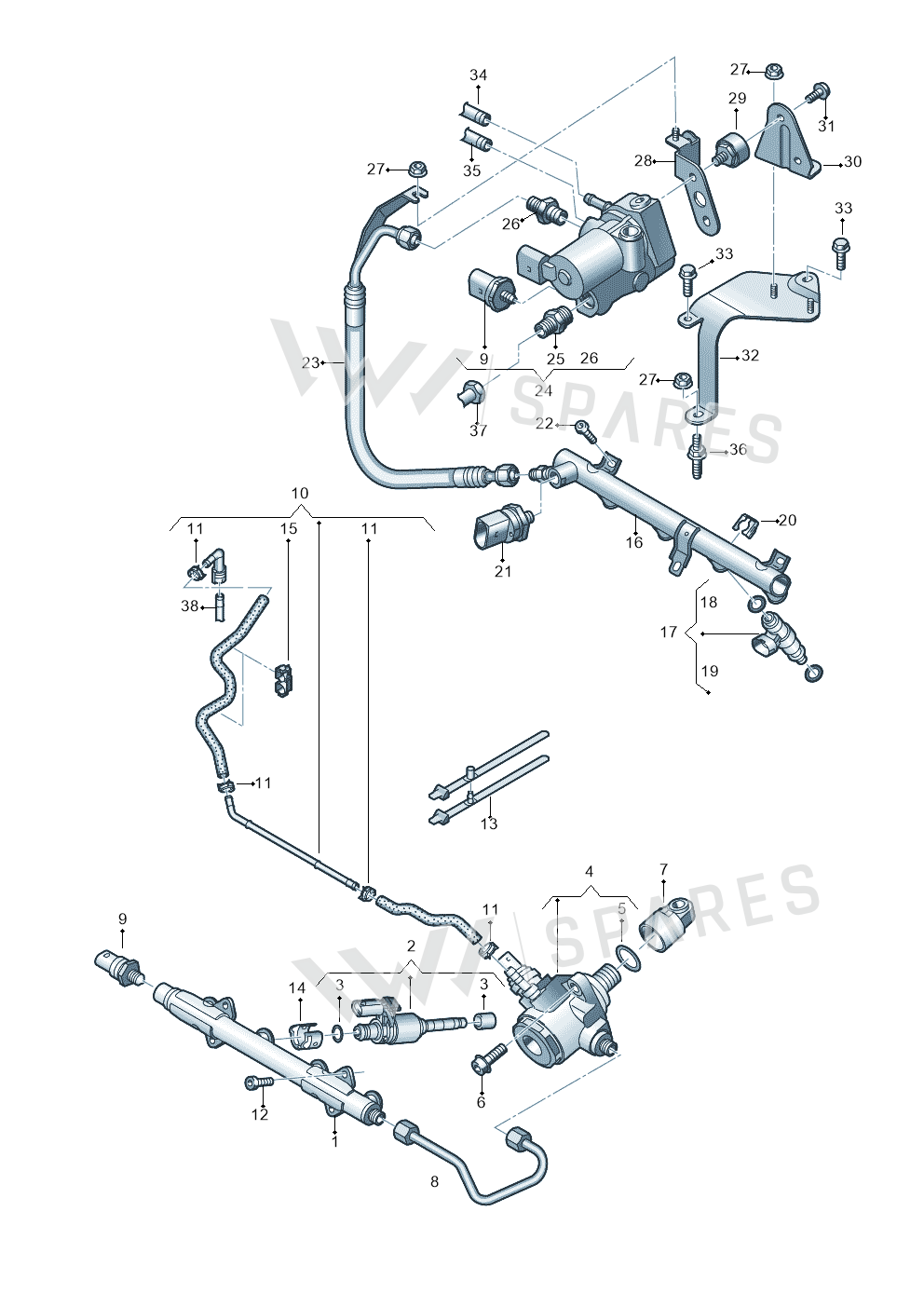

13 vehiclesPressure Pipe — locate Pressure Pipe in the official exploded view and explore the surrounding assembly.
Parts in this assembly35
- 1Rail 04E133320D
- 2Valve 04E906036Q
- 3Part 04E998907A
- 3Part 06H998907A
- 4Pump 04E127026AG
- 5Seal Ring WHT005184
- 6Screw N91128701
- 7Tappets 06L109311
- 9Sensor 06J906051F
- 10Fuel Line 04E133723N
- 11Clamp N91020301
- 12Screw N10546403
- 13Binder 4A0820199
- 14Support Element 04E133036A
- 15Bracket 5Q0133687C
- 16Rail 04E133317F
- 17Gas Valve 03C906039A
- 17Gas Valve 03C906039B
- 18Seal Ring 07C906149
- 19Seal Ring 06A906149B
- 20Clip 06A133047A
- 21Sensor 04E906054
- 21Sensor 04E906054B
- 22Bolt WHT002603
- 23Fuel Line 5Q0133321C
- 24Regulator 1S0906011B
- 25Insert 1S0201287A
- 26Connection 2K0201287A
- 27Collar Nut N01508210
- 28Bracket 5Q0133687H
- 29Rubber Bush 1T0959209
- 30Retaining 5Q0906109C
- 31Bolt N10680303
- 32Retaining 5Q0906109D
- 33Bolt N10653301
Vehicle fitment table13
Europe (13)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Audi A3 Sportback | 2016-2020 | 8 | 1 | ||
| Ibiza Stylance | 2015- | 8 | 1 | ||
| Toledo Reference | 2015-2019 | 8 | 1 | ||
| fabia | 2014-2022 | 8 | 1 | TP1 | |
| Golf 1.4 BlueMotion | 2014-2017 | 8 | 1 | ||
| jetta | 2014-2017 | 8 | 1 | ||
| Golf Estate 1.4 | 2014-2017 | 8 | 1 | ||
| Golf Estate | 2013-2017 | 8 | 1 | ||
| Rapid | 2012-2022 | 8 | 1 | TP1 | |
| Golf 1.4 BlueMotion | 2012-2017 | 8 | 1 | ||
| Octavia | 2012-2017 | 8 | 1 | PR:TL1+DF6 | DF6 |
| Leon ST Stylance | 2012-2016 | 8 | 1 | D | |
| Audi A3 Sportback | 2012-2016 | 8 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Pressure Pipe is fitted on: Audi A3 Sportback 2016-2020; Ibiza Stylance 2015-; Toledo Reference 2015-2019; fabia 2014-2022; Golf 1.4 BlueMotion 2014-2017; jetta 2014-2017; Golf Estate 1.4 2014-2017; Golf Estate 2013-2017; Rapid 2012-2022; Golf 1.4 BlueMotion 2012-2017; Octavia 2012-2017; Leon ST Stylance 2012-2016; Audi A3 Sportback 2012-2016.
