04E133317E Fuel Rail
- 04E133317EThis pageNot stocked
Nov 2015 - 04E133317FCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

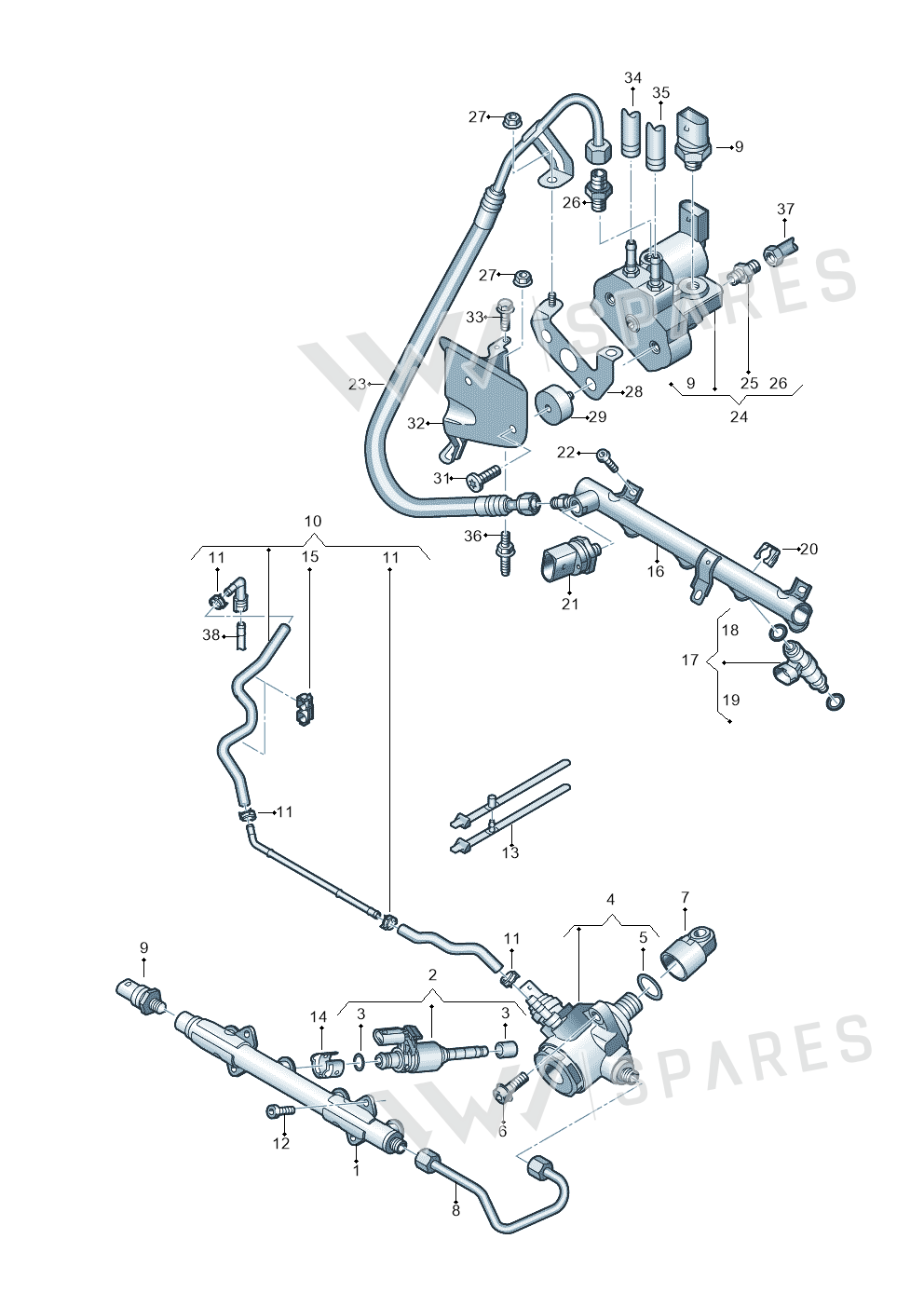

6 vehiclesFuel Rail — locate Fuel Rail in the official exploded view and explore the surrounding assembly.
Parts in this assembly33
- 1Rail 04E133320D
- 2Valve 04E906036Q
- 3Repair Kit 04E998907A
- 4Pump 04E127026AG
- 5Seal Ring WHT005184
- 6Screw N91128701
- 7Tappets 06L109311
- 8Pipe 04E130241AQ
- 9Sensor 06J906051F
- 10Fuel Line 04E133723CR
- 11Clamp N91020301
- 12Screw N10546403
- 13Binder 4A0820199
- 14Support Element 04E133036A
- 15Bracket 5Q0133687C
- 16Rail 04E133317F
- 16Rail 04E133317G
- 17Gas Valve 03C906039B
- 18Seal Ring 07C906149
- 19Seal Ring 06A906149B
- 20Clip 06A133047A
- 21Sensor 04E906054B
- 22Bolt WHT002603
- 23Fuel Line 2K0133321F
- 24Regulator 1S0906011B
- 25Insert 1S0201287A
- 26Connection 2K0201287A
- 27Collar Nut N01508210
- 28Bracket 1S0133687A
- 29Rubber Bush 1T0959209
- 31Bolt N10680303
- 32Retaining 2K0906109
- 33Bolt N10653301
Vehicle fitment table6
Europe (6)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| caddy kombi | 2015-2020 | 16 | 1 |
| Golf Estate | 2013-2017 | 16 | 1 |
| Golf 1.4 BlueMotion | 2012-2017 | 16 | 1 |
| Octavia | 2012-2017 | 16 | 1 |
| Audi A3 Sportback | 2012-2016 | 16 | 1 |
| Leon ST Stylance | 2012-2016 | 16 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Fuel Rail is fitted on: caddy kombi 2015-2020; Golf Estate 2013-2017; Golf 1.4 BlueMotion 2012-2017; Octavia 2012-2017; Audi A3 Sportback 2012-2016; Leon ST Stylance 2012-2016.
