Target · Diagram
Find this reference above

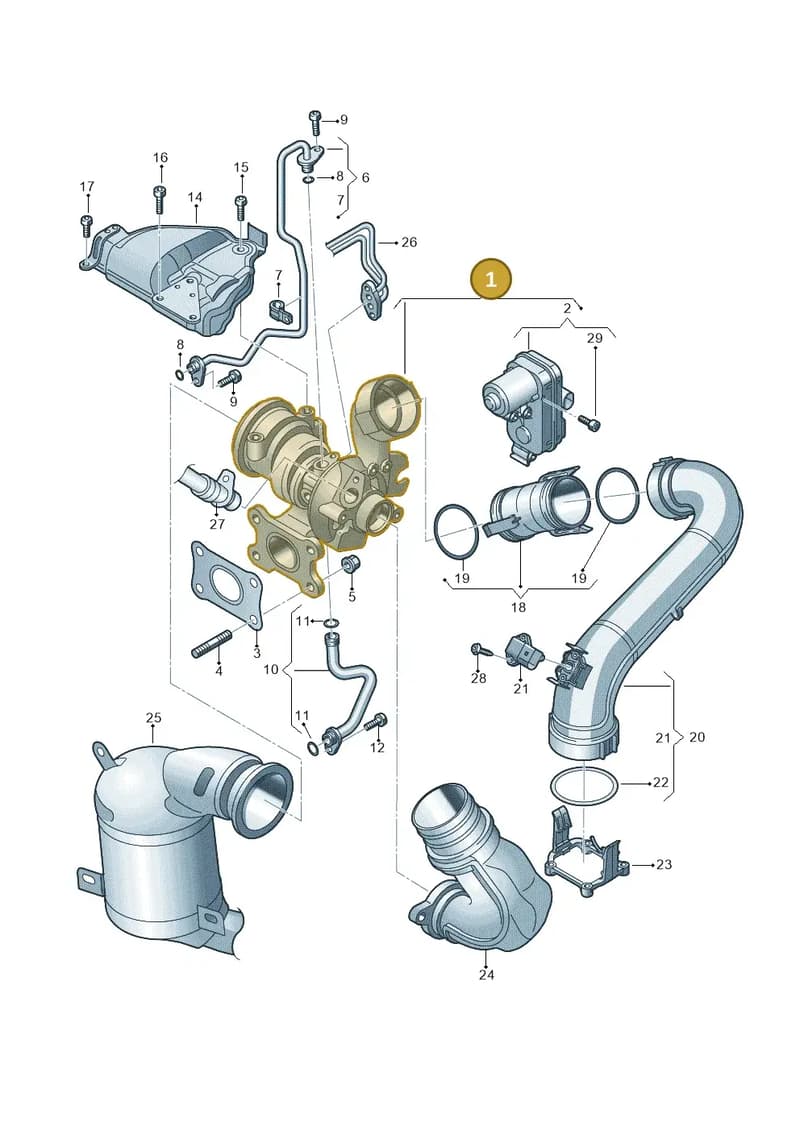

Number 1 marks the part’s position in this exploded view (SEAT Tarraco (2018-2024)).
Other diagrams in the gallery may use a different number for the same part.
Product overview
Genuine OEM Volkswagen Exhaust Manifold with Turbocharger, part number 04E145722GX. Fits Volkswagen Tiguan (2017), SEAT Tarraco (2018-2024), Skoda Kodiaq (2016-2024). Shown as position 1 in the engine diagram 884145220.
Catalogue entry: TURBO.
Fitted with: 04E145722G TURBO, 04E253039D SEAL, WHT000001N COLLAR NUT, WHT006990A seal ring, N10405604 BOLT, WHT005363 seal ring, WHT005363A seal ring, WHT001386 SEAL.
Technical details
- Category
- Intake & Turbo
- Diagram sheet
- SEAT 884145220, position 1
- ETKA group
- 1 / 45 (145)
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
- Engine codes
- CZDA, CZEA
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
6 vehiclesExhaust Manifold With Turbocharger — locate 04E145722GX Volkswagen Exhaust Manifold with Turbocharger in the official exploded view and explore the surrounding assembly.
Parts in this assembly25
- 1Turbo 04E145722G
- 2Repair Kit 04E198725K
- 3Seal 04E253039D
- 4Bolt N91200201
- 5Collar Nut WHT000001N
- 6Pipe 04E145140AE
- 7Clamp 04E145807
- 8Seal Ring WHT006990A
- 8Seal Ring WHT006990
- 9Bolt N10405604
- 10Oil Line 04E145735AC
- 10Oil Line 04E145735C
- 11Seal Ring WHT005363A
- 11Seal Ring WHT005363
- 14Plate 04E253041F
- 15Bolt N10653201
- 16Screw N91187801
- 18Bracket 04E145875F
- 19Seal WHT001386
- 20Pipe 04E145673E
- 21Sensor 04E906051
- 22Seal Ring WHT003247
- 23Part 03F145853A
- 28Screw N10507201
- 29Screw N10510301
Vehicle fitment table6
Europe (4)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Tarraco FR | 2018-2024 | 1 | 1 |
| Kodiaq | 2018-2022 | 1 | 1 |
| Tiguan 2.0 4Motion | 2017-2024 | 1 | 1 |
| Kodiaq | 2016-2024 | 1 | 1 |
Other markets (2)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Jetta 1.4 | 2017-2024 | 1 | 1 |
| POLO HATCH "ZA"06> | 2005- | 1 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
04E145722GX Volkswagen Exhaust Manifold with Turbocharger is fitted on: Tarraco FR 2018-2024; Kodiaq 2018-2022; Tiguan 2.0 4Motion 2017-2024; Kodiaq 2016-2024; Jetta 1.4 2017-2024; POLO HATCH "ZA"06> 2005-.
