04L103603B Oil Sump
- 04L103603BThis pageNot stocked
Nov 2015 - 04L103601PCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

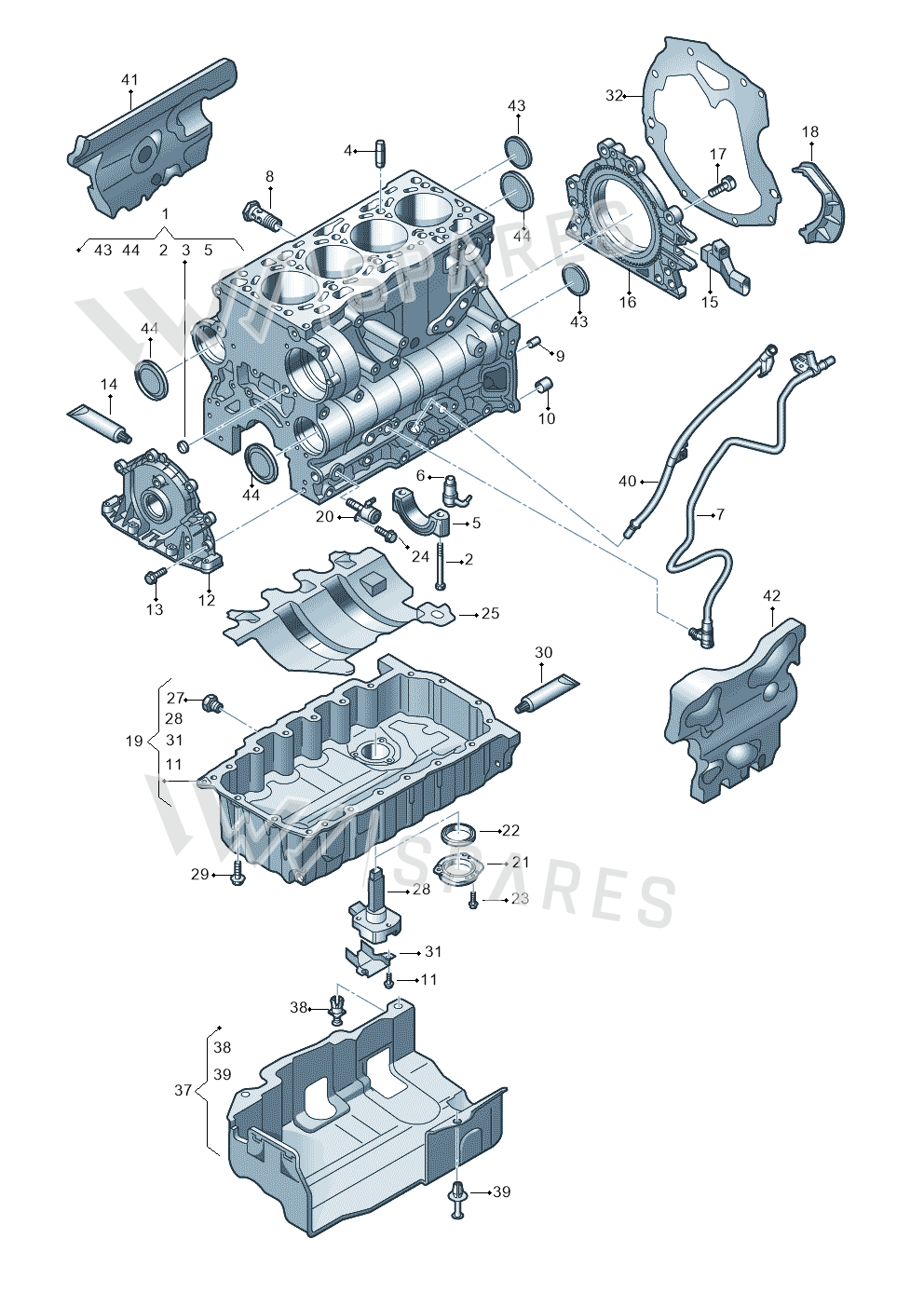

6 vehiclesOil Sump — locate Oil Sump in the official exploded view and explore the surrounding assembly.
Parts in this assembly30
- 2Bolt WHT008383
- 3Cover N01190710
- 4Part WHT006540
- 6Vent 038103157B
- 7Hose 04L129456D
- 9Part N0432072
- 10Sleeve 022103139B
- 11Bolt N91068001
- 12Part 04L103151A
- 13Bolt N90945002
- 14Seal D176501A1
- 16Flange 04L103170E
- 20Valve 04L906455A
- 21Cover 03G103707
- 22Seal Ring 038103196
- 23Screw N91065201
- 25Lock 04L103623F
- 27Bolt N90813202
- 28Oel Sensor 07P907660
- 29Bolt N90628303
- 29Bolt N90735604
- 31Cover 06B907667
- 32Cover 04L103647A
- 37Cover 04L103660F
- 38Spring Rivet 03L863788A
- 39Spring Rivet 04L863788
- 41Insulation 04L103954G
- 42Insulation 04L103954F
- 43Cover 04L103113
- 44Cover 04L103113A
Vehicle fitment table6
Europe (6)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Audi Q5 qu. 2.0 TDI | 2012-2017 | 19 | 1 | |
| Audi A5 Sportback | 2011-2017 | 19 | 1 | TD1 |
| Audi A5 Cabrio 2.0 | 2011-2017 | 19 | 1 | TD1 |
| audi a4 av. 2.0 tdi | 2011-2015 | 19 | 1 | TD1 |
| audi a6 2.0 tdi | 2010-2015 | 19 | 1 | TD1 |
| Audi A4 Av. Allroad | 2008-2016 | 19 | 1 | TD1 |
Diagrams & fitment data powered by oemdiagrams.com
Oil Sump is fitted on: Audi Q5 qu. 2.0 TDI 2012-2017; Audi A5 Sportback 2011-2017; Audi A5 Cabrio 2.0 2011-2017; audi a4 av. 2.0 tdi 2011-2015; audi a6 2.0 tdi 2010-2015; Audi A4 Av. Allroad 2008-2016.
