Product overview

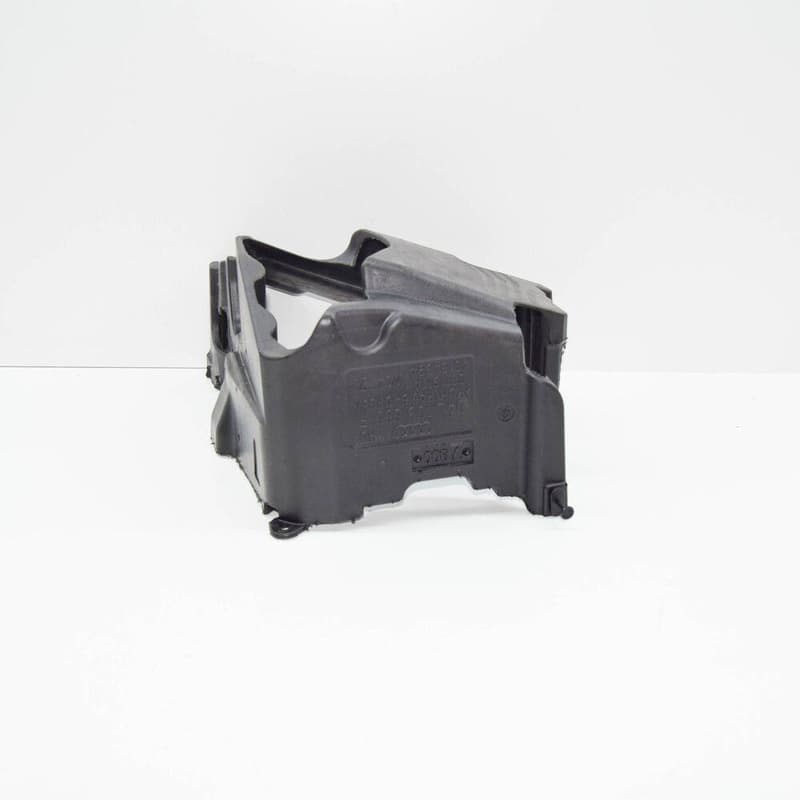

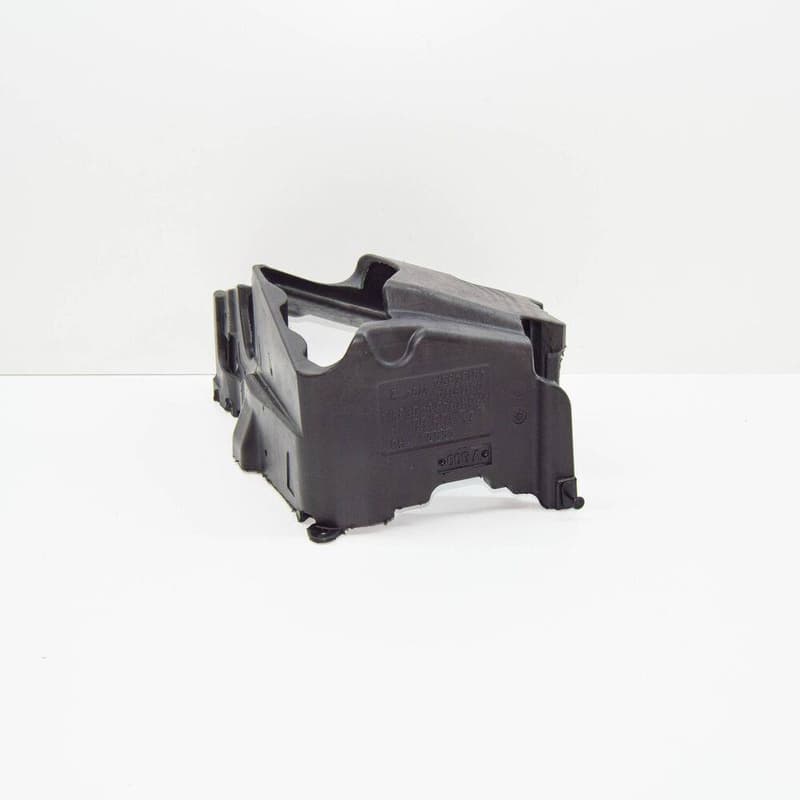

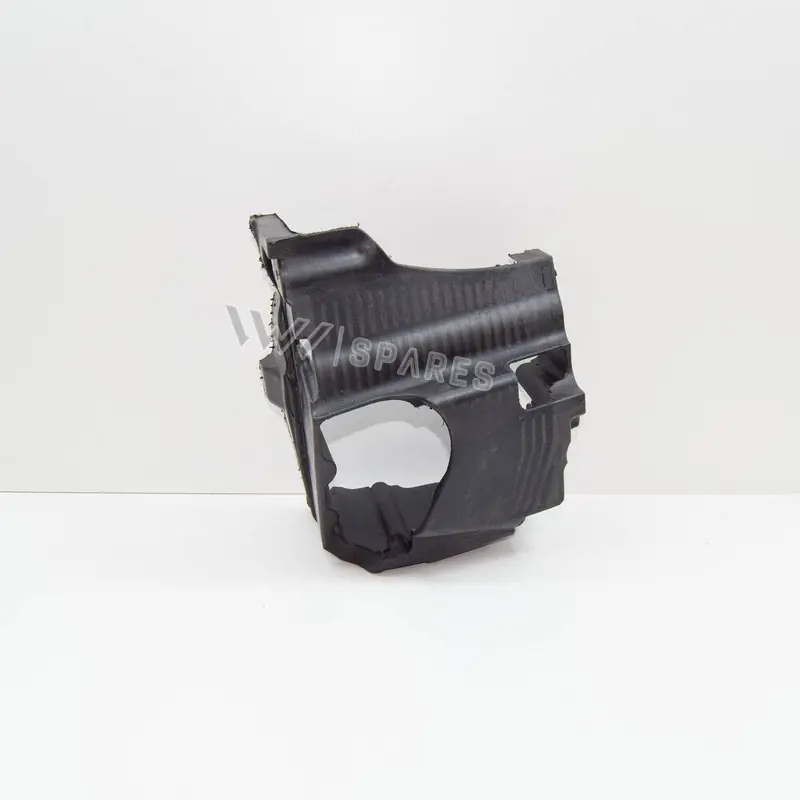

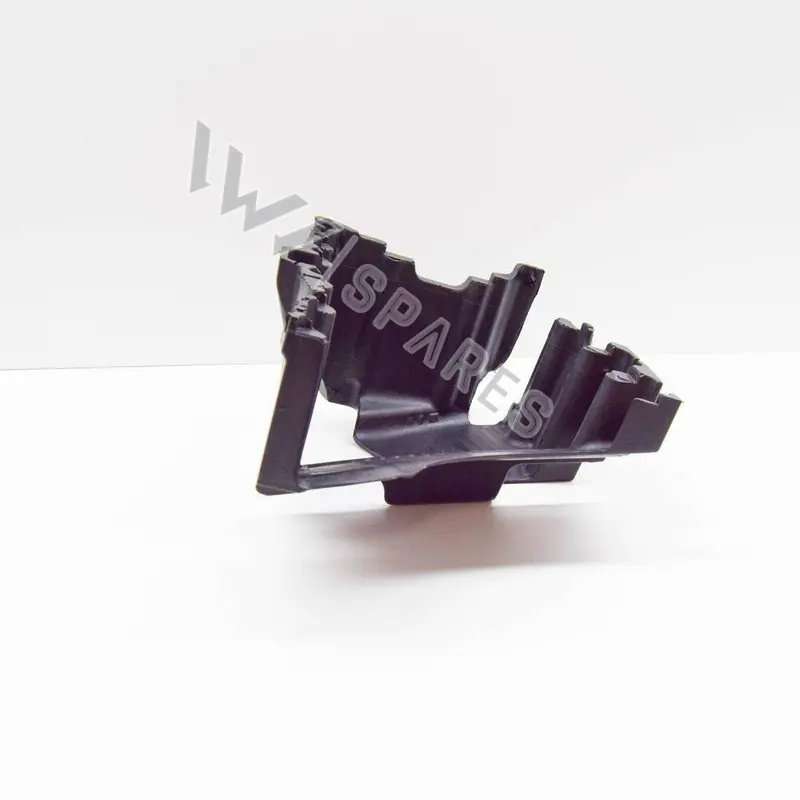

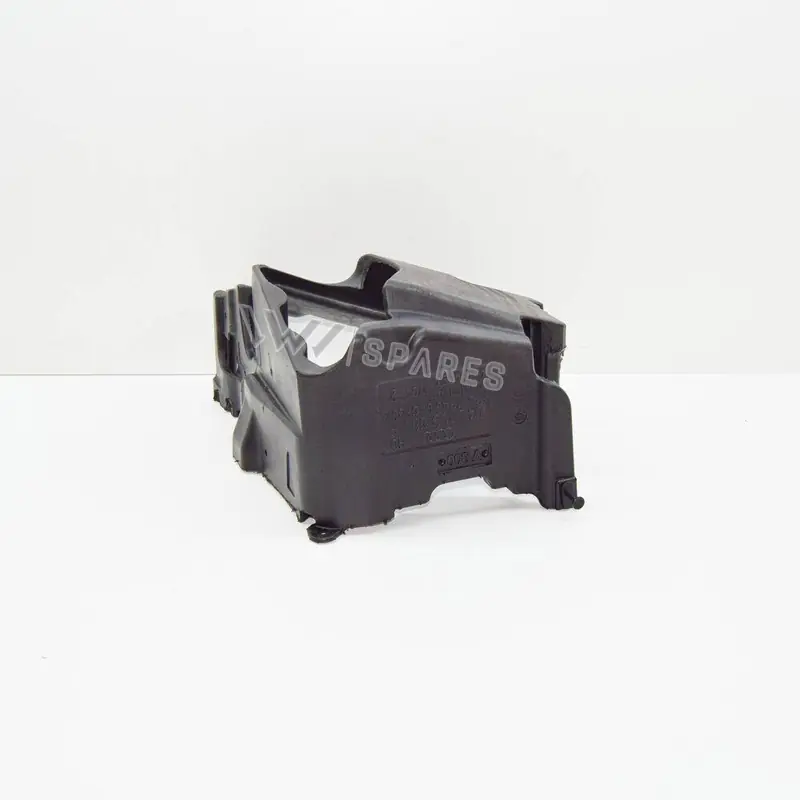

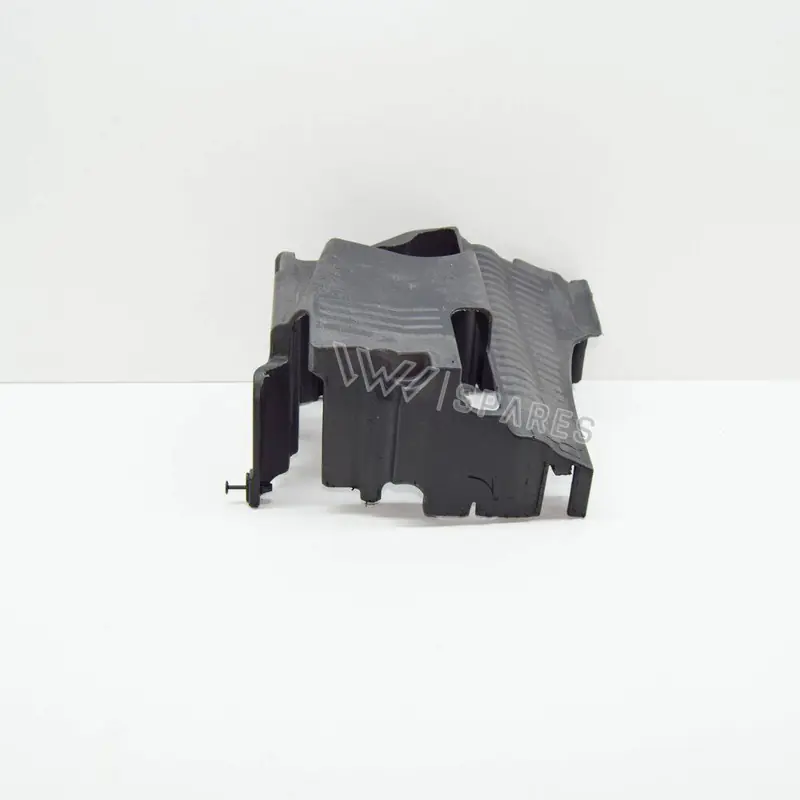

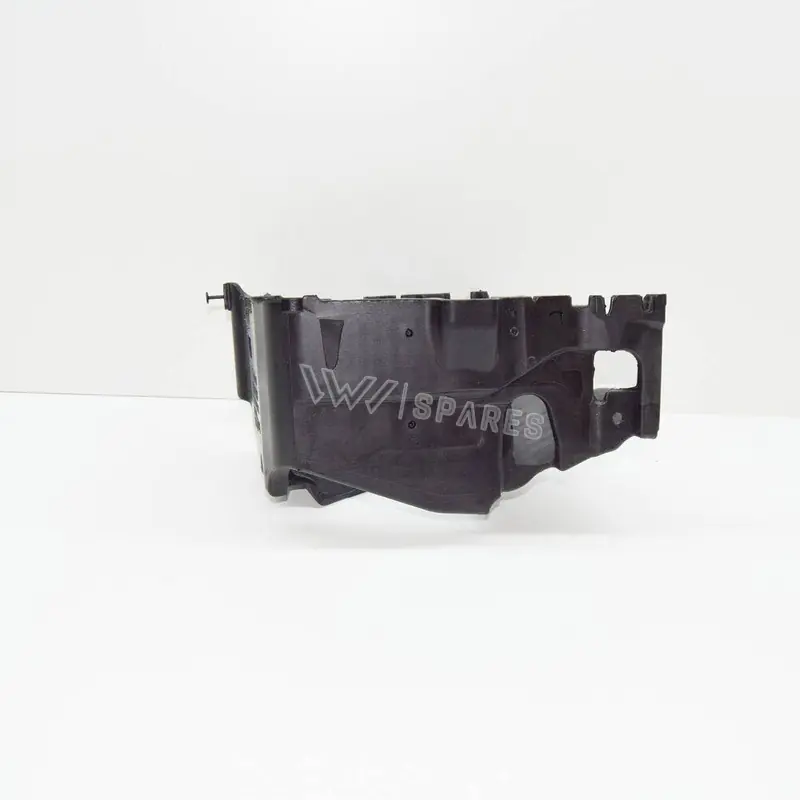

Genuine OEM Audi Engine Oil Sump Cover, part number 04L103660F. This cover is designed to protect the engine oil sump from impacts, debris, and environmental elements. It sits underneath the engine, shielding the oil pan. Made from durable plastic, it offers robust protection without adding significant weight. Choosing a genuine OEM cover ensures precise fitment and the same level of protection as the original factory component, crucial for long-term engine health.
Catalogue entry: COVER.
Technical details
- Category
- Engine
- Customs (HS) code
- 84099900
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 31 × 25.5 × 19 cm
- Shipping weight
- 0.43 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
Equipment codes
- TD1
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
7 vehiclesCover For Oil Sump — locate 04L103660F Audi Engine Oil Sump Cover | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly30
- 2Bolt WHT008383
- 3Cover N01190710
- 4Part WHT006540
- 6Vent 038103157B
- 7Hose 04L129456D
- 9Part N0432072
- 10Sleeve 022103139B
- 11Bolt N91068001
- 12Part 04L103151A
- 13Bolt N90945002
- 14Seal D176501A1
- 16Flange 04L103170E
- 19Oil Sump 04L103603B
- 20Valve 04L906455A
- 21Cover 03G103707
- 22Seal Ring 038103196
- 23Screw N91065201
- 25Lock 04L103623F
- 27Bolt N90813202
- 28Oel Sensor 07P907660
- 29Bolt N90628303
- 29Bolt N90735604
- 31Cover 06B907667
- 32Cover 04L103647A
- 38Spring Rivet 03L863788A
- 39Spring Rivet 04L863788
- 41Insulation 04L103954G
- 42Insulation 04L103954F
- 43Cover 04L103113
- 44Cover 04L103113A
Compatible / alternative parts(12)
Vehicle fitment table7
Europe (7)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| audi a6 qu. 3.0 tdi | 2014-2018 | 37 | 1 | TD1 |
| Audi Q5 qu. 2.0 TDI | 2012-2017 | 37 | 1 | |
| Audi A5 Sportback | 2011-2017 | 37 | 1 | TD1 |
| Audi A5 Cabrio 2.0 | 2011-2017 | 37 | 1 | TD1 |
| audi a4 av. 2.0 tdi | 2011-2015 | 37 | 1 | TD1 |
| audi a6 2.0 tdi | 2010-2015 | 37 | 1 | TD1 |
| Audi A4 Av. Allroad | 2008-2016 | 37 | 1 | TD1 |
Diagrams & fitment data powered by oemdiagrams.com
04L103660F Audi Engine Oil Sump Cover | Genuine OEM is fitted on: audi a6 qu. 3.0 tdi 2014-2018; Audi Q5 qu. 2.0 TDI 2012-2017; Audi A5 Sportback 2011-2017; Audi A5 Cabrio 2.0 2011-2017; audi a4 av. 2.0 tdi 2011-2015; audi a6 2.0 tdi 2010-2015; Audi A4 Av. Allroad 2008-2016.
