04L130235B Return Line
- 04L130235BThis pageNot stocked
Mar 2020 - 04L130235TCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SKODA is typically 3–8 business days before dispatch.
Handling time for Skoda: 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

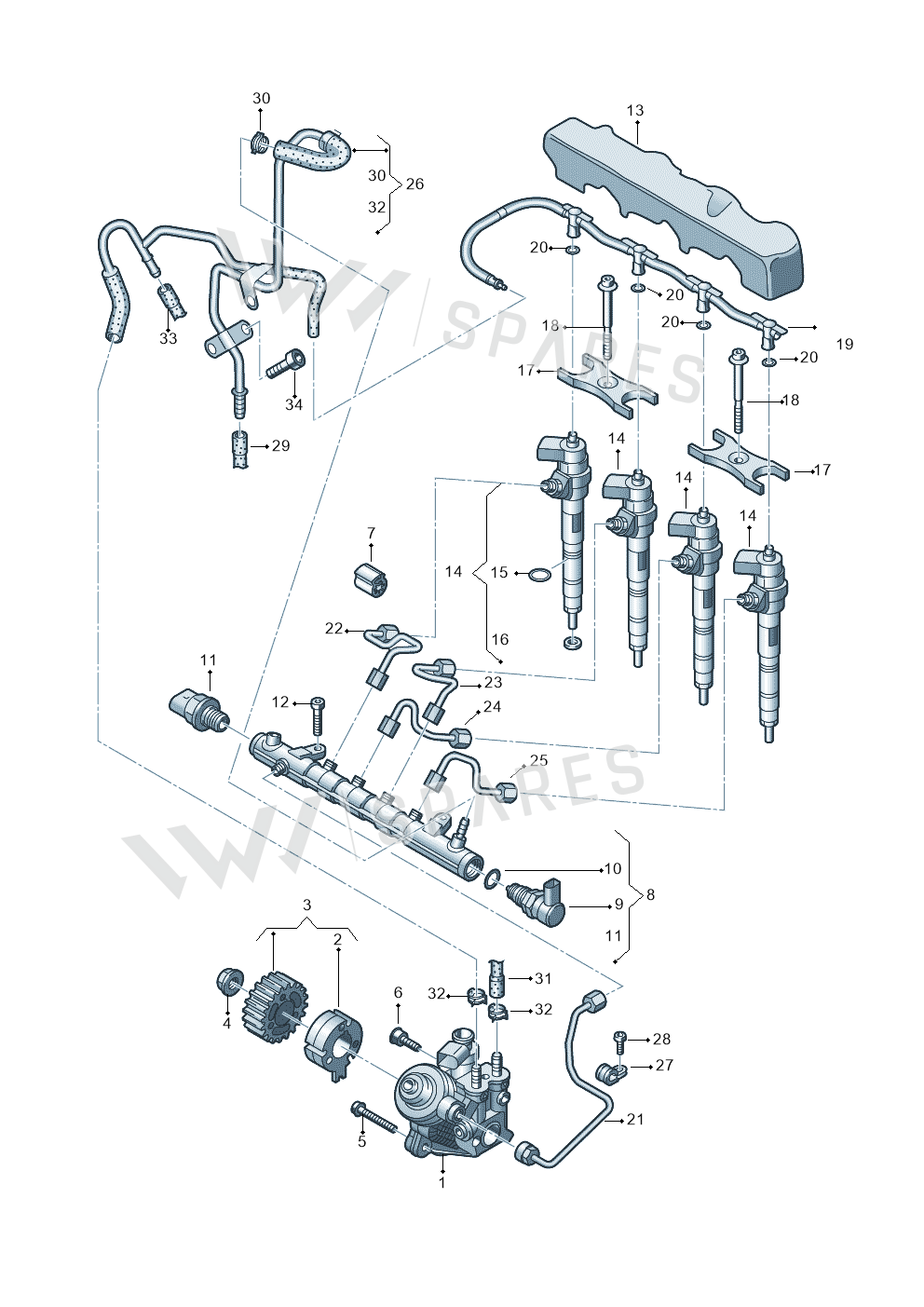

20 vehiclesReturn Line — locate Return Line in the official exploded view and explore the surrounding assembly.
Parts in this assembly48
- 1Pump 04B130755E
- 1Pump 04B130755F
- 1Pump 04B130755H
- 1Pump 04B130755HX
- 1Pump 04L130755E
- 1Pump 04L130755D
- 3Pulley 04L130101
- 3Pulley 04L130101C
- 4Collar Nut WHT002244
- 5Screw N10714501
- 6Bolt N10665001
- 7Damper 03L130118
- 8Rail 04L130089B
- 8Rail 04L130089D
- 8Rail 04L130089F
- 8Rail 04L130089G
- 9Valve 04L130764B
- 9Valve 04L130764C
- 9Valve 057130764AB
- 10Seal Ring WHT004740A
- 10Seal Ring N90451902
- 10Seal Ring WHT008239
- 11Sensor 04L906054
- 12Screw N91128701
- 13Insulation 04L130380F
- 13Bump Strip 04L130380
- 14Injector 04L130277AD
- 14Injector 04L130277AJ
- 14Injector 04L130277D
- 14Injector 04L130277AA
- 14Injector 04L130277AC
- 14Injector 04L130277AE
- 14Injector 04L130277AK
- 15Seal Ring WHT000884
- 16Part 03P130519
- 16Part 059130519
- 17Clamp Piec 03L130216
- 17Clamp Piec 04L130216
- 18Screw WHT005490
- 18Screw WHT005478
- 19Pipe 04L130235G
- 19Pipe 04L130235J
- 19Pipe 04L130235N
- 20Seal Ring WHT007480
- 20Seal Ring WHT006497
- 20Seal Ring WHT006497A
- 21Pipe 04L130321
- 21Pipe 04L130321E
Vehicle fitment table20
Europe (20)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Kamiq | 2019- | 19 | 1 | ||
| T-Cross 1,0 | 2018-2024 | 19 | 1 | ||
| Arona FR | 2017- | 19 | 1 | ||
| Ibiza FR | 2017- | 19 | 1 | ||
| T-Roc BlueMotion | 2017-2024 | 19 | 1 | ||
| Polo 1.0 BlueMotion | 2017-2024 | 19 | 1 | ||
| Karoq | 2017-2022 | 19 | 1 | TJ1 | |
| Octavia | 2017-2020 | 19 | 20 | PR | |
| Ateca Style | 2016- | 19 | 1 | ||
| golf 2.0 | 2016-2020 | 19 | 1 | ||
| Audi A3 Sportback | 2016-2020 | 19 | D | ||
| Audi A3 Cabrio | 2016-2020 | 19 | D | ||
| Leon ST Stylance | 2016-2020 | 19 | 1 | PR:7MM+FM0, | |
| Audi Q2 2.0 TDI | 2016-2018 | 19 | |||
| Golf Sportsvan 1.6 | 2014-2020 | 19 | |||
| Golf Estate | 2013-2017 | 19 | |||
| Audi A3 Cab. 1.4 | 2013-2016 | 19 | |||
| Golf 1.4 BlueMotion | 2012-2017 | 19 | |||
| Octavia | 2012-2017 | 19 | |||
| Audi A3 Sportback | 2012-2016 | 19 | 20 |
Diagrams & fitment data powered by oemdiagrams.com
Return Line is fitted on: Kamiq 2019-; T-Cross 1,0 2018-2024; Arona FR 2017-; Ibiza FR 2017-; T-Roc BlueMotion 2017-2024; Polo 1.0 BlueMotion 2017-2024; Karoq 2017-2022; Octavia 2017-2020; Ateca Style 2016-; golf 2.0 2016-2020; Audi A3 Sportback 2016-2020; Audi A3 Cabrio 2016-2020; Leon ST Stylance 2016-2020; Audi Q2 2.0 TDI 2016-2018; Golf Sportsvan 1.6 2014-2020; Golf Estate 2013-2017; Audi A3 Cab. 1.4 2013-2016; Golf 1.4 BlueMotion 2012-2017; Octavia 2012-2017; Audi A3 Sportback 2012-2016.
