Product overview

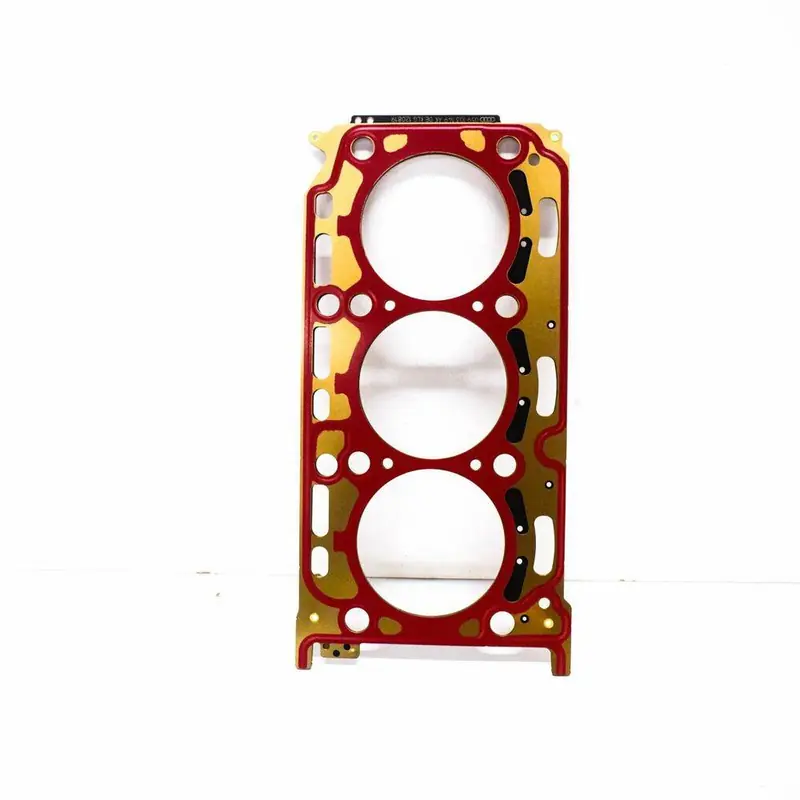

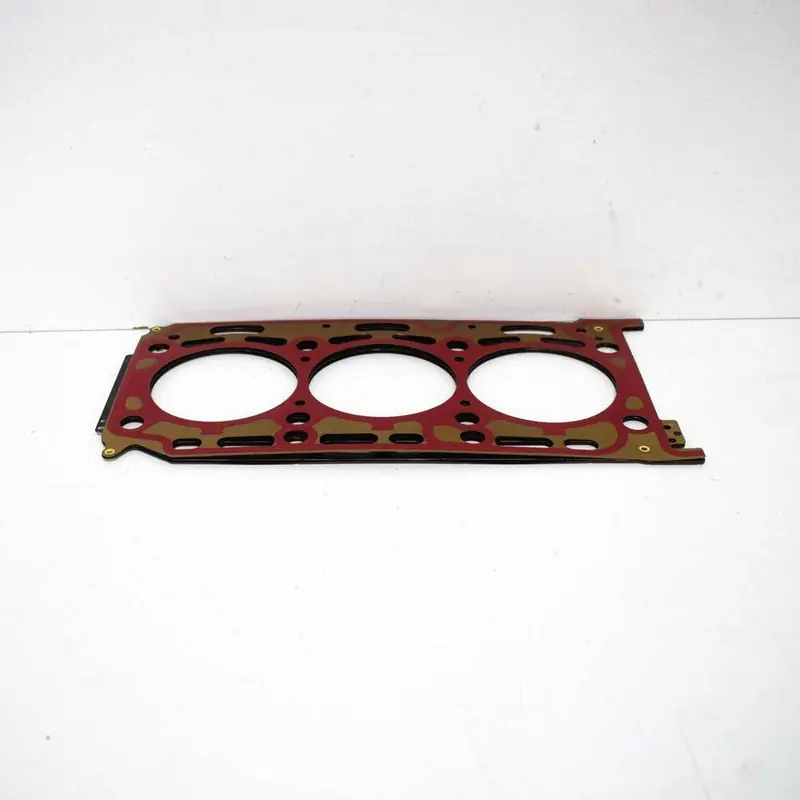

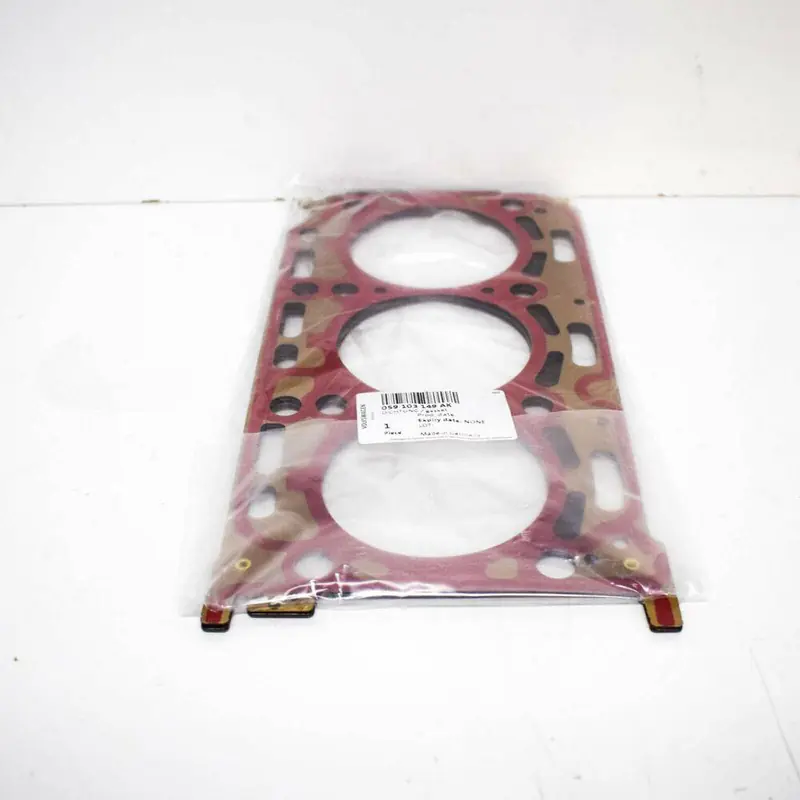

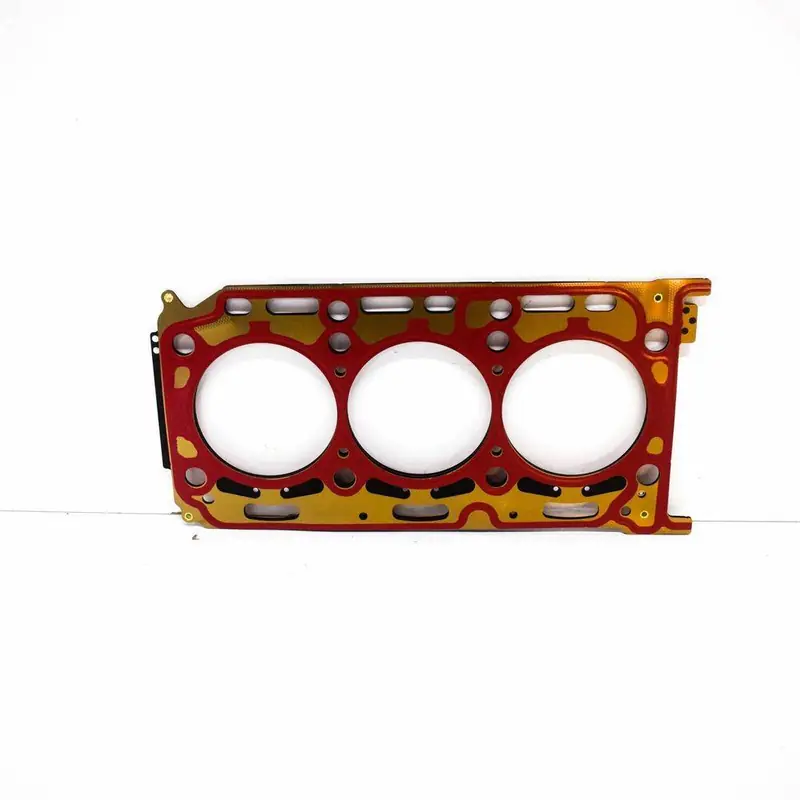

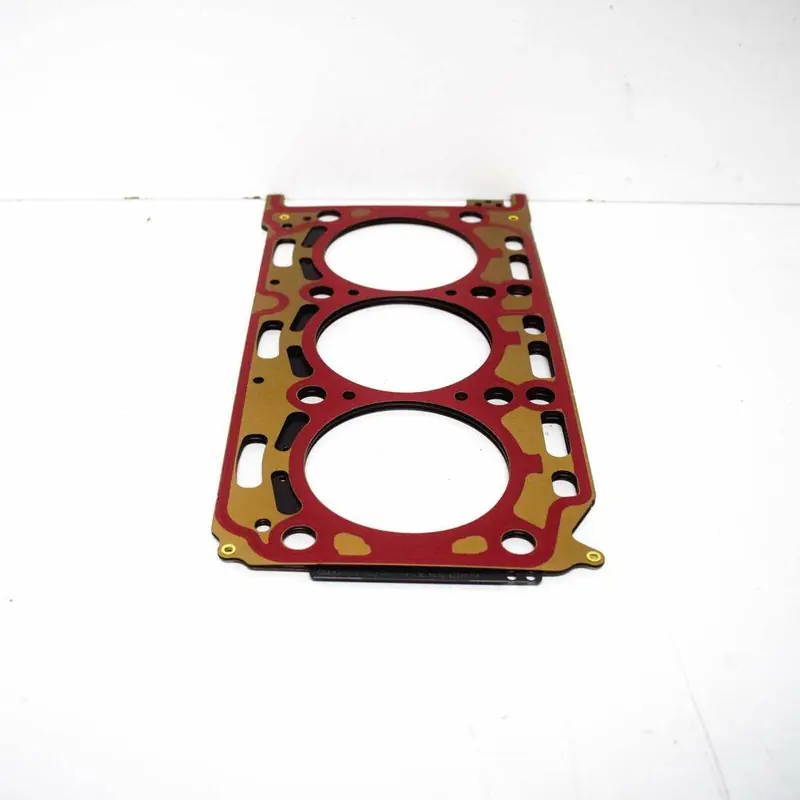

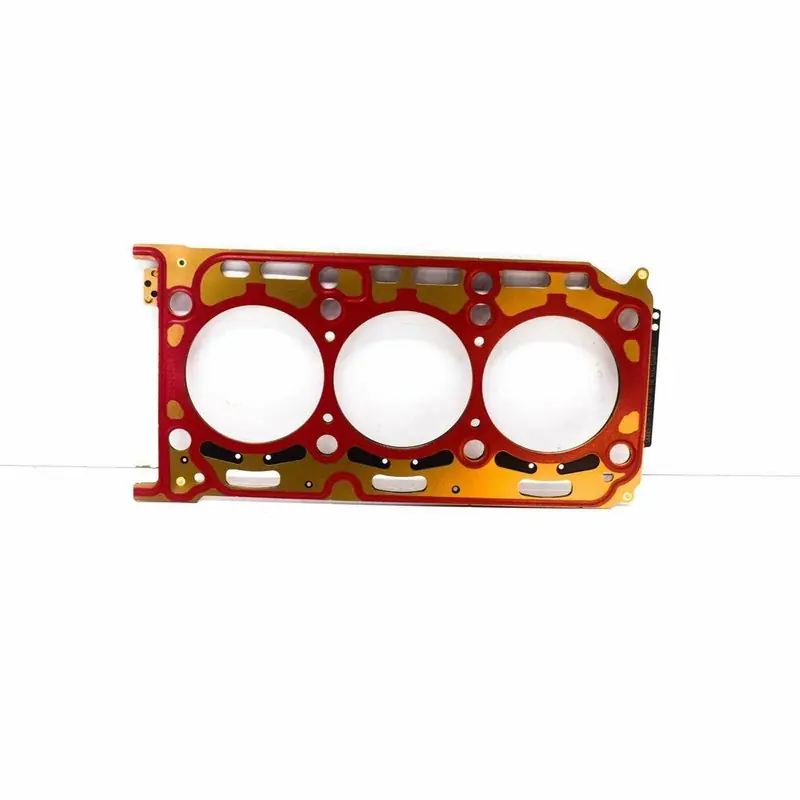

Genuine OEM Audi Engine Cylinder Head Gasket, part number 059103149AK. This essential component is designed to create a robust seal between the cylinder head and the engine block, preventing the leakage of combustion gases, engine oil, and coolant. It is critical for maintaining optimal engine compression and preventing fluid cross-contamination. Constructed from multi-layer steel (MLS) for superior durability and heat resistance, it weighs approximately 0.442 kg and is 3mm thick. Choosing a genuine OEM gasket guarantees the precise material composition and exact dimensions for an optimal, leak-free seal under all engine operating conditions.
Technical details
- Category
- Gaskets & Seals
- Customs (HS) code
- 84841000
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 34.3 × 15.5 × 0.3 cm
- Shipping weight
- 0.44 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
15 vehiclesCylinder Head Gasket (metal) — locate 059103149AK Audi Engine Cylinder Head Gasket | Engine Seal in the official exploded view and explore the surrounding assembly.
Superseded by WHT005262 — the current replacement part.
Parts in this assembly37
- 1Cylinder Head 059103063ML
- 2Cylinder Head 059103064ML
- 3Sleeve 059103139B
- 4BoltLeftN91070903
- 5Screw N10283304
- 6Bolt N10116103
- 7Cover 059103960G
- 8Bolt WHT008070
- 9Ball Joint 059103164H
- 10Ball Joint 059103164E
- 11Seal 059103148AK
- 11Seal 059103148AL
- 11Seal 059103148AJ
- 12Screw WHT005262A
- 15Cover 059103959G
- 18Seal 059103149AL
- 18Seal 059103149AJ
- 21Cover 059103470CS
- 22Seal 059103484J
- 23Element 059103831
- 24Seal Ring 059103196A
- 25Seal 059103085L
- 26Grommet 059103631D
- 27Cover 059103707D
- 28Seal Ring N90466301
- 29Bolt N10766201
- 30Cover 059103469DE
- 31Seal 059103483AH
- 36Cover 06K103485B
- 38Connection 059103482H
- 39Seal D176501A1
- 40Screw WHT008841
- 41Part 059121597N
- 42Bolt N10405604
- 43Collar Nut N01508210
- 44Pipe 059115301
- 46Seal Ring 059133287C
Compatible / alternative parts(12)
Vehicle fitment table15
Europe (15)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Amarok twin cab | 2022- | 18 | 4 |
| Audi Q8 Quattro 3,0 | 2018- | 38, 18 | |
| audi a6 2.0 | 2018- | 38, 18 | |
| Audi A7 Sportback | 2018- | 38, 18 | |
| touareg | 2017-2023 | 18 | 4 |
| Audi A8L | 2017-2022 | 38, 18 | |
| Amarok twin cab | 2016-2022 | 18 | 4 |
| Audi Q5 | 2016-2020 | 38, 18 | |
| Audi A5 Sportback | 2016-2020 | 38, 3, 18 | |
| Audi A5 Cabrio 2.0 | 2016-2018 | 3, 18 | |
| audi a4 2.0 | 2015-2019 | 38, 3, 18 | |
| Audi Q7 qu. 3.0 TDI | 2015-2019 | 38, 3, 18 | |
| Audi A7 Sportback | 2014-2018 | 3 | |
| audi a6 qu. 3.0 tdi | 2014-2018 | 3 | |
| Audi A6 Av. qu. 3.0 | 2012-2018 | 3 |
Diagrams & fitment data powered by oemdiagrams.com
059103149AK Audi Engine Cylinder Head Gasket | Engine Seal is fitted on: Amarok twin cab 2022-; Audi Q8 Quattro 3,0 2018-; audi a6 2.0 2018-; Audi A7 Sportback 2018-; touareg 2017-2023; Audi A8L 2017-2022; Amarok twin cab 2016-2022; Audi Q5 2016-2020; Audi A5 Sportback 2016-2020; Audi A5 Cabrio 2.0 2016-2018; audi a4 2.0 2015-2019; Audi Q7 qu. 3.0 TDI 2015-2019; Audi A7 Sportback 2014-2018; audi a6 qu. 3.0 tdi 2014-2018; Audi A6 Av. qu. 3.0 2012-2018.
