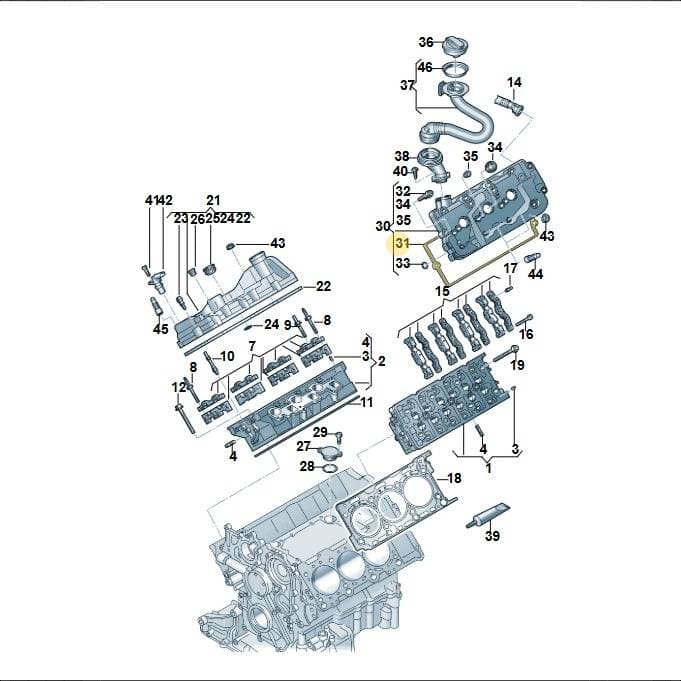

Number 31 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Seal, part number 059103483AH. This seal creates a barrier to prevent the leakage of fluids or gases between two mating surfaces within the engine assembly. It is located in the engine assembly, specifically at position 31 on the diagram. The part weighs 0.0415 kg. Genuine OEM seals are manufactured with precise tolerances to ensure a perfect fit and reliable sealing, preventing leaks and maintaining engine integrity.
Technical details
- Category
- Engine
- Country of origin
- Germany
- Customs (HS) code
- 40169300
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 48.8 × 20.2 × 2.6 cm
- Shipping weight
- 0.04 kg
Parts diagram & fitment
9 vehiclesSeal — locate 059103483AH Volkswagen Seal | Engine in the official exploded view and explore the surrounding assembly.
Superseded by 059103484E — the later replacement part.
Parts in this assembly(38)
- 1Cylinder Head 059103063MK
- 1Cylinder Head 059103063MM
- 2Cylinder Head 059103064ML
- 2Cylinder Head 059103064MQ
- 3Sleeve 059103139B
- 4BoltLeftN91070903
- 4Bolt N0444087
- 5Bolt N10116103
- 7Cover 059103960G
- 8Bolt WHT008070
- 9Ball Joint 059103164E
- 10Ball Joint 059103164H
- 11Seal 059103148AK
- 11Seal 059103148AL
- 11Seal 059103148AJ
- 12Screw WHT005262A
- 15Cover 059103959G
- 18Seal 059103149AK
- 18Seal 059103149AL
- 18Seal 059103149AJ
- 21Cover 059103470CS
- 22Seal 059103484J
- 23Element 059103831
- 24Seal Ring 059103196A
- 25Seal 059103085L
- 26Grommet 059103631D
- 28Collar Nut N01508213
- 30Cover 059103469DE
- 36Cover 06K103485B
- 36Cover 06K103485A
- 37Pipe 4M0115301H
- 38Connection 059103482H
- 39Seal D176501A1
- 40Screw WHT008841
- 41Screw N10721401
- 42Sender 04C907601K
- 44Part WHT007153
- 46Seal Ring 059133287C
Compatible / alternative parts(10)
Diagrams & fitment data powered by oemdiagrams.com
059103483AH Volkswagen Seal | Engine is fitted on: Audi Q8 Quattro 3,0 2018-; audi a6 2.0 2018-; Audi A7 Sportback 2018-; Audi A8L 2017-2022; Audi A5 Cabrio 2.0 2016-2018; Audi Q7 qu. 3.0 TDI 2015-2019; Audi Q5 2016-2020; Amarok twin cab 2022-; touareg 2017-2023.
