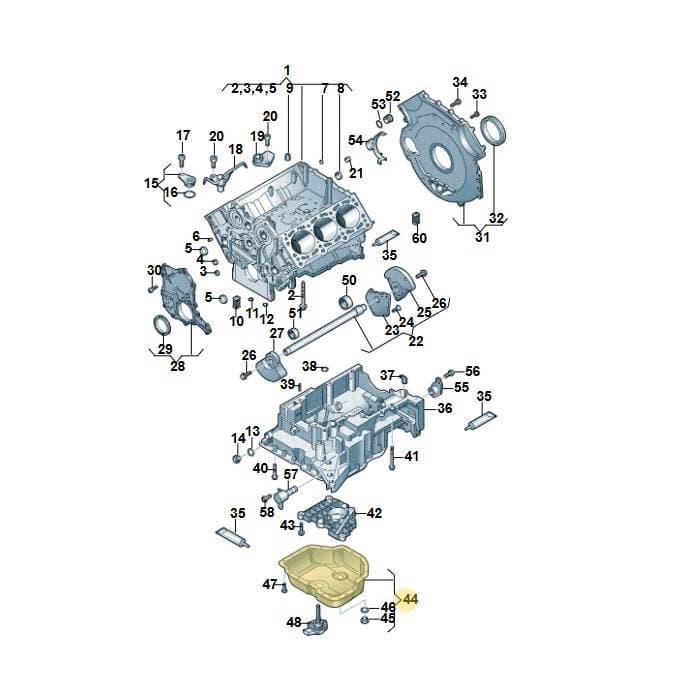

Number 44 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Engine Oil Sump Lower Part, part number 059103602F. This part forms the lower section of the oil sump, contributing to the storage of engine oil. It is located at position 44 in the engine assembly. Genuine OEM oil sump components ensure a perfect seal and correct oil capacity, critical for engine longevity.
Technical details
- Category
- Engine
- Country of origin
- Germany
- Customs (HS) code
- 84099900
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 39 × 32 × 12 cm
- Shipping weight
- 2.05 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
6 vehiclesEngine Oil Sump Lower Part — locate 059103602F Volkswagen Engine Oil Sump Lower Part | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly48
- 1Part 059103011AD
- 2Bolt 059103039H
- 3Cover N0119034
- 4Cover N0119047
- 5Cover N0119085
- 6Part N10667801
- 7Cover N91081801
- 8Cover N01191410
- 10Seal 057103147A
- 11Seal Ring N90364901
- 12Seal Ring N90405402
- 13Seal Ring N0138326
- 14Screw N0160292
- 18Vent 059103158J
- 19Valve 059103765D
- 20Bolt N91054701
- 21Sleeve 022103139
- 22Shaft 059103273H
- 23Cover 059103407B
- 24Bolt N10456004
- 25Weight 059103331H
- 26Bolt N90893202
- 27Weight 059103332L
- 28Flange 059103150T
- 29Seal 079103051D
- 30Bolt N91004802
- 30Bolt N10124306
- 31Flange 059103171K
- 32Seal 079103051F
- 33Bolt N10156206
- 34Screw N91128701
- 35Seal D176501A1
- 36Oil Sump 059103603AG
- 37Seal 059103609L
- 38Seal 059103609M
- 39Part 055105277
- 40Screw N90853801
- 40Screw N90853901
- 41Screw N91009401
- 42Insert 059103138G
- 43Bolt N10413401
- 45Screw N0160276
- 46Seal Ring N0138157
- 47Bolt N01021710
- 52Cover 059103189
- 53Seal Ring 035115427
- 55Plate 059109361
- 56Bolt N90780901
Compatible / alternative parts(2)
Vehicle fitment table6
Europe (6)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| touareg | 2010-2012 | 44 | 1 | TE1 |
| Audi Q7 qu. 3.0 TDI | 2009-2015 | 10 | 1 | |
| Touareg 08> | 2007- | 44 | 1 | |
| Audi Q7 07> | 2006- | 10 | 1 | |
| Touareg | 2005-2006 | 44 | 1 | D1T |
| Touareg | 2003-2005 | 44 | 1 |
