Product overview

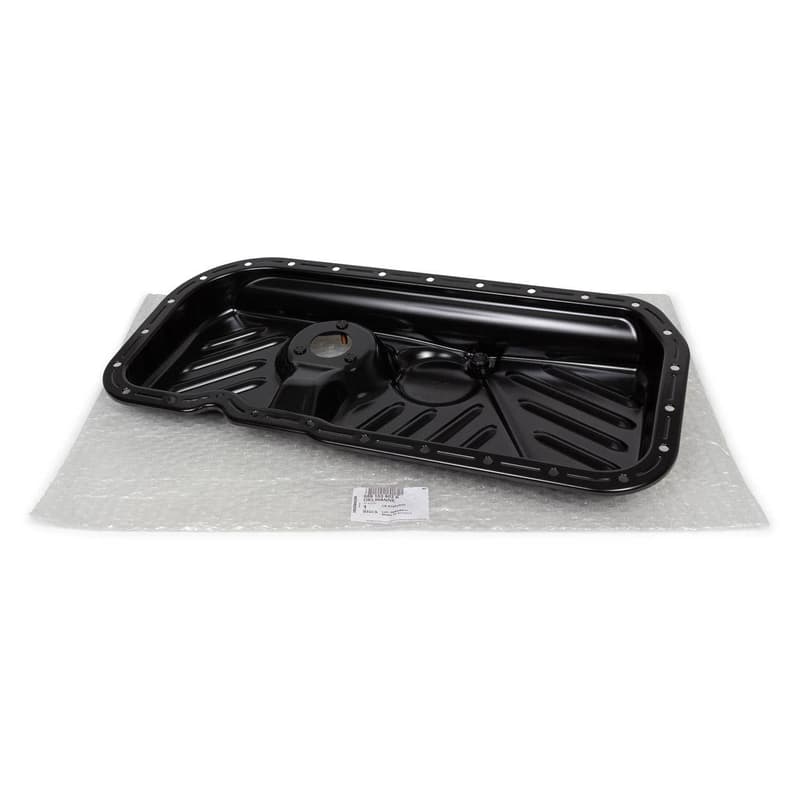

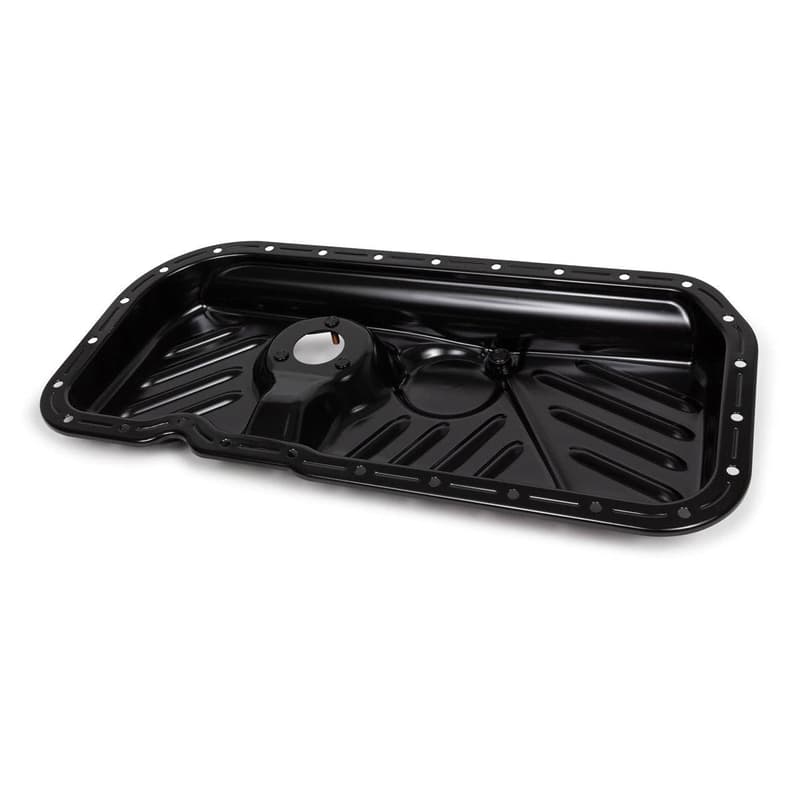

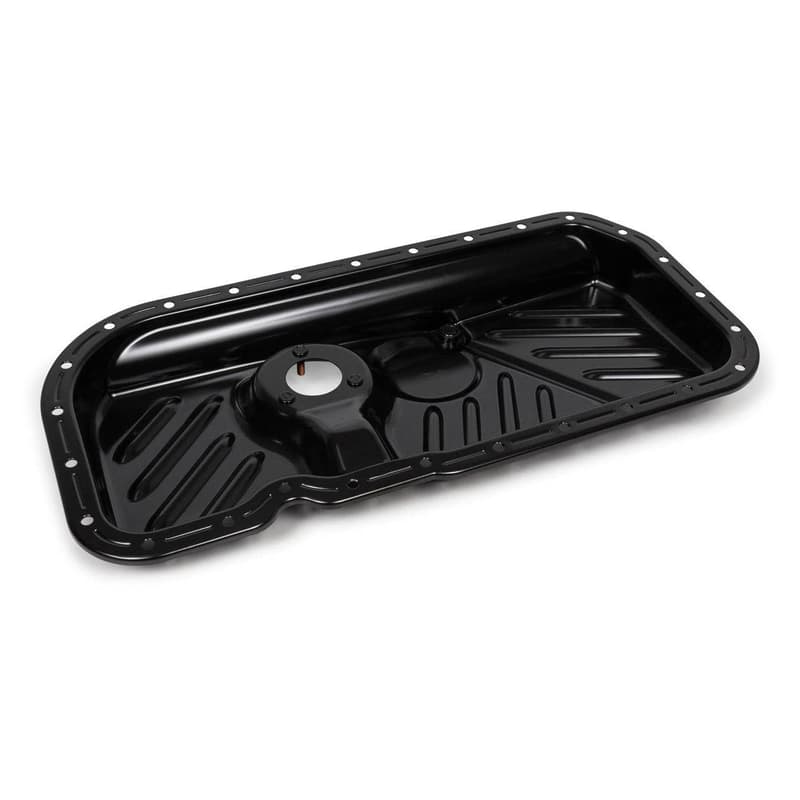

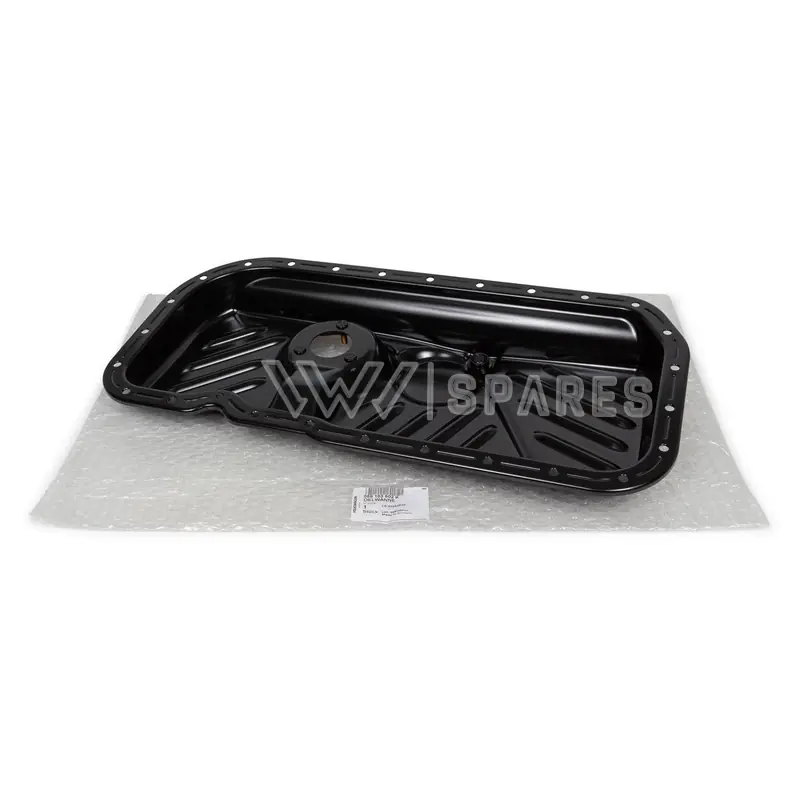

Genuine OEM Audi Engine Oil Sump Lower, part number 059103602K. This component serves as the reservoir for engine oil, collecting it after it circulates through the engine. It is located at the lowest point of the engine assembly. Constructed from stamped steel, it provides a durable and leak-proof housing for the oil. Genuine OEM oil sumps are designed for precise fitment and to prevent oil leaks, ensuring proper engine lubrication.
Technical details
- Category
- Airbags & Safety
- Country of origin
- European Union
- Customs (HS) code
- 84099900
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 50.5 × 24.5 × 5 cm
- Shipping weight
- 1.9 kg
Parts diagram & fitment

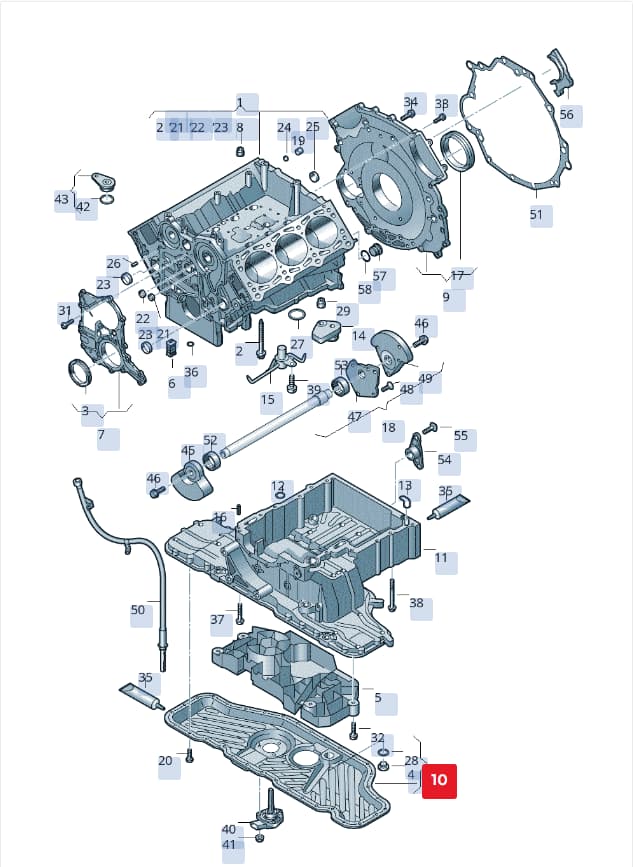

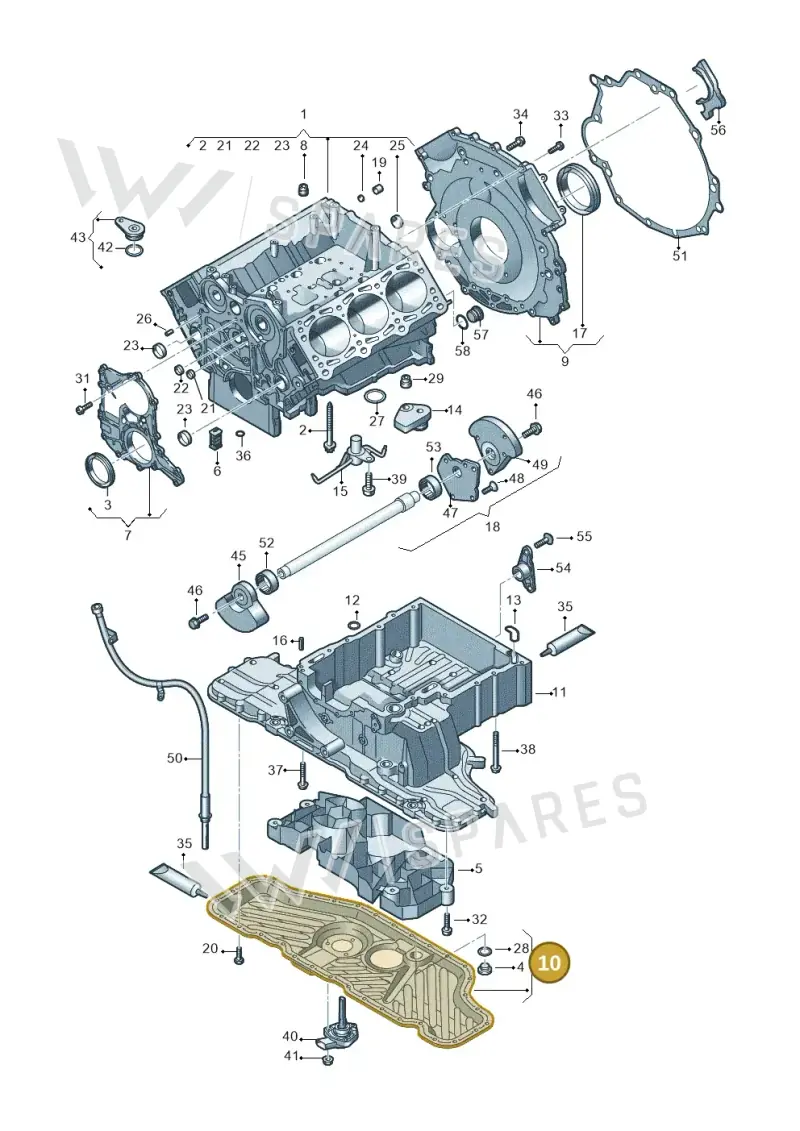

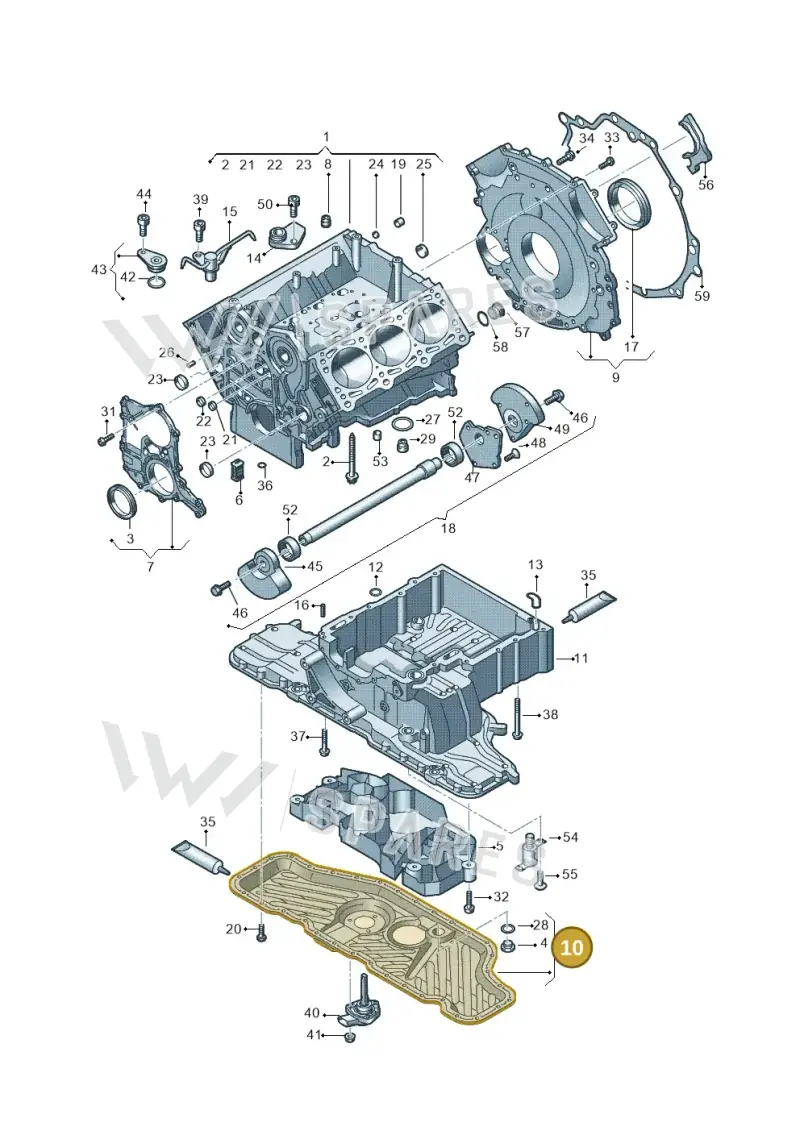

5 vehiclesEngine Oil Sump Lower Part — locate 059103602K Audi Engine Oil Sump Lower | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(46)
- 1Crankcase 059103011BQ
- 2Bolt 059103039H
- 3Seal 079103051D
- 4Screw N0160276
- 5Insert 059103138Q
- 6Seal 057103147A
- 7Flange 059103150AJ
- 9Flange 059103171Q
- 11Oil Sump 059103603BG
- 12Seal 059103609M
- 13Seal 059103609L
- 14Valve 059103765D
- 15Vent 059103158S
- 16Part 055105277
- 17Seal 079103051F
- 18Shaft 059103273S
- 19Sleeve 022103139B
- 20Bolt N01021723
- 21Cover N0119034
- 22Cover N0119047
- 23Cover N0119085
- 24Cover N91081801
- 25Cover N01191410
- 26Part N10667801
- 27Seal Ring N0138326
- 28Seal Ring N0138157
- 29Screw N0160293
- 31Bolt N10124306
- 32Bolt N91071701
- 33Bolt N10156206
- 34Screw N10225802
- 35Seal D176501A1
- 36Seal Ring N90405402
- 36Seal Ring N90364901
- 37Screw N90853903
- 38Screw N91009402
- 39Bolt N91054701
- 42Seal Ring N91008401
- 43Cover 059121155
- 45Weight 059103332L
- 46Bolt N90893202
- 47Cover 059103407D
- 48Bolt N10456004
- 49Weight 059103331J
- 52Bearing 059103869
- 53Bearing 059103869A
Compatible / alternative parts(3)
Diagrams & fitment data powered by oemdiagrams.com
059103602K Audi Engine Oil Sump Lower | Genuine OEM is fitted on: Audi A5/S5 Coupe 08> 2007-; AUDI A4 08> 2007-; Audi Q5 qu. 2.0 TDI 2008-2012; Audi A5 Cabrio 2.0 2008-2012; Audi A4 Av. Allroad 2008-2016.
