059109085D Chain Sprocket
- 059109569HNot stocked
Jun 2011 - 059109569LNot stocked
Oct 2017 - 059109569SNot stocked
Jan 2019 - 059109085DThis pageNot stocked
Jun 2019 - 059109085GCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

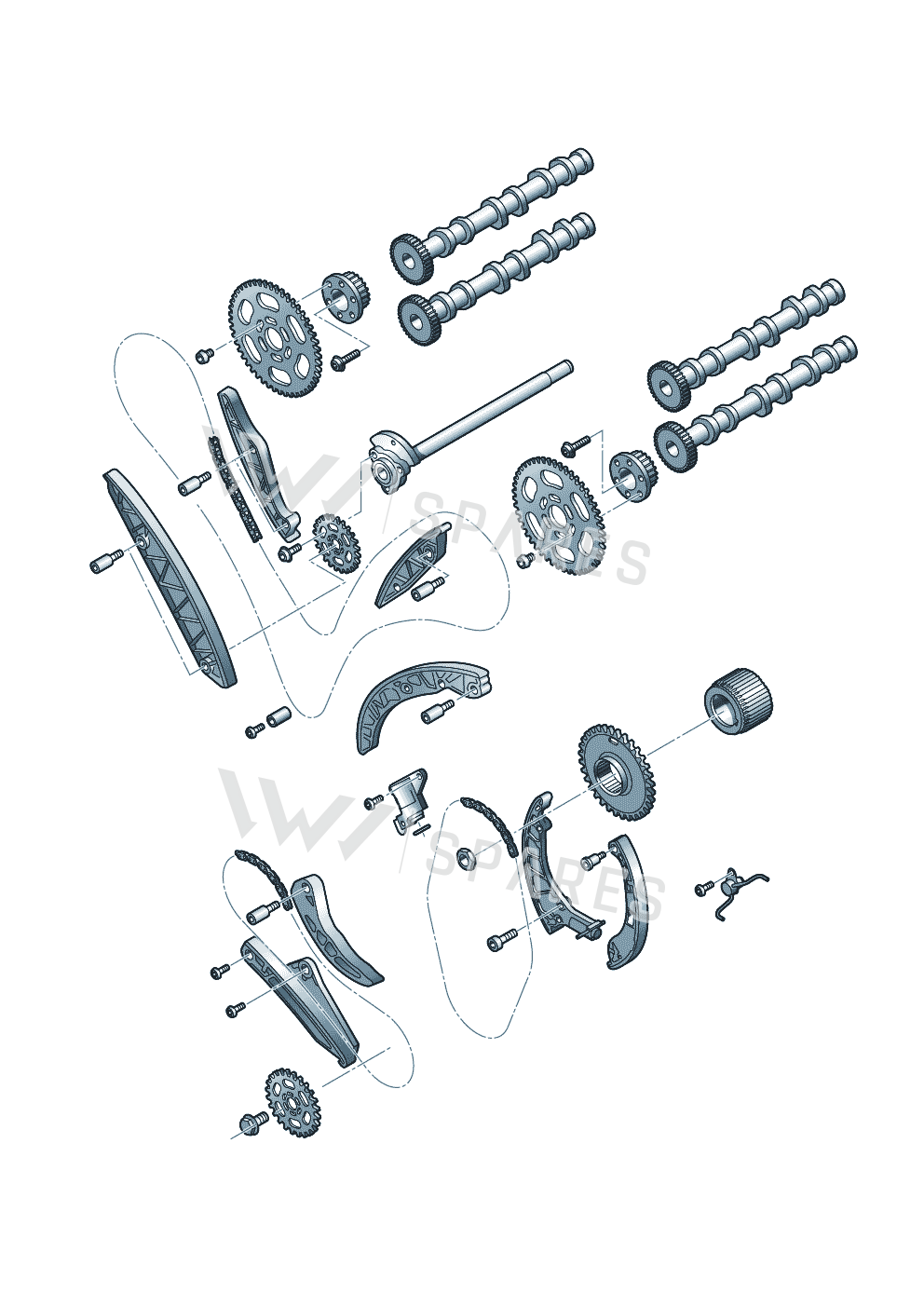

18 vehiclesChain Sprocket — locate Chain Sprocket in the official exploded view and explore the surrounding assembly.
Parts in this assembly41
- 1Chn Sprckt 059109085G
- 3Collar Nut WHT002244
- 4Tensioner 059109507AM
- 4Tensioner 059109507AE
- 5Bolt N10156206
- 6Seatrunner 059109509L
- 6Seatrunner 059109509K
- 7Part 059109426AA
- 8Vent 059109429D
- 9Screw N10170303
- 10Timing Cha 059109252G
- 10Timing Cha 059109252H
- 11Seatrunner 059109469AB
- 12Seatrunner 059109513N
- 13Part 059109426S
- 14Seatrunner 059109510Q
- 14Seatrunner 059109510N
- 15Seatrunner 059109514N
- 16Tensioner 059109467AP
- 16Tensioner 059109467BB
- 16Tensioner 059109467AM
- 17Seal Ring WHT009308
- 18Bolt N10124306
- 19Part 059109426T
- 20Chn Sprckt 059103333F
- 21Screw N91048802
- 22Chn Sprckt 059109116G
- 23Screw N91052201
- 24Bush 059109135D
- 25Bolt N10744301
- 26Timing Cha 059109229AJ
- 26Timing Cha 059109229AK
- 27Wheel 059109171S
- 27Wheel 059109171H
- 28Screw N10672001
- 30Chn Sprckt 059109570F
- 31Bolt N90893202
- 32Seatrunner 059109538R
- 34Tensioner 059109467AF
- 36Timing Cha 059109106C
- 36Timing Cha 059109106E
Vehicle fitment table18
Europe (18)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Audi Q8 Quattro 3,0 | 2018- | 1 | 1 | ||
| audi a6 2.0 | 2018- | 1 | 1 | ||
| Audi A7 Sportback | 2018- | 1 | 1 | ||
| touareg | 2017-2023 | 22 | |||
| Audi A8L | 2017-2022 | 1 | 1 | ||
| Amarok twin cab | 2016-2022 | 22 | |||
| Audi Q5 | 2016-2020 | 1 | 1 | ||
| Audi A5 Sportback | 2016-2020 | 22, 1 | |||
| Audi A5 Cabrio 2.0 | 2016-2018 | 22, 1 | |||
| audi a4 2.0 | 2015-2019 | 22, 1 | |||
| Audi Q7 qu. 3.0 TDI | 2015-2019 | 22, 1 | |||
| Audi A7 Sportback | 2014-2018 | 22 | 1 | TS8 | |
| audi a6 qu. 3.0 tdi | 2014-2018 | 22 | 1 | TS8 | |
| Touareg BlueMotion | 2014-2018 | 30 | |||
| Audi A6 Av. qu. 3.0 | 2012-2018 | 22 | 1 | TS8 | |
| Audi Q5 qu. 2.0 TDI | 2012-2017 | 22 | 1 | DE | |
| Audi A5 Sportback | 2011-2017 | 22 | 23 | ||
| Audi A5 Cabrio 2.0 | 2011-2017 | 22 | 23 |
Diagrams & fitment data powered by oemdiagrams.com
Chain Sprocket is fitted on: Audi Q8 Quattro 3,0 2018-; audi a6 2.0 2018-; Audi A7 Sportback 2018-; touareg 2017-2023; Audi A8L 2017-2022; Amarok twin cab 2016-2022; Audi Q5 2016-2020; Audi A5 Sportback 2016-2020; Audi A5 Cabrio 2.0 2016-2018; audi a4 2.0 2015-2019; Audi Q7 qu. 3.0 TDI 2015-2019; Audi A7 Sportback 2014-2018; audi a6 qu. 3.0 tdi 2014-2018; Touareg BlueMotion 2014-2018; Audi A6 Av. qu. 3.0 2012-2018; Audi Q5 qu. 2.0 TDI 2012-2017; Audi A5 Sportback 2011-2017; Audi A5 Cabrio 2.0 2011-2017.
