059109507C Chain Tensioner
- 059109507ANot stocked
Apr 2010 - 059109507CThis pageNot stocked
Mar 2010 - 059109507DCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

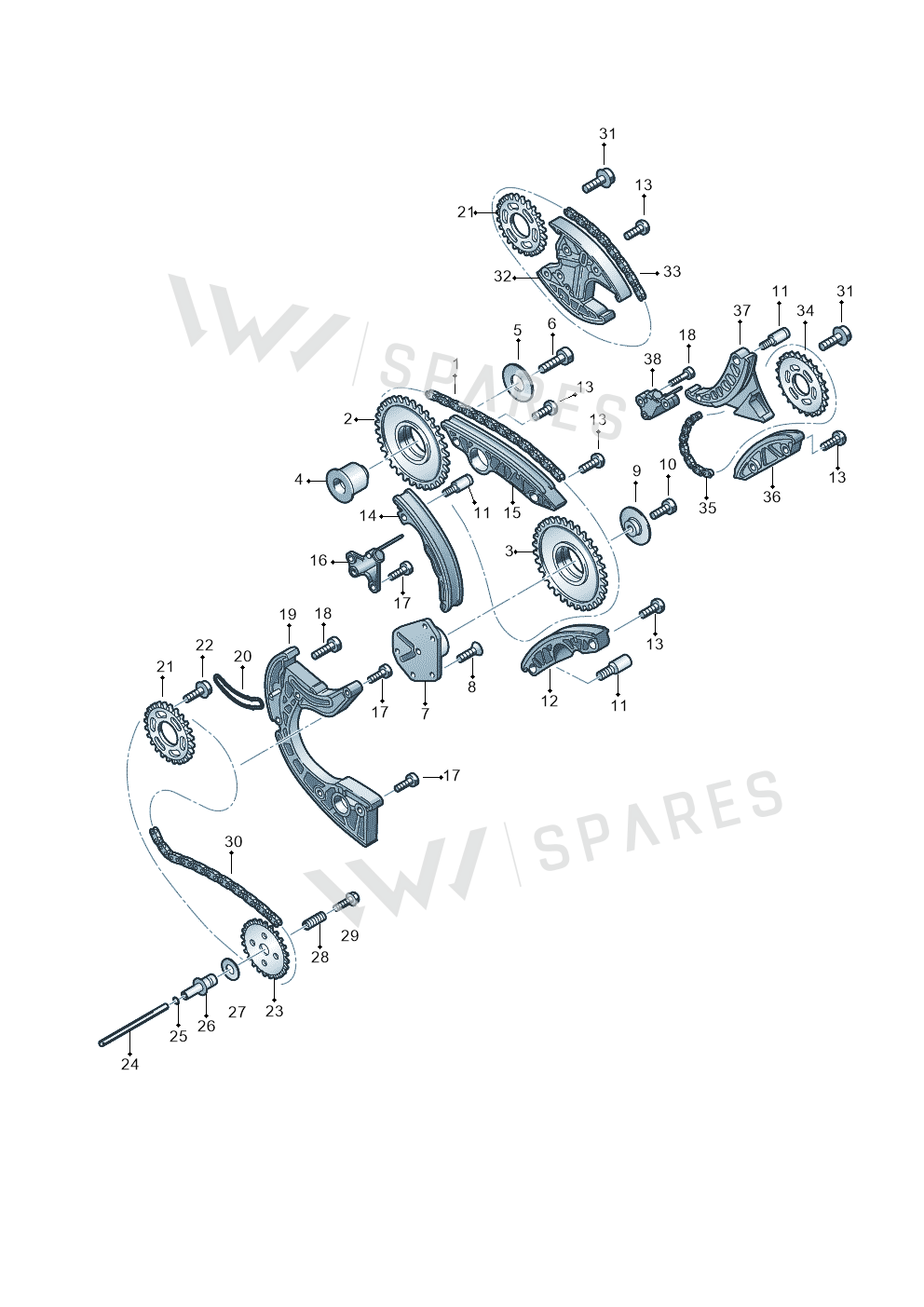

4 vehiclesChain Tensioner — locate Chain Tensioner in the official exploded view and explore the surrounding assembly.
Parts in this assembly37
- 1Timing Cha 059109229J
- 2Chn Sprckt 059109077E
- 3Chn Sprckt 057109077
- 4Part 057109224D
- 5Washer WHT000124
- 6Screw N10660901
- 7PartLeft057109224B
- 8Bolt N90954905
- 9Washer 079109435G
- 10Bolt N10451409
- 11Screw WHT000265
- 12Rail 057109469G
- 13Bolt N10156205
- 14Rail 079109510M
- 15Rail 057109469H
- 16Tensioner 059109467E
- 17Bolt N10124306
- 18Screw N10554005
- 20Seal 079109139M
- 21Chn Sprckt 057109116J
- 22Screw N91048802
- 23Chn Sprckt 079109570AP
- 24Shaft 059115120A
- 25Ring N90015401
- 26Shaft 059109341A
- 27Washer 007311517
- 28Press Spring 059109481
- 29Bolt N90893202
- 30Timing Cha 06E109465AQ
- 31Screw N91052201
- 32TensionerRight057109218K
- 33Timing ChaRight059109229K
- 34Chn Sprckt 057109116H
- 35Timing ChaLeft059109229M
- 36Seatrunner 057109513B
- 37Tensioner 057109510A
- 38TensionerLeft057109217J
Vehicle fitment table4
Europe (4)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| phaeton 4motion | 2008-2010 | 19 | 1 | D50 |
| PHAETON 08> | 2007- | 19 | 1 | D1D |
| Audi Q7 07> | 2006- | 20, 42 | 1 | |
| Audi A8/S8/qu. lang | 2003-2007 | 42 | 1 | D1S |
Diagrams & fitment data powered by oemdiagrams.com
Chain Tensioner is fitted on: phaeton 4motion 2008-2010; PHAETON 08> 2007-; Audi Q7 07> 2006-; Audi A8/S8/qu. lang 2003-2007.
