Genuine OEM Audi slide rail, part number 059109509D. This rail is a critical component of the timing chain assembly, providing a low-friction surface for the chain to travel along while maintaining correct tension. It is located within the engine timing cover assembly. Genuine OEM slide rails are manufactured with high-strength, wear-resistant materials to withstand constant thermal cycling and mechanical stress, ensuring precise valve timing and preventing chain slap or premature engine wear.
Technical details
- Category
- Belts, Chains & Tensioners
- Country of origin
- Germany
- Customs (HS) code
- 84099900
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 18.3 × 7.3 × 1.5 cm
- Shipping weight
- 0.09 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment

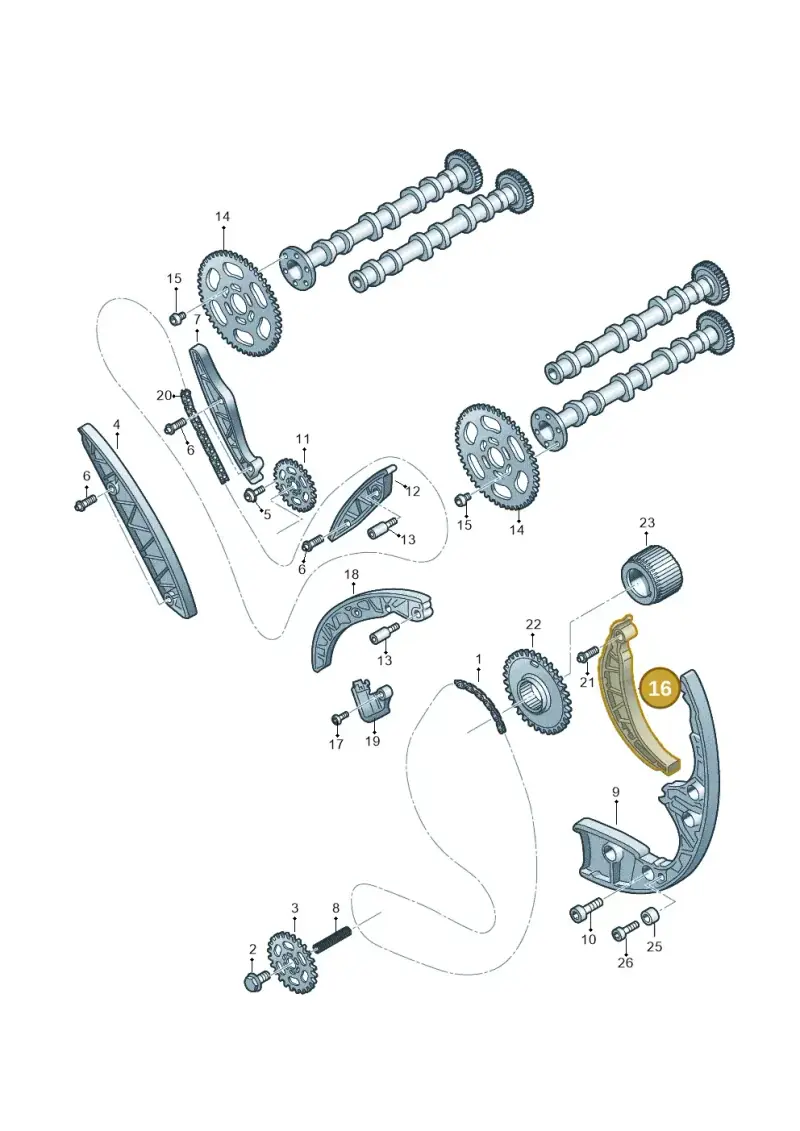

6 vehiclesSlide Rail — locate 059109509D Audi Slide Rail | Timing Chain Assembly in the official exploded view and explore the surrounding assembly.
Superseded by 059109513C — the current replacement part (via 059109469N).
Parts in this assembly25
- 1Timing Cha 059109252A
- 1Timing Cha 059109252
- 2Bolt N90893202
- 3Chn Sprckt 059109570C
- 4Seatrunner 059109469N
- 5Screw N91048802
- 6Part 059109426F
- 7Seatrunner 059109513C
- 8Press Spring 059109481
- 9Tensioner 059109507K
- 10Bolt N10124306
- 11Chn Sprckt 059103333F
- 12Seatrunner 059109514C
- 13Part 059109426G
- 14Chn Sprckt 059109116A
- 15Screw N91052201
- 16Seatrunner 059109509C
- 18Seatrunner 059109510F
- 19Tensioner 059109467AL
- 20Timing Cha 059109229AA
- 20Timing Cha 059109229S
- 21Bolt WHT005189
- 22Chn Sprckt 059109569L
- 22Chn Sprckt 059109569F
- 25Bush 059109135A
Compatible / alternative parts(12)
Vehicle fitment table6
Europe (6)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Audi A7 Sportback | 2014-2018 | 16 | 1 | CVUA,CVUB | TG1 |
| audi a6 qu. 3.0 tdi | 2014-2018 | 16 | 1 | CVUA,CVUB | TG1 |
| Audi A6 Av. qu. 3.0 | 2012-2018 | 16 | 1 | CGQB,CVUA | TG1 |
| Audi Q5 qu. 2.0 TDI | 2012-2017 | 16 | 1 | CGQB,CVUB, | CV |
| audi a6 2.0 tdi | 2010-2015 | 16 | 1 | CGQB | TG1 |
| Audi A4 Av. Allroad | 2008-2016 | 16 | 1 | CKVB | TH1 |
Diagrams & fitment data powered by oemdiagrams.com
059109509D Audi Slide Rail | Timing Chain Assembly is fitted on: Audi A7 Sportback 2014-2018; audi a6 qu. 3.0 tdi 2014-2018; Audi A6 Av. qu. 3.0 2012-2018; Audi Q5 qu. 2.0 TDI 2012-2017; audi a6 2.0 tdi 2010-2015; Audi A4 Av. Allroad 2008-2016.
