059121506E Intermediate Flange
- 059121506CNot stocked
Jun 2012 - 059121506EThis pageNot stocked
Jun 2012 - 059121506GNot stocked
Dec 2013 - 059121506HCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

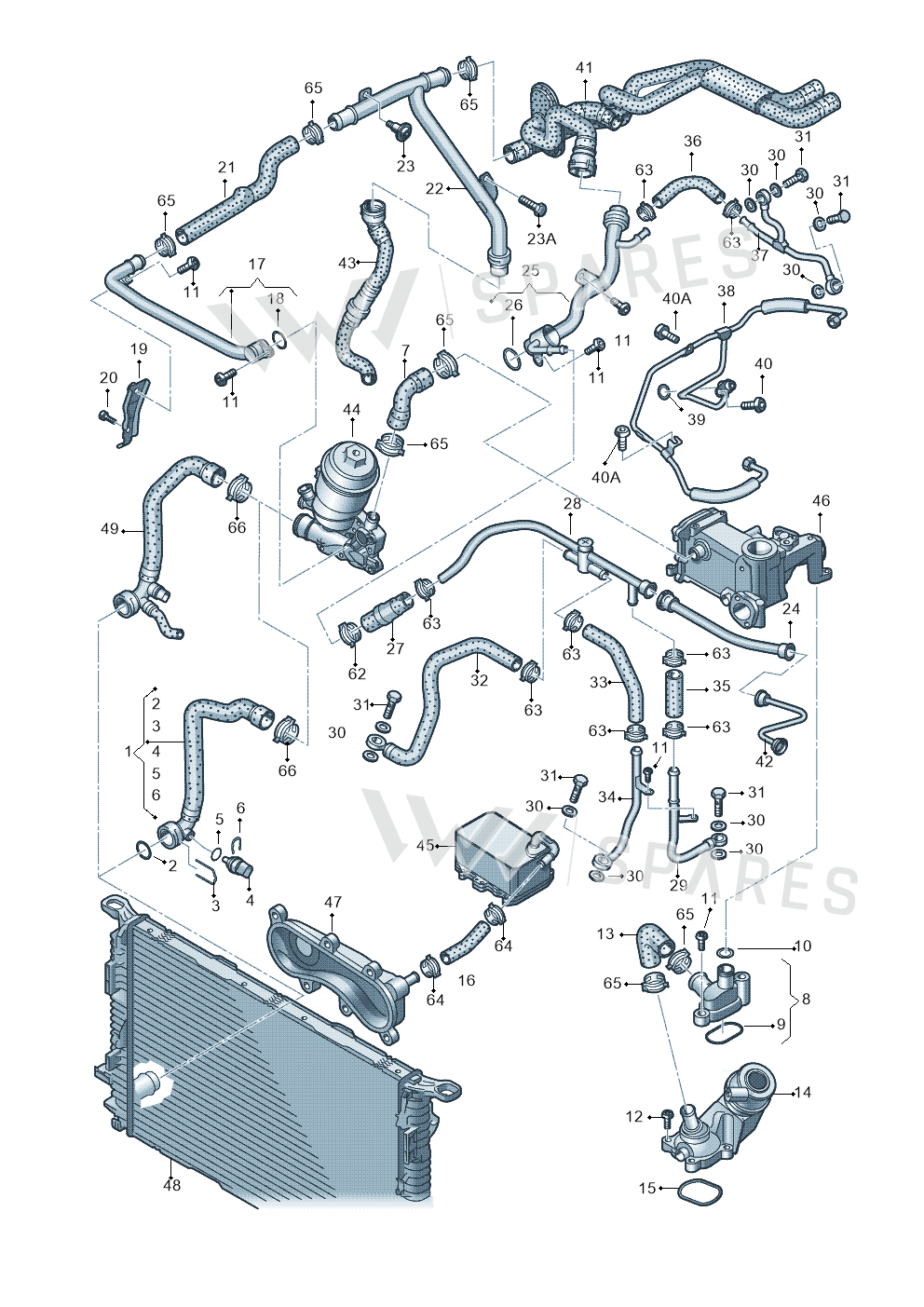

3 vehiclesIntermediate Flange — locate Intermediate Flange in the official exploded view and explore the surrounding assembly.
Parts in this assembly48
- 1HoseRight4G0121049L
- 2Seal Ring 4E0121666
- 3Spring 4E0121142
- 4Sender 06A919501A
- 5Seal Ring N90316801
- 6Spring 032121142
- 7Hose 059121103H
- 8Flange 059121506H
- 9Seal Ring 059121149E
- 10Seal Ring N90809102
- 11Bolt N10451408
- 12Screw N10554005
- 13Hose 059121625C
- 14Valve 059121737J
- 14Valve 059121737R
- 15Seal Ring 059121149B
- 16Hose 059121073P
- 17Water Pipe 059121075DJ
- 17Water Pipe 059121075FE
- 17Water Pipe 059121075DL
- 18Seal Ring 059121437
- 19Bracket 059121093E
- 20Screw N10644901
- 21HoseRight4G0819374L
- 22Water Pipe 4G0819377K
- 23Screw WHT003841
- 23ABolt N01021723
- 24Water Pipe 059121731B
- 24Water Pipe 059121731D
- 25Water Pipe 059121065CT
- 25Water Pipe 059121065DT
- 27Hose 059121056G
- 28Water Pipe 059121086AH
- 29Water Pipe 059121399K
- 30Seal 059145119A
- 30Seal Ring N0138076
- 31Screw 06A145541J
- 31Screw N91043801
- 32Hose 059121454D
- 33Hose 059121453D
- 34Pipe 059121465A
- 34Pipe 059121465B
- 35Hose 059121055K
- 36Hose 059121106B
- 36Hose 059121055L
- 37Water Pipe 059121492AB
- 37Water Pipe 059121492M
- 37Water Pipe 059121492AG
Vehicle fitment table3
Europe (3)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Audi A6 Av. qu. 3.0 | 2012-2018 | 8 | 1 | TG1 |
| Audi A7 Sportback | 2010-2015 | 8 | 1 | |
| touareg | 2010-2012 | 41 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Intermediate Flange is fitted on: Audi A6 Av. qu. 3.0 2012-2018; Audi A7 Sportback 2010-2015; touareg 2010-2012.
