05E103600B Engine Oil Sump Lower Part
- 05E103602BNot stocked
Nov 2022 - 05E103600BThis pageNot stocked
Jun 2023 - 05E103600ECurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

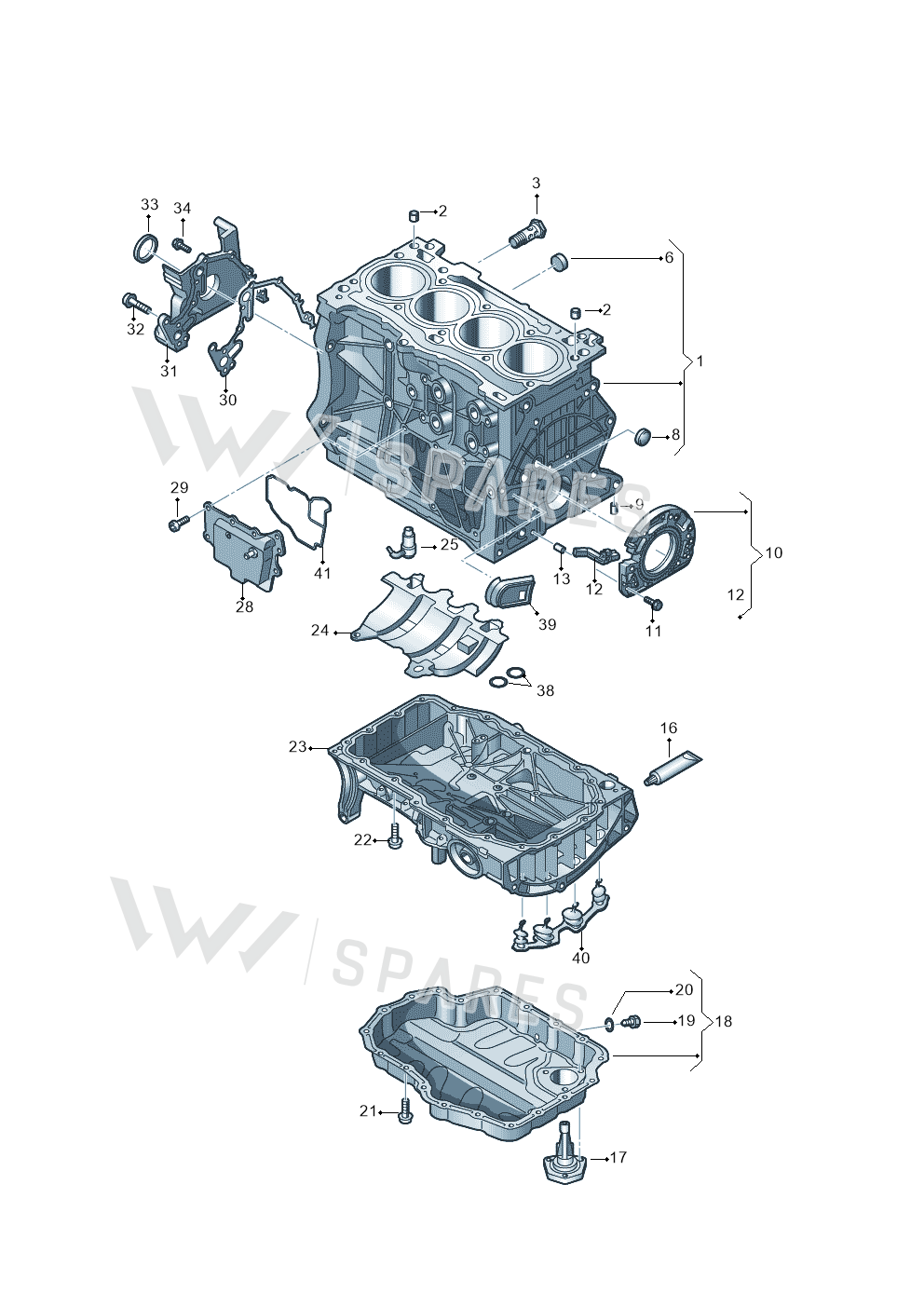

16 vehiclesEngine Oil Sump Lower Part — locate Engine Oil Sump Lower Part in the official exploded view and explore the surrounding assembly.
Parts in this assembly29
- 2Sleeve 04E103143A
- 3Bolt N91101401
- 6Cover N0119173
- 8Cover N0119098
- 9Part N0432072
- 10Flange 04C103170H
- 11Bolt N10653301
- 13Part 026103139
- 16Seal D176501A1
- 18Part 05E103600E
- 19Plug N90288901
- 20Seal Ring N0138158
- 21Bolt N10748001
- 22Screw N90500605
- 23Oil Sump 05E103601D
- 24Lock 05E103623G
- 25Vent 05E103157C
- 28Separator 05E103464G
- 28Separator 05E103464J
- 30Seal 04C103161F
- 31Flange 05E103151B
- 32Screw N10672001
- 33Seal 04C103085C
- 34Bolt N91108701
- 38Seal Ring WHT008034
- 39Bungs 04E103037D
- 40Bungs 04E103033J
- 41Seal 05E103517E
- 41Seal 05E103517S
Vehicle fitment table16
Europe (16)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| fabia | 2021- | 18 | |
| Taigo | 2021-2024 | 18 | |
| Kamiq | 2019- | 18 | |
| T-Roc convertible 1.5 | 2019-2024 | 18 | |
| Audi A1 sportback 1.0 | 2018- | 18 | 1 |
| T-Cross 1,0 | 2018-2024 | 18 | |
| Audi Q3 quattro | 2018-2019 | 18 | 1 |
| Arona FR | 2017- | 18 | |
| Ibiza FR | 2017- | 18 | |
| T-Roc BlueMotion | 2017-2024 | 18 | |
| Tiguan 2.0 4Motion | 2017-2024 | 18 | |
| Karoq | 2017-2022 | 18 | |
| Ateca Style | 2016- | 18 | |
| Tiguan 2.0 4Motion | 2016-2024 | 18 | |
| Audi Q2 2.0 TDI | 2016-2018 | 18 | 1 |
| Touran 2,0 BlueMotion | 2015-2024 | 18 |
Diagrams & fitment data powered by oemdiagrams.com
Engine Oil Sump Lower Part is fitted on: fabia 2021-; Taigo 2021-2024; Kamiq 2019-; T-Roc convertible 1.5 2019-2024; Audi A1 sportback 1.0 2018-; T-Cross 1,0 2018-2024; Audi Q3 quattro 2018-2019; Arona FR 2017-; Ibiza FR 2017-; T-Roc BlueMotion 2017-2024; Tiguan 2.0 4Motion 2017-2024; Karoq 2017-2022; Ateca Style 2016-; Tiguan 2.0 4Motion 2016-2024; Audi Q2 2.0 TDI 2016-2018; Touran 2,0 BlueMotion 2015-2024.
