06F145702CX Exhaust Manifold With Turbocharger
- 06F145702CXThis pageNot stocked
Dec 2024 - 06F145702CCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

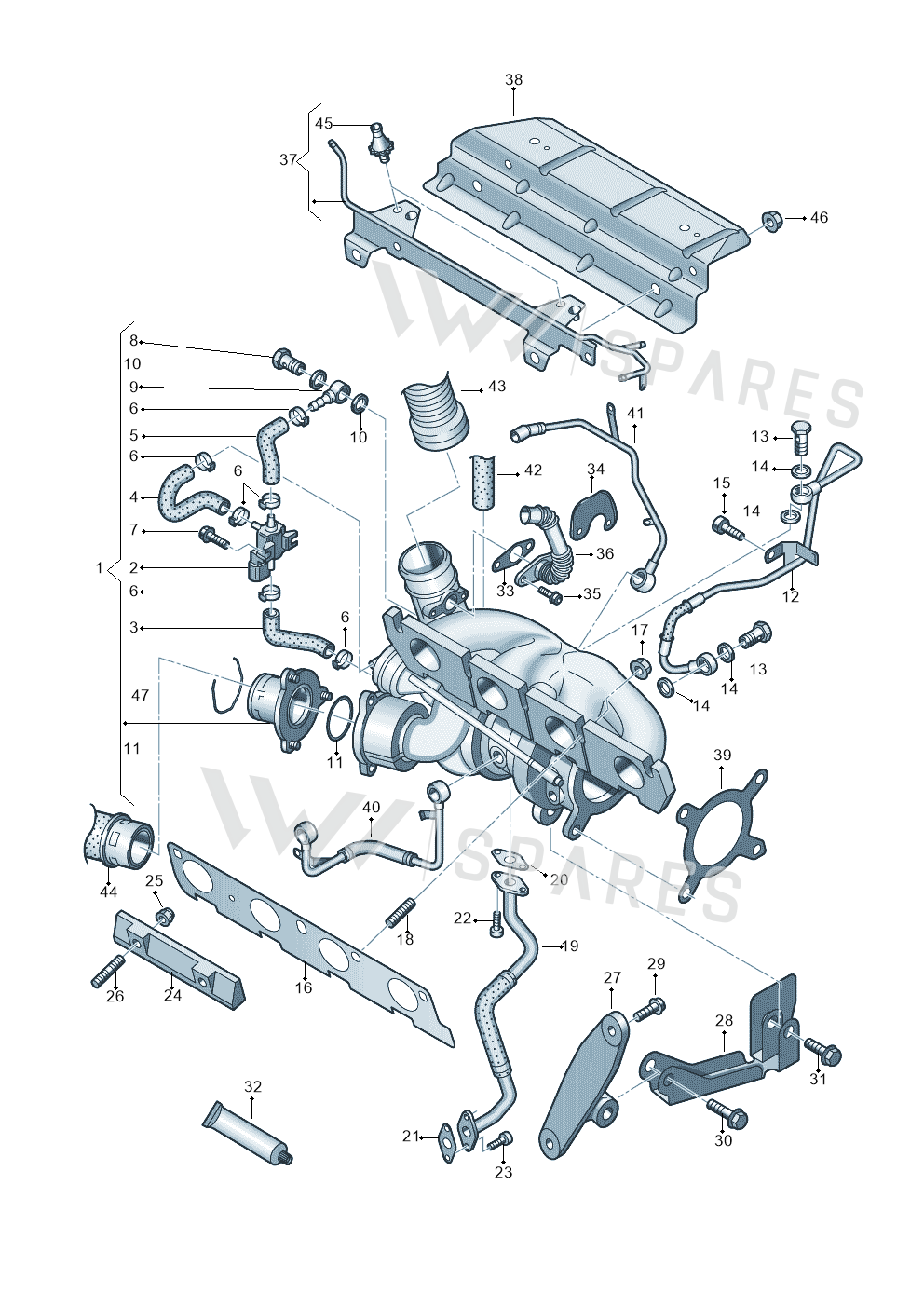

15 vehiclesExhaust Manifold With Turbocharger — locate Exhaust Manifold With Turbocharger in the official exploded view and explore the surrounding assembly.
Parts in this assembly40
- 1Turbo 06F145702C
- 2Valve 06F906283F
- 3Hose 06F145718S
- 4Hose 06F145718Q
- 5Hose 06F145718R
- 6Clamp 3C0131483
- 7Screw N10459201
- 8Screw N91043801
- 9Connection 063133662B
- 10Seal Ring N0138302
- 12Oil Pipe 06F145778G
- 13Screw WHT000223
- 14Seal Ring N0138514
- 15Screw N0901173
- 16Seal 06F253039F
- 17Ut Hexagon Nut Self-locking Hexagon Nut N90894601
- 18Bolt N0145555
- 19Oil Pipe 06F145735F
- 20Seal 06F145757L
- 21Seal 058145757A
- 22Screw N01470213
- 23Screw N10613601
- 24Bracket 06F253709A
- 26Bolt 06F103397
- 27Support 06F145533B
- 28Support 06F145536E
- 29Screw N90292903
- 30Bolt N0903487
- 31Bolt N01024718
- 32Paste G052112A3
- 33Seal 06F145757F
- 34Insulation 06F129686
- 35Screw N10347003
- 37Bracket 06F145317H
- 38Cover 06F129597F
- 45Ball Joint WHT000898A
- 46Bolt N10265202
- 46Bolt N10642107
- 46Collar Nut N01508210
- 47Clip 1K0145769B
Vehicle fitment table15
Europe (13)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Scirocco 2.0 | 2014-2017 | 1 | 1 | ||
| Golf Cabriolet | 2011-2016 | 1 | 1 | ||
| Golf | 2011-2013 | 1 | 1 | ||
| Audi A1 Sportback | 2010-2015 | 1 | 1 | ||
| Audi TTS Coupe 2.0 | 2010-2014 | 1 | 1 | TA2 | |
| Leon Stylance | 2010-2012 | 1 | 1 | TA2 | |
| Scirocco 2.0 | 2008-2014 | 1 | 1 | ||
| Audi A3 Sportback | 2008-2013 | 1 | 1 | CDLA,CDLC | TA2 |
| golf 2.0 | 2008-2011 | 1 | 1 | TA2 | |
| Audi TT Coupe/Roadster 08> | 2007- | 1 | 1 | TA2 | |
| Audi A3/S3/Sportb./qu. 08 | 2007- | 1 | 1 | BHZ,BZC | TA2 |
| LEON 06> | 2005- | 1 | 1 | BWJ,CDLD | |
| Audi A3/S3/quattro | 2005-2007 | 1 | 1 | BHZ,BZC | TA2 |
Other markets (2)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Golf/Rabbit 08> | 2007- | 1 | 1 | BYD | TA2 |
| Golf/Rabbit | 2005-2007 | 1 | 1 | BYD | TA2 |
Diagrams & fitment data powered by oemdiagrams.com
Exhaust Manifold With Turbocharger is fitted on: Scirocco 2.0 2014-2017; Golf Cabriolet 2011-2016; Golf 2011-2013; Audi A1 Sportback 2010-2015; Audi TTS Coupe 2.0 2010-2014; Leon Stylance 2010-2012; Scirocco 2.0 2008-2014; Audi A3 Sportback 2008-2013; golf 2.0 2008-2011; Audi TT Coupe/Roadster 08> 2007-; Audi A3/S3/Sportb./qu. 08 2007-; LEON 06> 2005-; Audi A3/S3/quattro 2005-2007; Golf/Rabbit 08> 2007-; Golf/Rabbit 2005-2007.
