Product overview

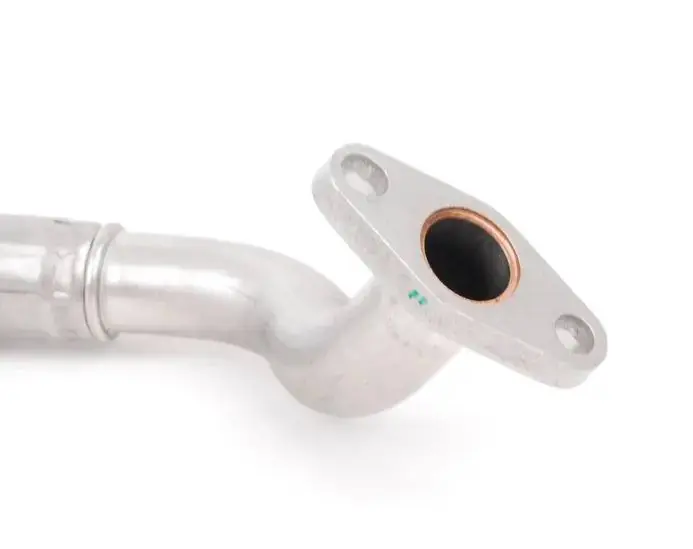

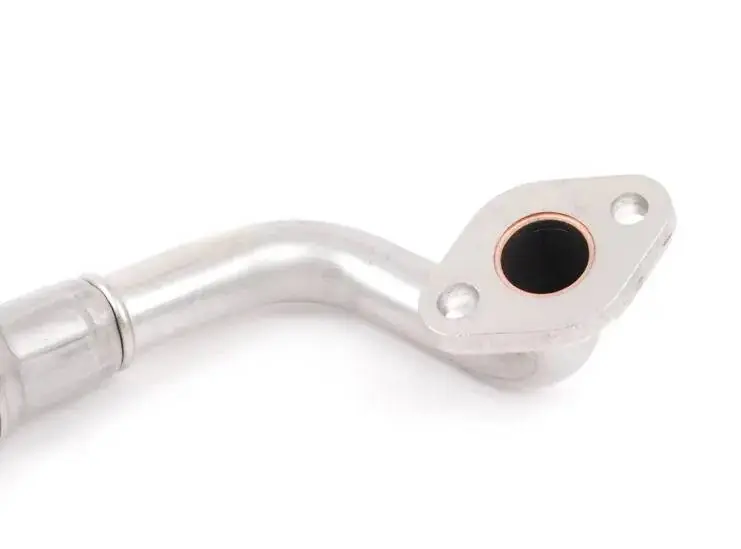

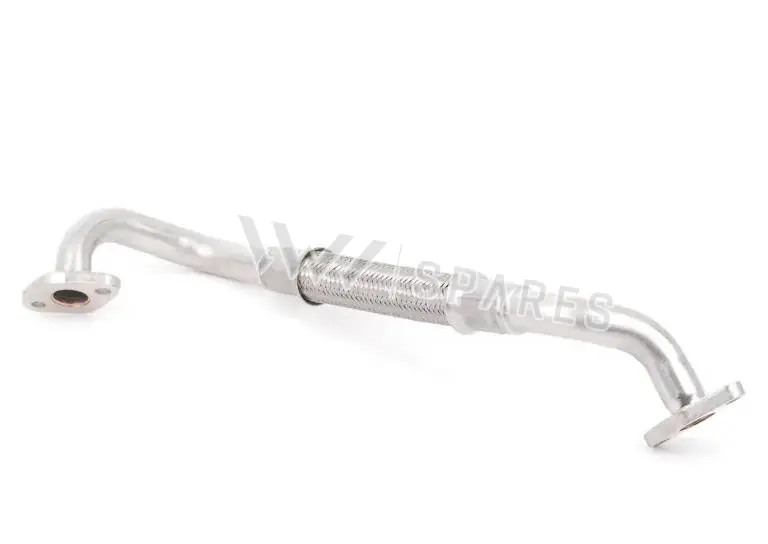

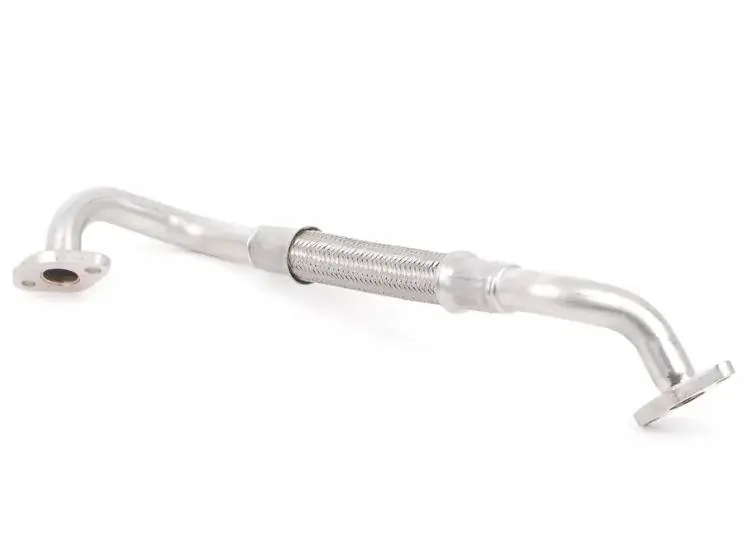

Genuine OEM Audi Return Oil Pipe, part number 06F145735D. This pipe is an essential component of the engine's lubrication system, responsible for returning oil from various engine components back to the oil pan or reservoir. It features a flexible braided section to accommodate engine vibrations and thermal expansion. Weighing 0.286 kg and measuring approximately 0.33m in length, it is constructed from durable metal with flanged ends for secure connections. Using a genuine OEM oil pipe ensures correct routing, material integrity, and leak-free connections, vital for maintaining proper engine lubrication and preventing oil leaks.
Technical details
- Category
- Engine
- Country of origin
- Germany
- Customs (HS) code
- 84099100
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 33 × 16 × 8 cm
- Shipping weight
- 0.29 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
20 vehiclesOil Pipe — locate 06F145735D Audi Return Oil Pipe | Engine Lubrication in the official exploded view and explore the surrounding assembly.
Superseded by N0138514 — the current replacement part (via 06F145757C).
Parts in this assembly44
- 1Turbo 06F145701HX
- 1Turbo 06F145701H
- 2Valve 06F906283F
- 3Valve 06H145710D
- 3Valve 06F145710G
- 4Hose 06F145718S
- 5Hose 06F145718Q
- 6Hose 06F145718R
- 7Bracket 06F103943F
- 8Bolt N0445203
- 9Oil Pipe 06F145778G
- 10Screw N01470213
- 11Screw WHT000223
- 12Seal Ring N0138514
- 15Support 06F145533B
- 16Screw N90292903
- 17Support 06F145536C
- 18Bolt N01024710
- 19Bolt N0903487
- 20Oil Pipe 06F145735F
- 21Seal 06F145757H
- 23Seal 058145757A
- 24Screw N10086304
- 25Seal 06F253039F
- 26Collar Nut N90200201
- 27Seal 1K0253115AB
- 28Collar Nut N10286108
- 29Clip 1J0145769D
- 32Seal 06F145757F
- 33Screw N10347003
- 34Clip N90409601
- 34Clip N90739901
- 35Insulation 06F129686
- 36Screw N91043801
- 37Seal Ring N0138302
- 38Clamp N10203601
- 39Bracket 06F145317H
- 40Cover 06F129597F
- 41Bolt N10265202
- 42Screw N91009701
- 43Screw N10459201
- 46Paste G052112A3
- 47Bolt N10546404
- 48Bolt N90444602
Compatible / alternative parts(12)
Vehicle fitment table20
Europe (17)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| jetta | 2008-2011 | 20 | 1 | ||
| EOS 2.0 | 2008-2010 | 20 | 1 | T59 | |
| GOLF VARIANT 07> | 2007- | 20 | 1 | ||
| Passat/4Motion 08 | 2007- | 20 | 1 | T59 | |
| Audi TT Coupe/Roadster 08> | 2007- | 20 | 1 | T59 | |
| Audi A3/S3/Sportb./qu. 08 | 2007- | 20 | 1 | ||
| EOS-Cabriolet-Coupe | 2006- | 20 | 1 | ||
| JETTA 06> | 2006- | 20 | 1 | PR:G0K+G1A | |
| ALTEA 07> | 2006- | 20 | 1 | PR:G0K+G1A | |
| JETTA 06> | 2005- | 20 | 1 | ||
| LEON 06> | 2005- | 20 | 1 | PR:G0K+G1A | T59 |
| Passat/4Motion | 2005-2007 | 20 | 1 | T59 | |
| Audi A3/S3/quattro | 2005-2007 | 20 | 1 | T59 | |
| TOLEDO 05> | 2004- | 20 | 1 | PR:G0K+G1A | |
| OCTAVIA/COMBI/4X4 04> | 2004- | 20 | 1 | BWA | D2L |
| ALTEA | 2004-2006 | 20 | 1 | PR:G0K+G1A | |
| GOLF | 2003-2005 | 20 | 1 | PR:G0K,1GA |
Other markets (3)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Golf/Rabbit 08> | 2007- | 20 | 1 | PR:G0K,G1A | |
| Jetta "USA"05> | 2005- | 20 | 1 | ||
| Golf/Rabbit | 2005-2007 | 20 | 1 | PR:G0K,G1A |
Diagrams & fitment data powered by oemdiagrams.com
06F145735D Audi Return Oil Pipe | Engine Lubrication is fitted on: jetta 2008-2011; EOS 2.0 2008-2010; GOLF VARIANT 07> 2007-; Passat/4Motion 08 2007-; Audi TT Coupe/Roadster 08> 2007-; Audi A3/S3/Sportb./qu. 08 2007-; EOS-Cabriolet-Coupe 2006-; JETTA 06> 2006-; ALTEA 07> 2006-; JETTA 06> 2005-; LEON 06> 2005-; Passat/4Motion 2005-2007; Audi A3/S3/quattro 2005-2007; TOLEDO 05> 2004-; OCTAVIA/COMBI/4X4 04> 2004-; ALTEA 2004-2006; GOLF 2003-2005; Golf/Rabbit 08> 2007-; Jetta "USA"05> 2005-; Golf/Rabbit 2005-2007.
