Product overview

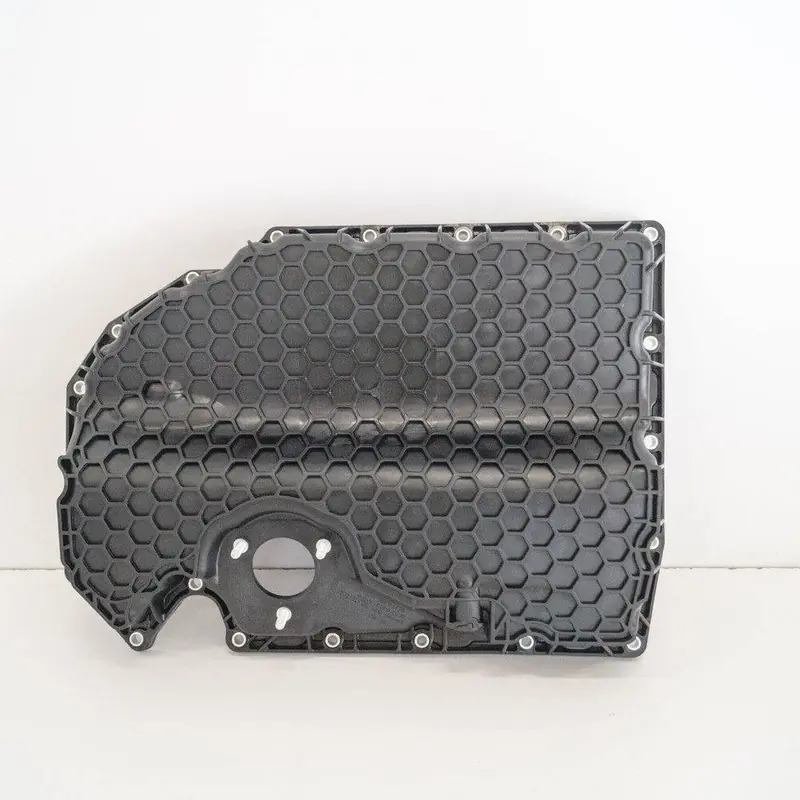

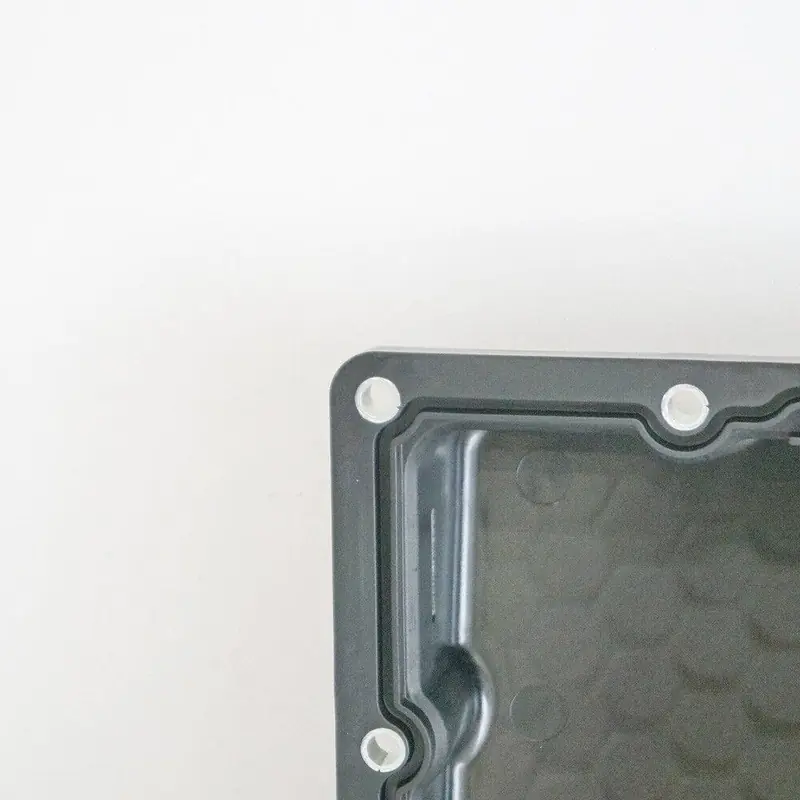

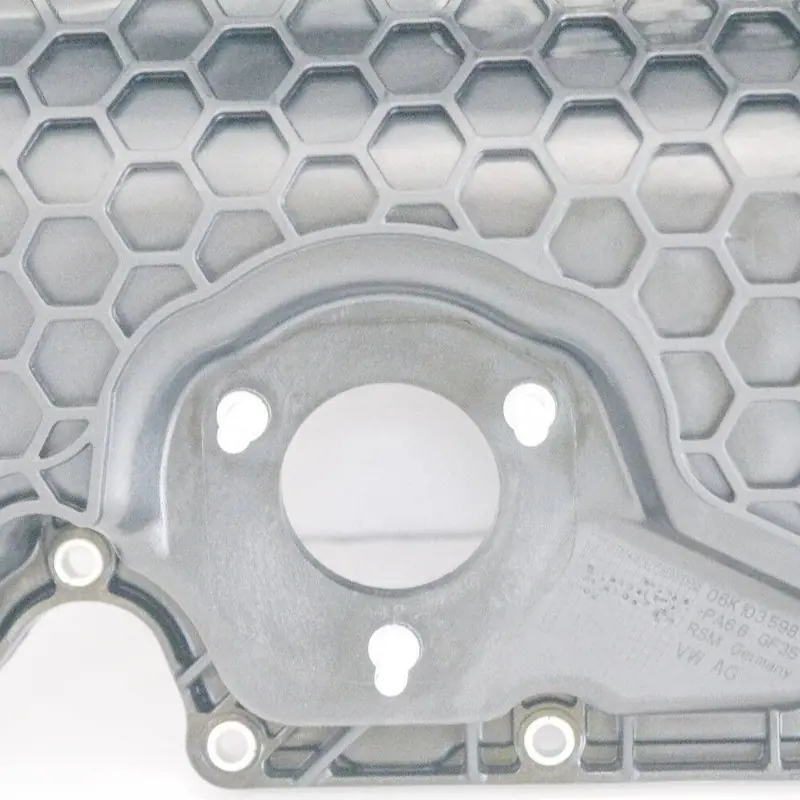

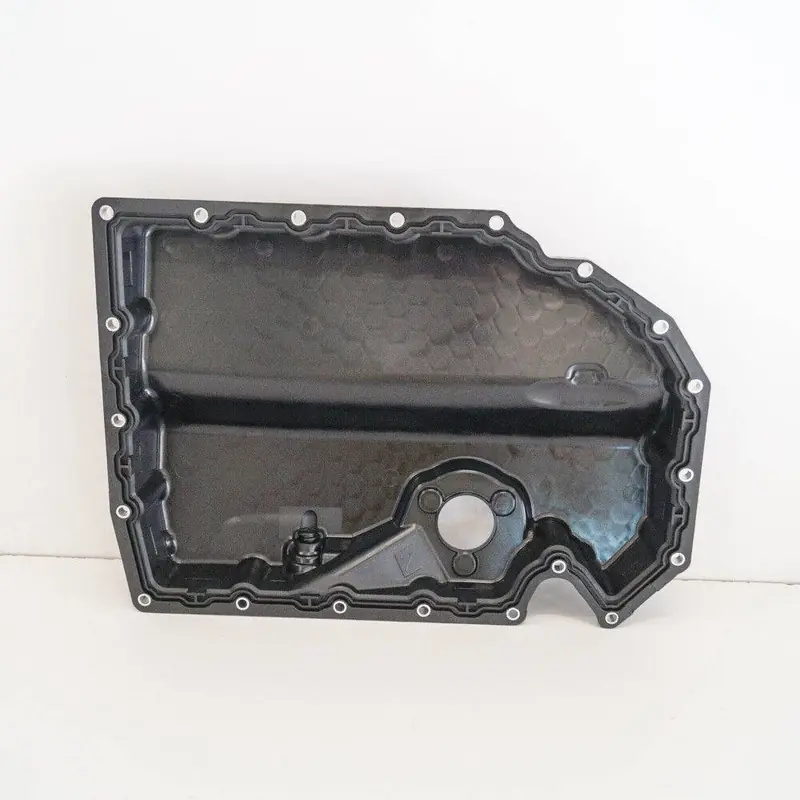

Genuine OEM Audi Engine Oil Pan, part number 06K103600AE. This critical component is located at the bottom of the engine, serving as a reservoir for engine oil, which is vital for lubrication and cooling. Weighing 0.856 kg, this oil pan is manufactured to precise factory specifications, ensuring a perfect seal and proper oil capacity for reliable engine operation.
Catalogue entry: OIL SUMP.
Fitted with: 06K103138P INSERT, N10839701 BOLT, N0282222 seal ring, N01508210 COLLAR NUT, 06L103801 BOLT, 06K103649 GASKET, D176501A1 SEAL.
Technical details
- Category
- Engine
- Country of origin
- Germany
- Customs (HS) code
- 84099100
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 38.5 × 28.5 × 8.5 cm
- Shipping weight
- 0.86 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
19 vehiclesOil Sump-lower Part — locate 06K103600AE Audi Engine Oil Pan | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly18
- 1Oil Sump 06K103600R
- 2Oil Sump 06K103603BF
- 2Oil Sump 06K103603Q
- 3Insert 06K103138E
- 4Bolt N10347204
- 5Screw N91173601
- 7Seal Ring N0282222
- 8Collar Nut N01508210
- 9Bolt N91211201
- 10Screw N10766301
- 11Screw N10765501
- 13Part 06K115243B
- 13ASeal Ring N91056801
- 14Part 06L103801
- 14Part 06L103801D
- 15Seal D176501A1
- 19Gasket 06K103649
- 21Screw N91127901
Compatible / alternative parts(12)
Vehicle fitment table19
Europe (17)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Kodiaq | 2024- | 1 | 1 | |
| Tiguan 2.0 | 2023- | 1 | 1 | |
| Formentor TSI CUPRA | 2020- | 1 | 1 | |
| Leon style | 2019- | 1 | 1 | |
| Golf 2.0 BlueMotion | 2019-2024 | 1 | 1 | |
| Octavia | 2019-2024 | 1 | 1 | |
| Audi A3 Sportback | 2019-2021 | 1 | 1 | |
| Audi A1 sportback 1.0 | 2018- | 1 | 1 | |
| Audi Q3 quattro | 2018-2019 | 1 | 1 | |
| Arteon | 2017-2023 | 1 | 1 | |
| Ateca Style | 2016- | 1 | 1 | |
| Audi A3 Sportback | 2016-2020 | 1 | 1 | |
| Audi A3 Cabrio | 2016-2020 | 1 | 1 | |
| Leon ST Stylance | 2016-2020 | 1 | 1 | |
| Audi Q2 2.0 TDI | 2016-2018 | 1 | 1 | |
| Passat saloon | 2014-2024 | 1 | 1 | |
| Audi TTS Coupe 2.0 | 2014-2023 | 1 | 1 |
Other markets (2)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Audi A3 Limousine 2.0 | 2015-2016 | 1 | 1 | D60 |
| POLO HATCH "ZA"06> | 2005- | 1 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
06K103600AE Audi Engine Oil Pan | Genuine OEM is fitted on: Kodiaq 2024-; Tiguan 2.0 2023-; Formentor TSI CUPRA 2020-; Leon style 2019-; Golf 2.0 BlueMotion 2019-2024; Octavia 2019-2024; Audi A3 Sportback 2019-2021; Audi A1 sportback 1.0 2018-; Audi Q3 quattro 2018-2019; Arteon 2017-2023; Ateca Style 2016-; Audi A3 Sportback 2016-2020; Audi A3 Cabrio 2016-2020; Leon ST Stylance 2016-2020; Audi Q2 2.0 TDI 2016-2018; Passat saloon 2014-2024; Audi TTS Coupe 2.0 2014-2023; Audi A3 Limousine 2.0 2015-2016; POLO HATCH "ZA"06> 2005-.
