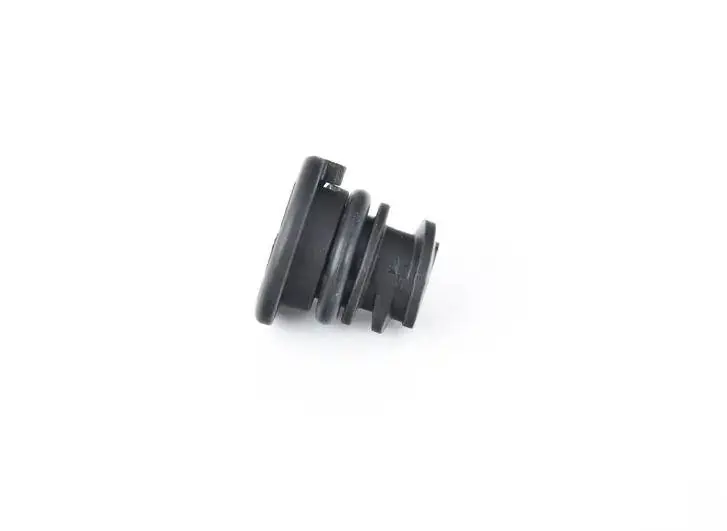

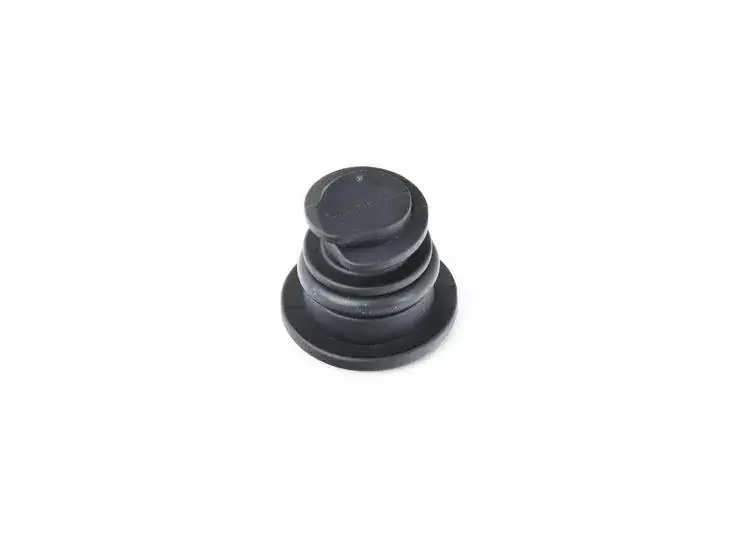

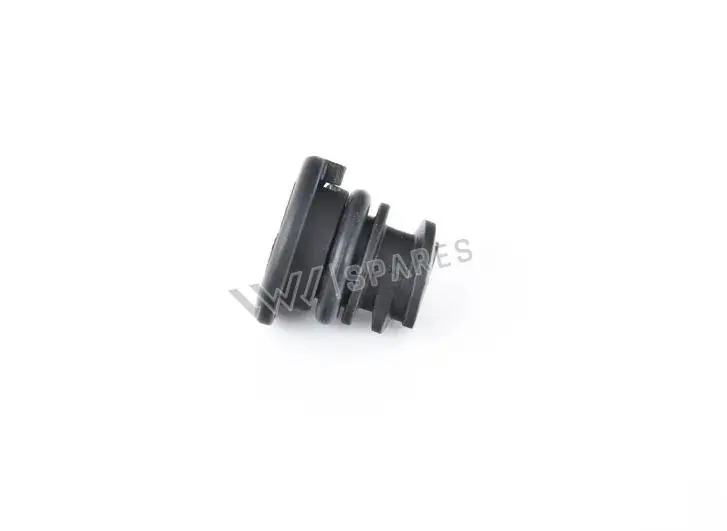

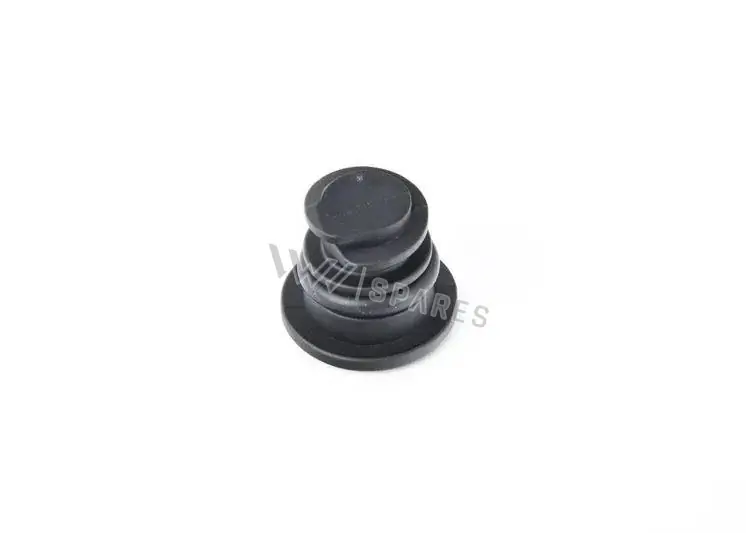

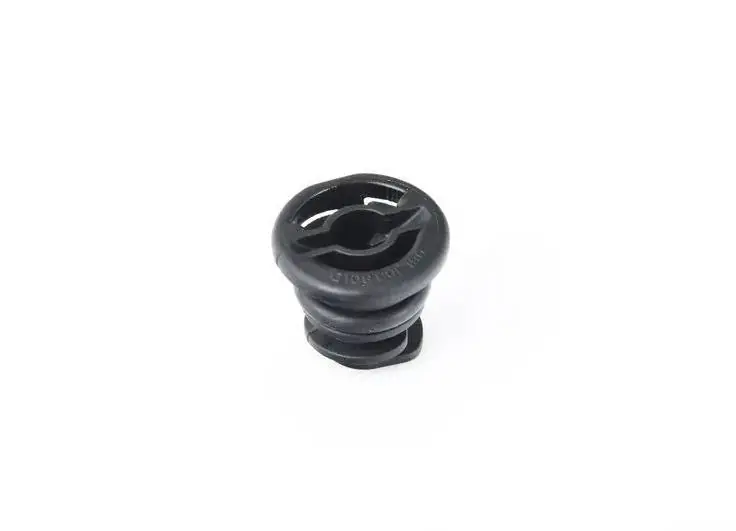

Genuine OEM Audi Plastic Oil Drain Plug with Seal, part number 06L103801D. This plug is designed to securely seal the oil pan and facilitate clean oil drainage during maintenance. It features an integrated seal for optimal leak prevention. Made from durable plastic, it measures approximately 0.023 m in diameter and weighs 0.0041 kg. Using a genuine OEM oil drain plug ensures the correct thread fit, material integrity, and sealing properties, preventing oil leaks and maintaining engine lubrication.
Catalogue entry: BOLT; OPTIONAL 06L 103 801.
Fitted with: 06K907637B OEL SENSOR, 06L103801 BOLT, 038103196C seal ring, 038103196D seal ring, N01508210 COLLAR NUT, 06K103600R OIL SUMP, 06K103600AE OIL SUMP.
Technical details
- Category
- Engine
- Country of origin
- Germany
- Customs (HS) code
- 39269097
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 2.3 × 2.3 × 2 cm
- Shipping weight
- 0 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
- Engine codes
- CZPB, CZRA, DJHA, DJHB, DKZA, DNUE
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist

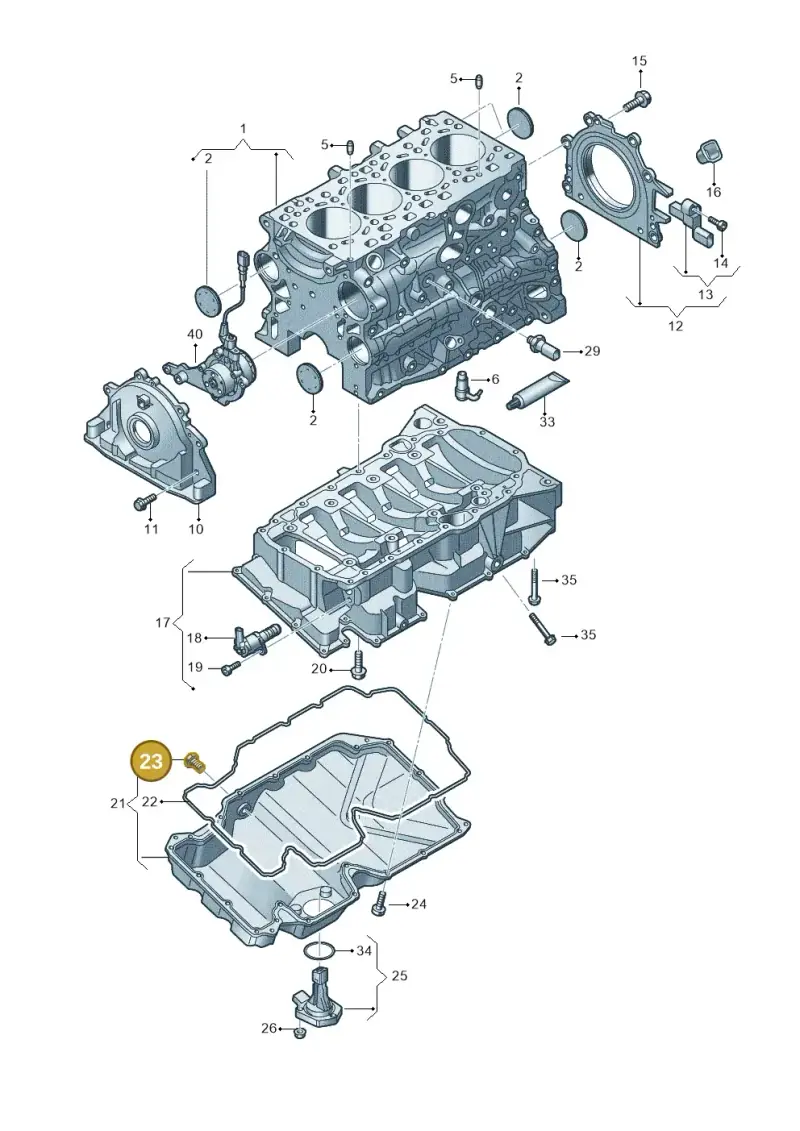

Parts diagram & fitment

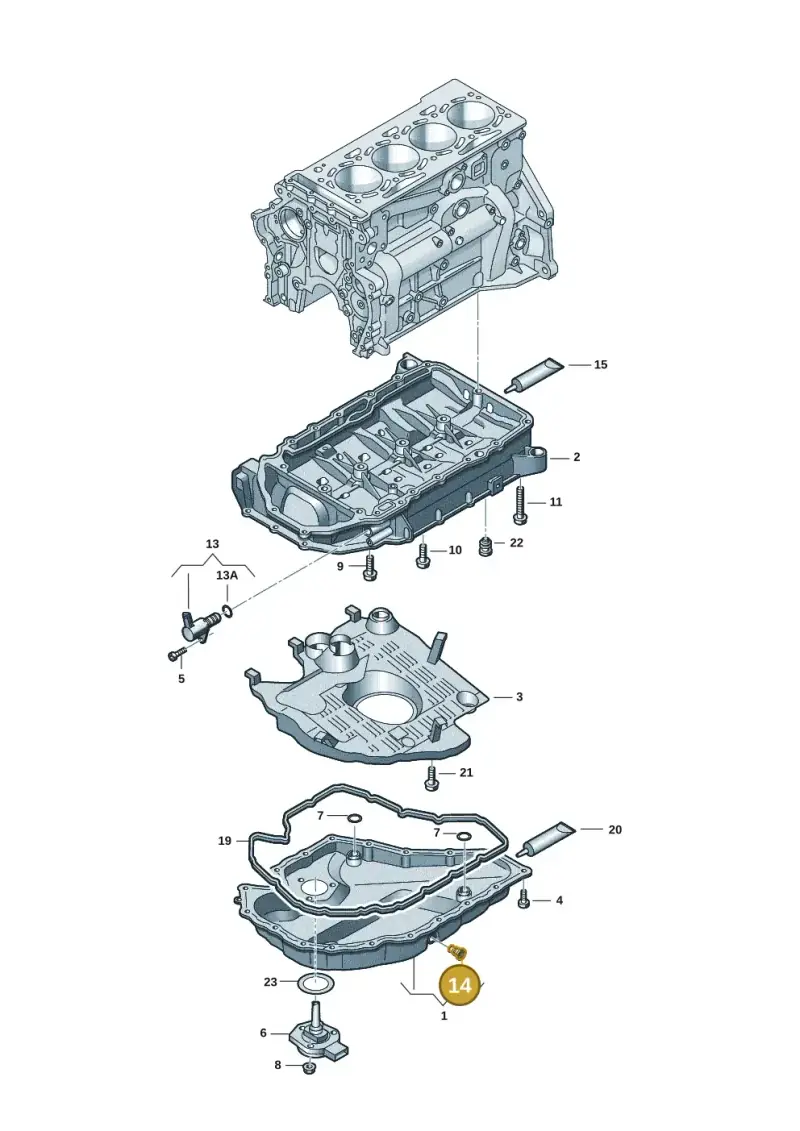

33 vehiclesOil Drain Plug With Seal — locate 06L103801D Audi Plastic Oil Drain Plug with Seal | Engine Oil System in the official exploded view and explore the surrounding assembly.
Parts in this assembly48
- 1Cylinder Head 05E103063F
- 1Oil Sump 06K103600AE
- 1Oil Sump 06K103600R
- 2Oil Sump 06K103603CQ
- 2Cover N01191410
- 3Insert 06K103138P
- 4Bolt N10347204
- 4Bungs N90802703
- 5Bolt N10087802
- 5Bolt N91071702
- 5Screw N91173601
- 6Seal 04E103383CC
- 6Oel Sensor 06K907637B
- 7Seal Ring N0282222
- 8Collar Nut N01508210
- 8Screw WHT007089
- 9Part 026103139
- 9Bolt N91211201
- 10Cylinder Head 04E103469DH
- 10Screw N10766301
- 11Seal 04E103483S
- 11Screw N10765501
- 12Seal 04E103085AF
- 13Cover 05E103485C
- 13Cover 05E103485J
- 13Valve 06K115243L
- 13ASeal Ring N91056801
- 14Part 06L103801
- 15Seal D176501A1
- 15Bolt N91254301
- 17Seal 04E103085C
- 18Pulley 04E109111AP
- 19Gasket 06K103649J
- 19Screw N10689301
- 20Valve 04E906048A
- 21Valve 04E906455AC
- 21Bolt N10196104
- 21Screw N91168701
- 22Protection 04E109121D
- 22Protection 04E109121N
- 22Bungs 06K103035
- 23Seal Ring 038103196C
- 23Seal Ring 038103196D
- 23Screw N91097201
- 24Sender 05E907601D
- 29Cover 04C103335
- 30Bolt N91096701
- 31Seal Ring N90467301
Compatible / alternative parts(5)
Vehicle fitment table33
Europe (31)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Audi A3 Sportback | 2019-2021 | 14 | |

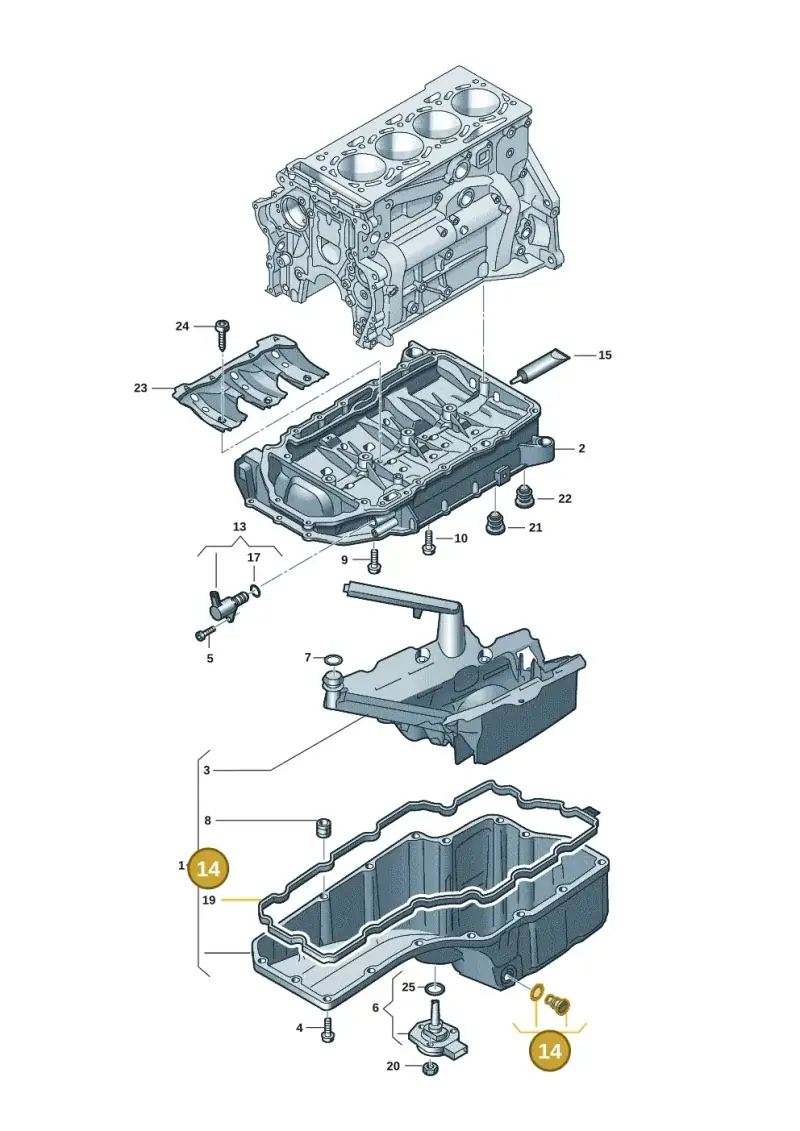

| Audi Q8 Quattro 3,0 | 2018- | 14 | |
| audi a6 2.0 | 2018- | 23, 14 | 1 |
| Audi A7 Sportback | 2018- | 23, 14 | |
| Audi A1 sportback 1.0 | 2018- | 14 | |
| Audi Q3 quattro | 2018-2019 | 14 | |
| Tiguan 2.0 4Motion | 2017-2024 | 14 | 1 |
| Audi A8L | 2017-2022 | 14 | |

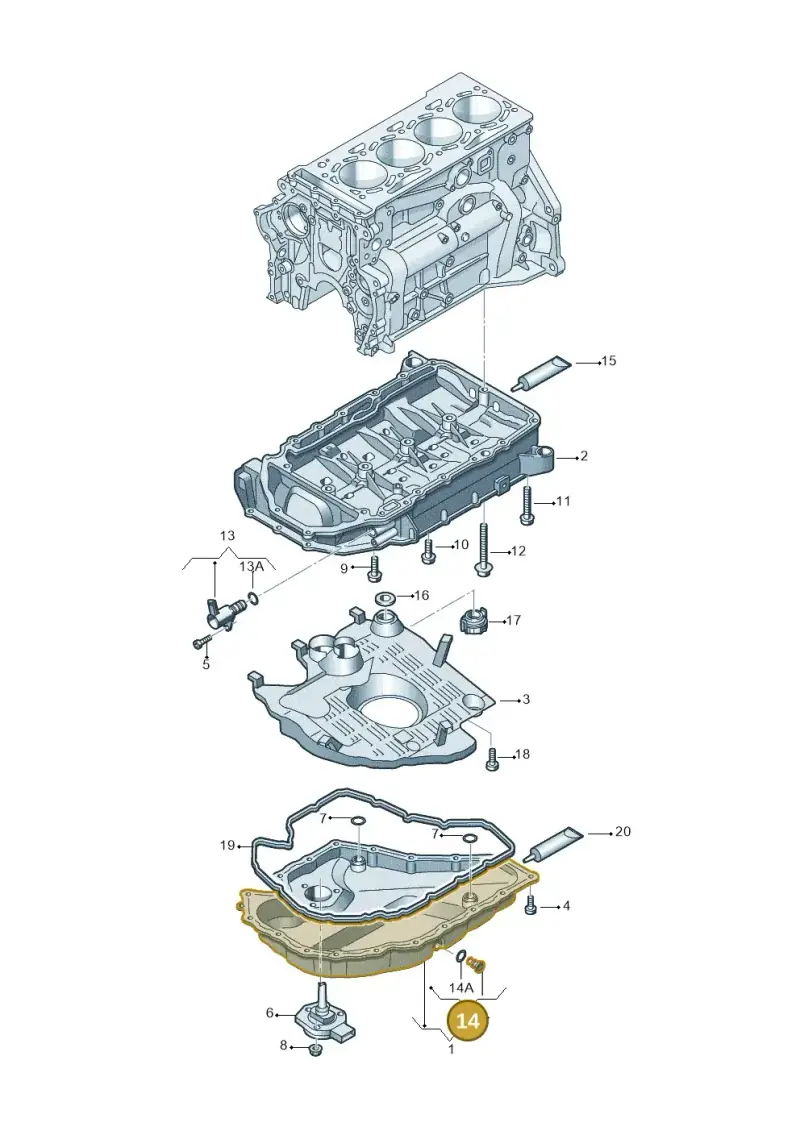

| Audi A3 Sportback | 2016-2020 | 14, 23 | |
| Audi A3 Cabrio | 2016-2020 | 14, 23 | |
| Audi Q5 | 2016-2020 | 23, 14 | 1 |
| Audi A5 Sportback | 2016-2020 | 14, 23 | |
| Leon ST Stylance | 2016-2020 | 14 | 1 |
| Audi Q2 2.0 TDI | 2016-2018 | 14 | |
| Audi A5 Cabrio 2.0 | 2016-2018 | 23, 14 | |
| audi a4 2.0 | 2015-2019 | 14, 23 | |
| Audi Q7 qu. 3.0 TDI | 2015-2019 | 14 | |
| golf 1.6 | 2015-2019 | 14 | 1 |
| Audi TTS Coupe 2.0 | 2014-2023 | 14 | |
| Audi A7 Sportback | 2014-2018 | 14 | |
| Audi A1 Sportback | 2014-2018 | 14, 20 | |
| audi a6 qu. 3.0 tdi | 2014-2018 | 14 | |
| Audi A8L qu. 3.0 TDI | 2013-2018 | 14 | |
| Audi A3 Cab. 1.4 | 2013-2016 | 14 | |
| Audi Q5 qu. 2.0 TDI | 2012-2017 | 14, 23 | |
| Audi A3 Sportback | 2012-2016 | 14 | |
| Audi A5 Sportback | 2011-2017 | 14, 23 | |
| Audi A5 Cabrio 2.0 | 2011-2017 | 14, 23 | |
| audi a4 av. 2.0 tdi | 2011-2015 | 14, 23 | |
| audi a6 2.0 tdi | 2010-2015 | 23 | |
| Audi A4 Av. Allroad | 2008-2016 | 14 |
Other markets (2)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Jetta 1.4 | 2017-2024 | 14 | 1 |
| POLO HATCH "ZA"06> | 2005- | 14 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
06L103801D Audi Plastic Oil Drain Plug with Seal | Engine Oil System is fitted on: Audi A3 Sportback 2019-2021; Audi Q8 Quattro 3,0 2018-; audi a6 2.0 2018-; Audi A7 Sportback 2018-; Audi A1 sportback 1.0 2018-; Audi Q3 quattro 2018-2019; Tiguan 2.0 4Motion 2017-2024; Audi A8L 2017-2022; Audi A3 Sportback 2016-2020; Audi A3 Cabrio 2016-2020; Audi Q5 2016-2020; Audi A5 Sportback 2016-2020; Leon ST Stylance 2016-2020; Audi Q2 2.0 TDI 2016-2018; Audi A5 Cabrio 2.0 2016-2018; audi a4 2.0 2015-2019; Audi Q7 qu. 3.0 TDI 2015-2019; golf 1.6 2015-2019; Audi TTS Coupe 2.0 2014-2023; Audi A7 Sportback 2014-2018; Audi A1 Sportback 2014-2018; audi a6 qu. 3.0 tdi 2014-2018; Audi A8L qu. 3.0 TDI 2013-2018; Audi A3 Cab. 1.4 2013-2016; Audi Q5 qu. 2.0 TDI 2012-2017; Audi A3 Sportback 2012-2016; Audi A5 Sportback 2011-2017; Audi A5 Cabrio 2.0 2011-2017; audi a4 av. 2.0 tdi 2011-2015; audi a6 2.0 tdi 2010-2015; Audi A4 Av. Allroad 2008-2016; Jetta 1.4 2017-2024; POLO HATCH "ZA"06> 2005-.
