06K145707B Heat Insulation
- 06K145707BThis pageNot stocked
Jun 2014 - 06K145707CCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

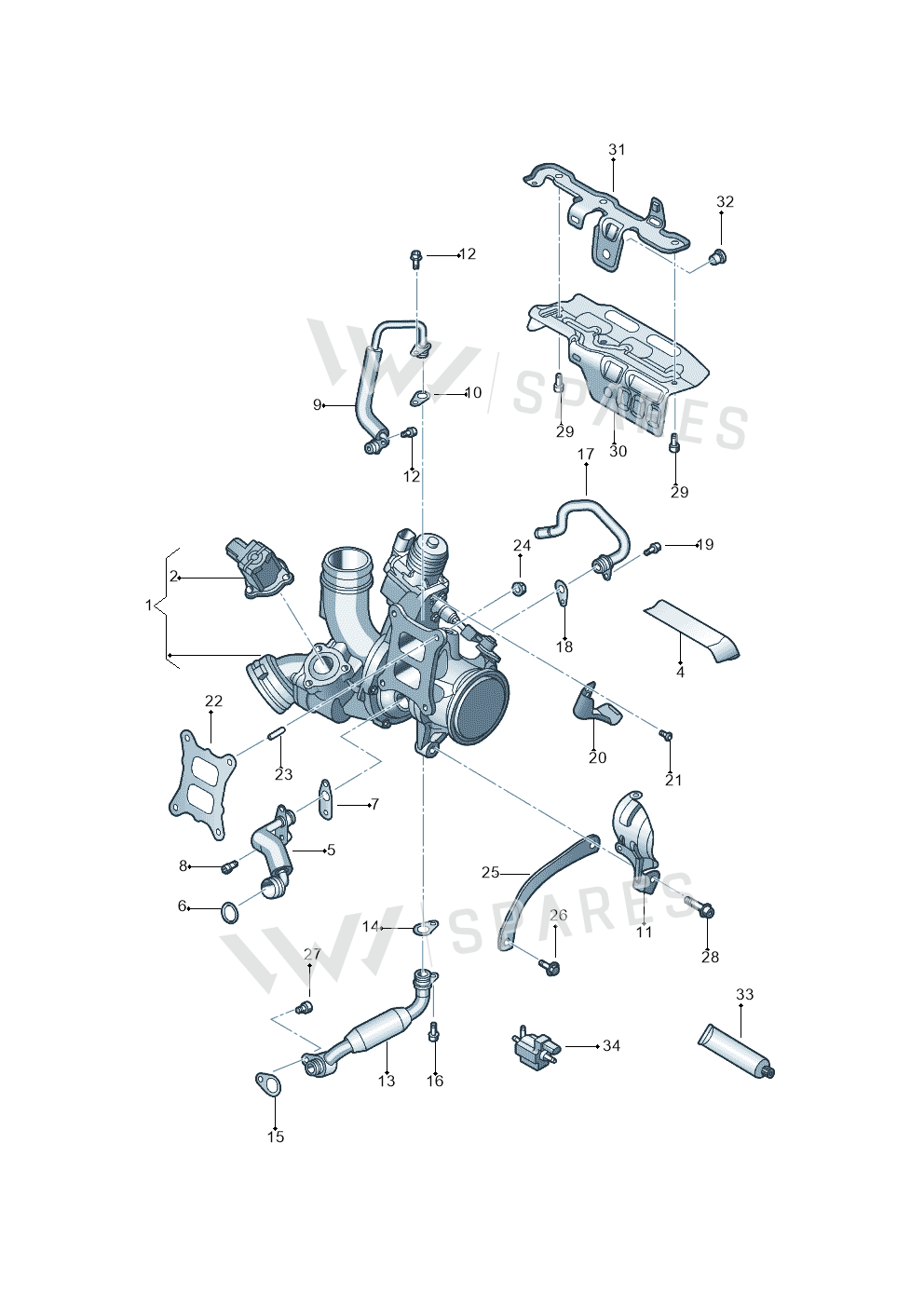

3 vehiclesHeat Insulation — locate Heat Insulation in the official exploded view and explore the surrounding assembly.
Parts in this assembly32
- 1Turbo 06K145721KX
- 1Turbo 06K145722D
- 1Turbo 06K145721K
- 2Valve 06H145710C
- 4Heat Insul 06K133833AL
- 5Water Pipe 06K121497AC
- 6Seal Ring WHT006124
- 7Seal Ring WHT006114
- 8Screw N10619201
- 9Oil Pipe 06K145778AB
- 10Seal Ring N90067202
- 11Plate 06K145787C
- 13Oil Pipe 06K145735L
- 14Seal Ring WHT006113
- 15Seal Ring WHT006112
- 17Water Pipe 06K121492M
- 17Water Pipe 06K121492K
- 20Plate 06K145707C
- 21Bolt N10680801
- 22Seal 06L253039
- 22Seal 06L253039A
- 23Bolt N91231701
- 23Bolt N91145003
- 24Collar Nut N91130801
- 25Support 06K145536B
- 26Bolt N90643907
- 27Screw N10610902
- 28Screw N91103701
- 30Plate 06K145325A
- 31Retainer 06K145383
- 32Screw N10637901
- 33Paste G052112A3
Vehicle fitment table3
Europe (3)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| new beetle | 2011-2016 | 20 | 1 |
| new beetle cabriolet | 2011-2016 | 20 | 1 |
| jetta | 2010-2014 | 20 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Heat Insulation is fitted on: new beetle 2011-2016; new beetle cabriolet 2011-2016; jetta 2010-2014.
