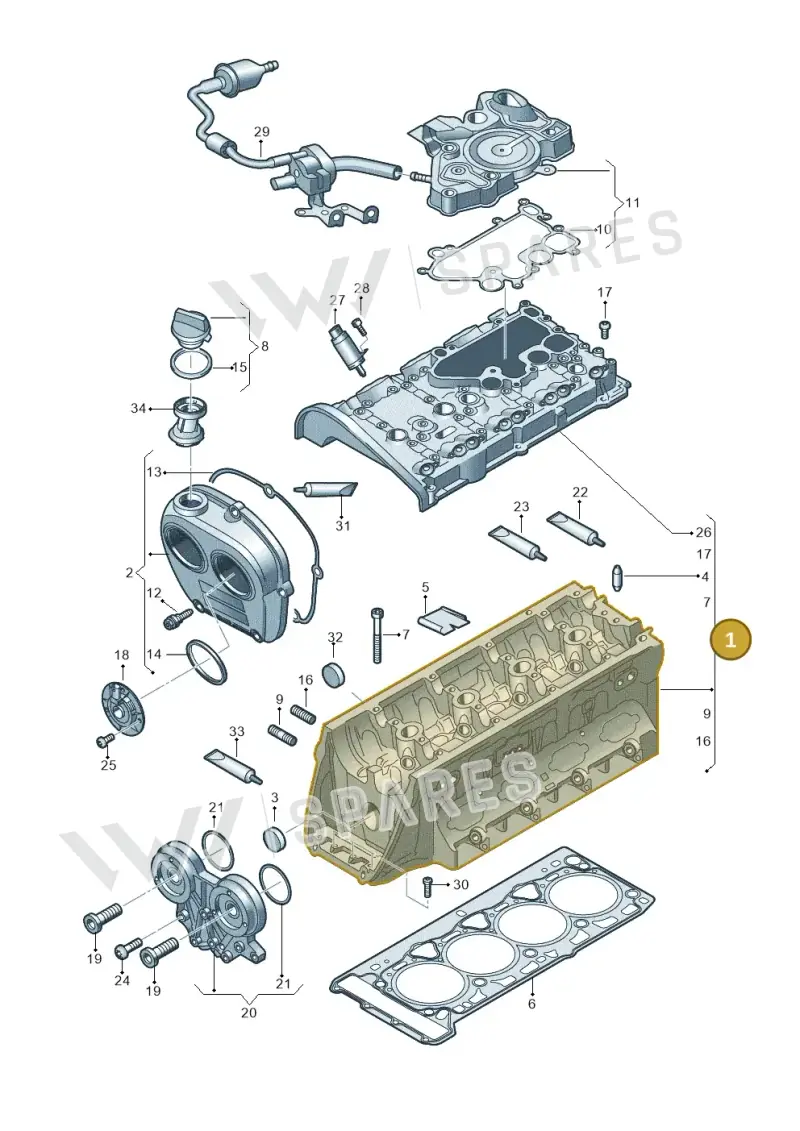

Number 1 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Complete Cylinder Head, part number 06L103063R. This cylinder head forms the upper part of the engine, sealing the cylinders and housing the valves, camshafts, and spark plug (if applicable). Its precise machining ensures proper sealing of combustion gases and coolant passages, critical for engine performance and longevity. The exact material composition and dimensional accuracy of genuine OEM cylinder heads are vital for heat dissipation and preventing warping.
Catalogue entry: CYL.HEAD; Item/items; 17.
Fitted with: 06L103063RX CYL.HEAD, 036103113A COVER, 06L103383B SEAL, 06K103484F SEAL, 06K103483 SEAL, 06K103583 SEAL, WHT007212B SEAL. RING, D154103A1 SEALANT, N10156206 BOLT.
Technical details
- Category
- Engine
- Customs (HS) code
- 84099100
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 46 × 22 × 25 cm
- Shipping weight
- 18 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
Equipment codes
- only with7GH
- only with7MJ
- only with7MM
- only with7MR
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
8 vehiclesCylinder Head — locate 06L103063R Volkswagen Complete Cylinder Head | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly37
- 1Part 06L103063RX
- 2Cover 06K103269F
- 3Cover 036103113A
- 4Part 06D103251
- 5Partition 06L103411A
- 6Seal 06L103383B
- 7Bolt WHT005305B
- 7Bolt WHT009271
- 8Cover 06K103485C
- 8Cover 06K103485D
- 9Bolt N91145003
- 10Seal 06K103484B
- 11Separator 06K103495AP
- 12Bolt 06J103831
- 13Seal 06L103483A
- 14Seal 06L103583C
- 15Seal 036115111B
- 16Bolt N10770201
- 17Screw N10554005
- 18Magnet 06L109259D
- 19Valve 06K109257H
- 19Valve 06L109257H
- 20Bracket 06L103144K
- 20Bracket 06L103144L
- 21Seal Ring WHT007212B
- 22Part D200005A2
- 22Locking D000600A2
- 23Sealant D154103A1
- 24Screw N91232801
- 25Bolt N10751201
- 27Adjuster 06E103697AE
- 28Screw N10622502
- 30Bolt N10156206
- 31Seal D174003M2
- 32Cover N01190710
- 33Locking D200002A1
- 34Pipe 06K103281A
