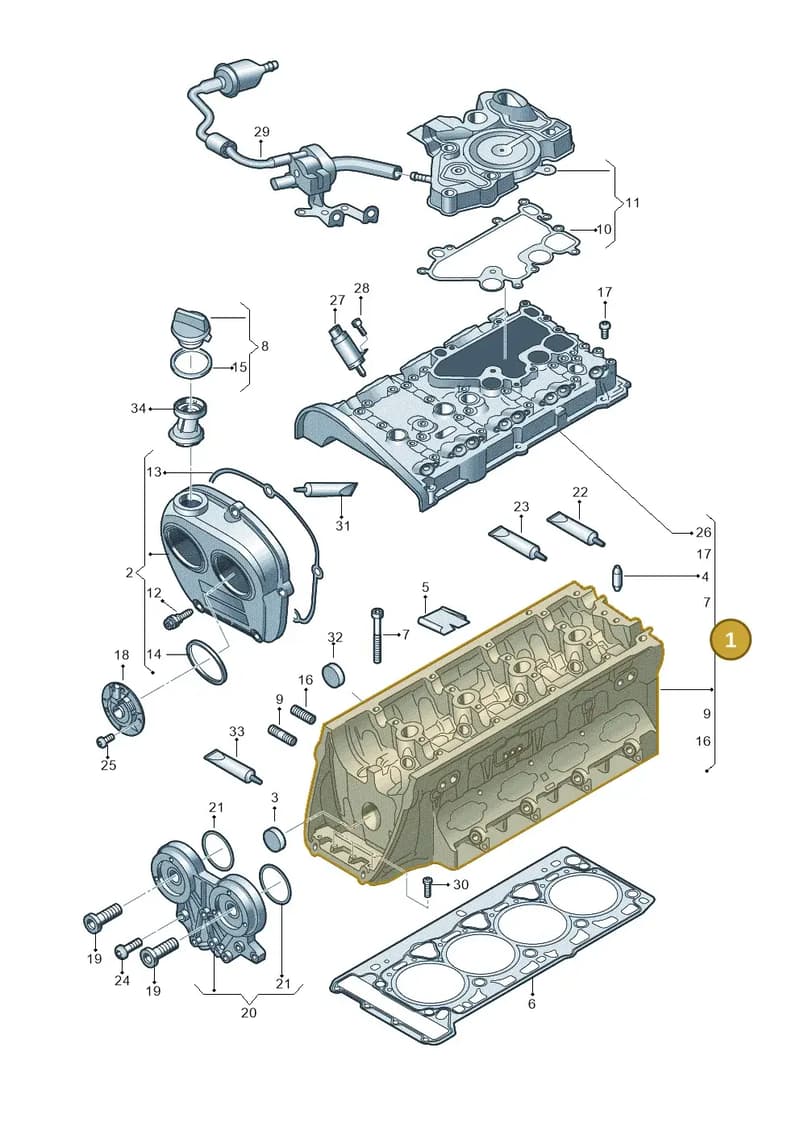

Number 1 marks the part’s position in this exploded view (Volkswagen Tiguan (2017-)).
Other diagrams in the gallery may use a different number for the same part.
Product overview
Genuine OEM Audi Cylinder Head, part number 06L103063RX. Fits Volkswagen Tiguan (2017), Volkswagen Passat Saloon (2014-2024). Shown as position 1 in the engine diagram 863103500.
Catalogue entry: CYL.HEAD; Item/items; 17.
Fitted with: 06L103063R CYL.HEAD, 036103113A COVER, 06L103383B SEAL, 06K103484F SEAL, 06K103483 SEAL, 06K103583 SEAL, WHT007212B SEAL. RING, D154103A1 SEALANT, N10156206 BOLT.
Technical details
- Category
- Engine
- Diagram sheet
- Volkswagen 863103500, position 1
- ETKA group
- 1 / 03 (103)
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
Equipment codes
- only with7GH
- only with7MJ
- only with7MM
- only with7MR
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
5 vehiclesCylinder Head — locate 06L103063RX Audi Cylinder Head in the official exploded view and explore the surrounding assembly.
Parts in this assembly37
- 1Part 06L103063R
- 2Cover 06K103269F
- 3Cover 036103113A
- 4Part 06D103251
- 5Partition 06L103411A
- 6Seal 06L103383B
- 7Bolt WHT005305B
- 7Bolt WHT009271
- 8Cover 06K103485C
- 8Cover 06K103485D
- 9Bolt N91145003
- 10Seal 06K103484B
- 11Separator 06K103495AP
- 12Bolt 06J103831
- 13Seal 06L103483A
- 14Seal 06L103583C
- 15Seal 036115111B
- 16Bolt N10770201
- 17Screw N10554005
- 18Magnet 06L109259D
- 19Valve 06K109257H
- 19Valve 06L109257H
- 20Bracket 06L103144K
- 20Bracket 06L103144L
- 21Seal Ring WHT007212B
- 22Part D200005A2
- 22Locking D000600A2
- 23Sealant D154103A1
- 24Screw N91232801
- 25Bolt N10751201
- 27Adjuster 06E103697AE
- 28Screw N10622502
- 30Bolt N10156206
- 31Seal D174003M2
- 32Cover N01190710
- 33Locking D200002A1
- 34Pipe 06K103281A
Vehicle fitment table5
Europe (3)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Tiguan 2.0 4Motion | 2017-2024 | 1 | |
| Passat saloon | 2014-2024 | 1 | 1 |
| Golf 1.4 BlueMotion | 2012-2017 | 1 | 1 |
Other markets (2)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Jetta 1.4 | 2017-2024 | 1 | |
| POLO HATCH "ZA"06> | 2005- | 1 |
