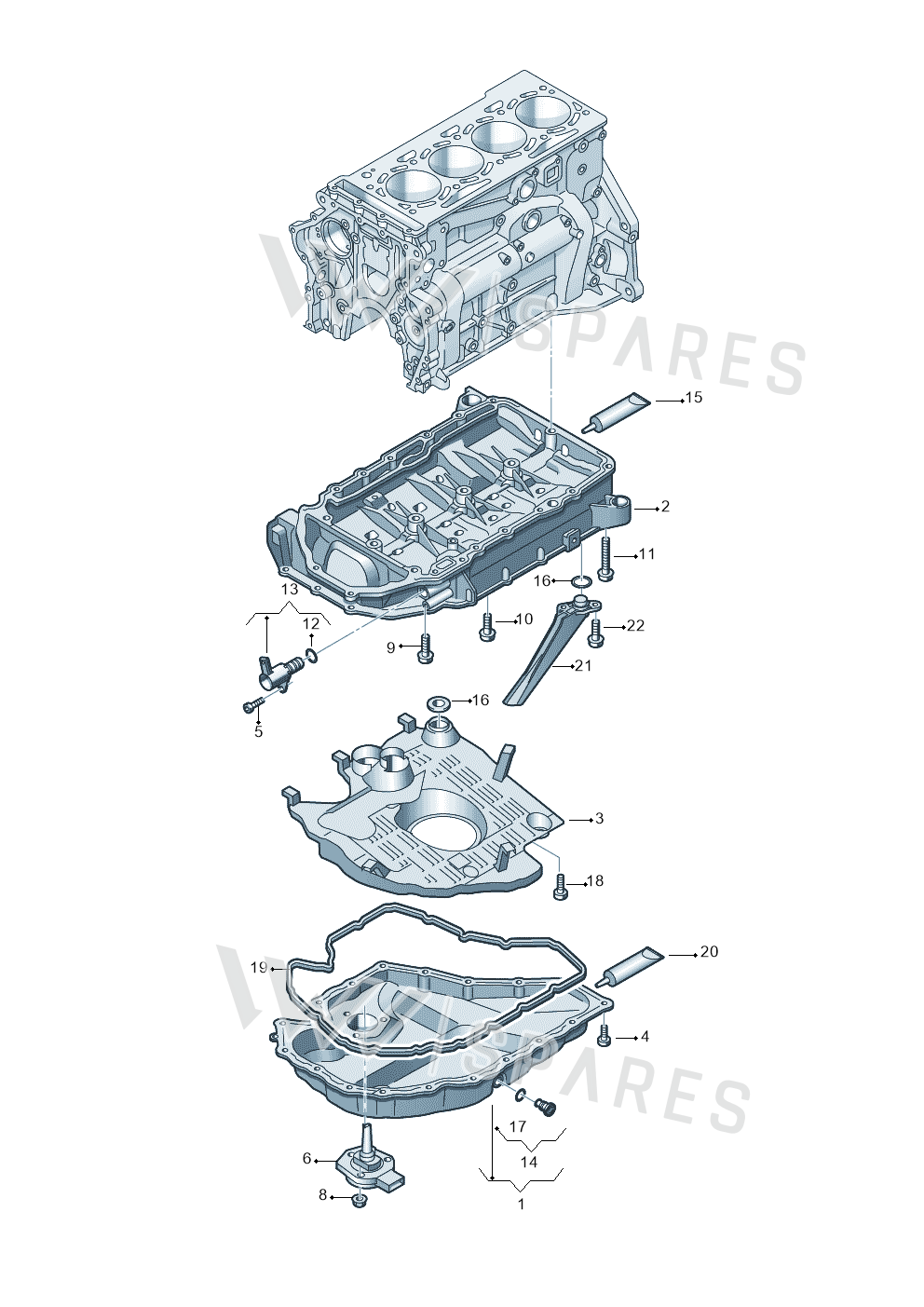

Engine Oil Sump Upper Part exploded parts diagram — Audi Q5 qu. 2.0 TDI · 2012-2017, position 2
Exploded view
Audi Q5 qu. 2.0 TDI · 2012-2017 · position 2Full diagram ↓
06L103603M

06L103603M Engine Oil Sump Upper Part

£182.00
£150.41 excl. VAT
Supersession road5 numbers since 2011
  1. 06L103603GNot stocked
    Aug 2011
  2. 06L103603JNot stocked
    Jul 2013
  3. 06L103603MThis pageNot stocked
    Aug 2014
  4. 06L103603AANot stocked
    Feb 2015
  5. 06L103603AFCurrent number
Current part number06L103603AFWhat the manufacturer supplies todayOrder
Availability: No longer supplied under this number

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Contact us with your VIN
Genuine OEM Parts
Direct from manufacturer
Secure Ordering
Safe and protected checkout

Parts diagram & fitment

5 vehicles

Engine Oil Sump Upper Part — locate Engine Oil Sump Upper Part in the official exploded view and explore the surrounding assembly.

Parts in this assembly19
Vehicle fitment table5

Europe (5)

VehicleYearsPos.QtyPR
Audi Q5 qu. 2.0 TDI2012-201721
Audi A5 Sportback2011-20172n
Audi A5 Cabrio 2.02011-20172n
audi a4 av. 2.0 tdi2011-20152
Audi A4 Av. Allroad2008-201621DF7

Diagrams & fitment data powered by oemdiagrams.com

Engine Oil Sump Upper Part is fitted on: Audi Q5 qu. 2.0 TDI 2012-2017; Audi A5 Sportback 2011-2017; Audi A5 Cabrio 2.0 2011-2017; audi a4 av. 2.0 tdi 2011-2015; Audi A4 Av. Allroad 2008-2016.
