070109210A Timing Case
Special order item. Delivery time may vary.
About This Part
Discontinued by the manufacturer
This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

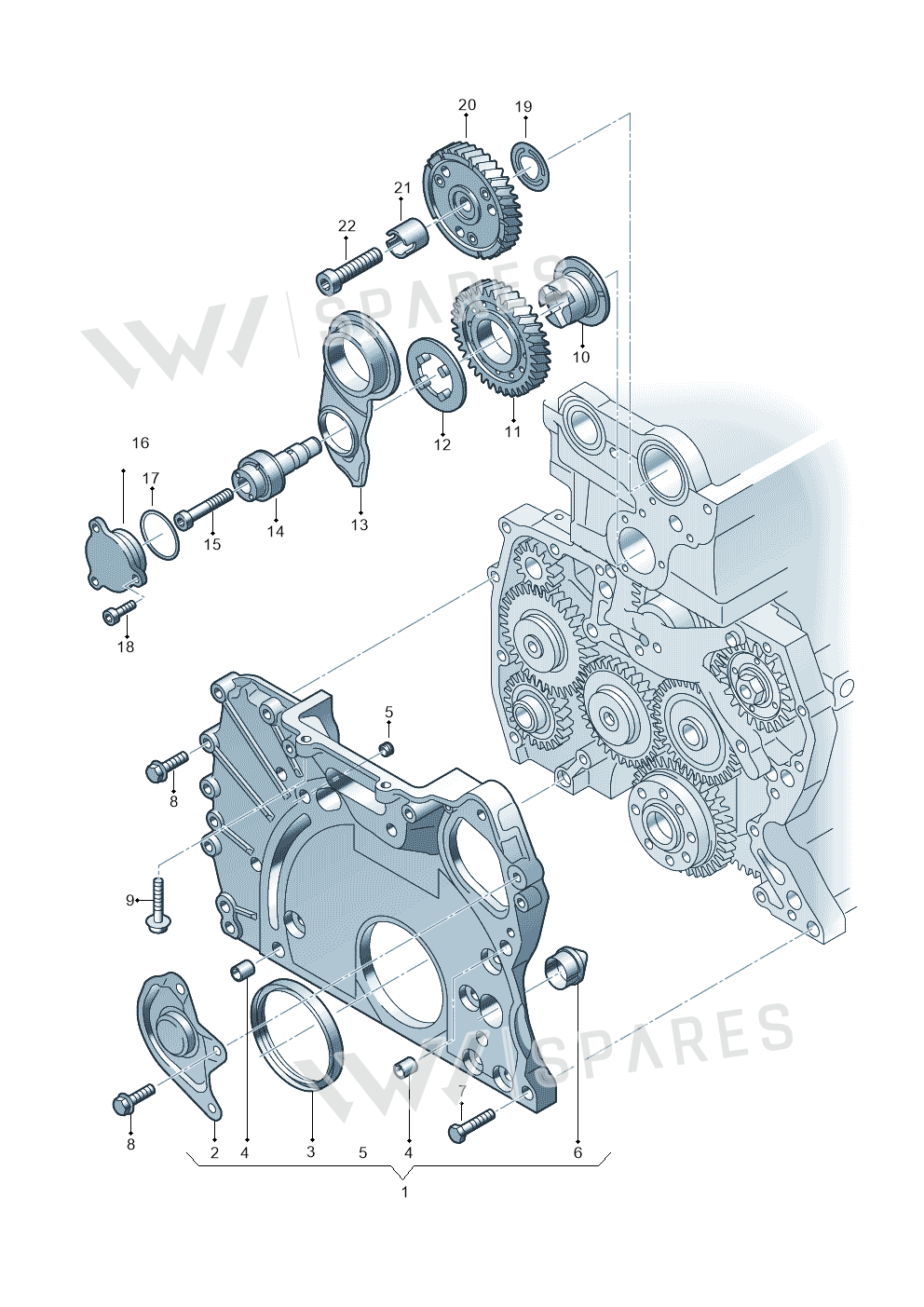

3 vehiclesTiming Case — locate Timing Case in the official exploded view and explore the surrounding assembly.
Parts in this assembly20
- 2Cover 070109153
- 3Seal 070103051A
- 4Sleeve 070103347
- 5Seal Ring 070109293B
- 7Bolt N10156009
- 8Bolt N10306504
- 9Bolt N91059801
- 10Sleeve 070109313
- 11Gear 070109202G
- 12Washer 070109149
- 13Strap 070109216B
- 14Part 070109253
- 15Screw N90948501
- 16Cover 070109283
- 17Seal Ring N90200903
- 18Screw N90898007
- 19Washer 070109421A
- 20Gear 070109232
- 21Bush 070109341
- 22Screw N10521701
Vehicle fitment table3
Europe (3)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Touareg 08> | 2007- | 1 | 1 | TP7 |
| Touareg | 2005-2006 | 1 | 1 | T03 |
| Touareg | 2003-2005 | 1 | 1 | T03 |
Diagrams & fitment data powered by oemdiagrams.com
Timing Case is fitted on: Touareg 08> 2007-; Touareg 2005-2006; Touareg 2003-2005.
