070131512D Radiator
- 070131512DThis pageNot stocked
Dec 2006 - 070131512FCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

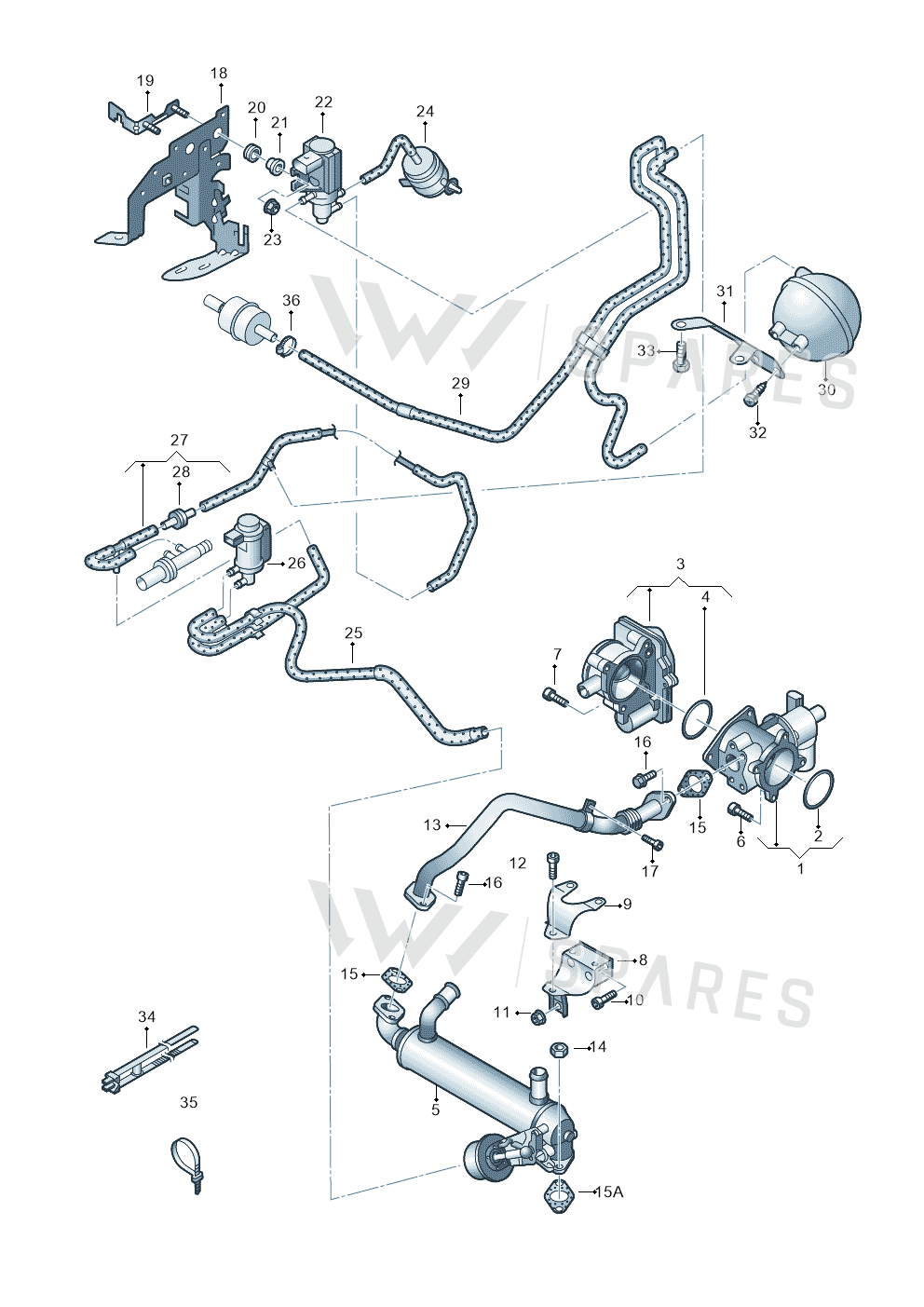

8 vehiclesRadiator — locate Radiator in the official exploded view and explore the surrounding assembly.
Parts in this assembly34
- 1Valve 076131501B
- 2Seal Ring WHT002224
- 3Thr Flap 076128063A
- 4Seal Ring WHT002223
- 5Radiator 070131512F
- 6Screw N91099101
- 7Bolt N10619302
- 8Retaining 070131535F
- 9Retaining 070131535G
- 10Screw N10644901
- 11Collar Nut N01508213
- 12Bolt N90440706
- 13Pipe 070131521AC
- 14Ut Hexagon Nut Self-locking Hexagon Nut N90894601
- 15Seal 069131547D
- 15ASeal 038131547A
- 16Screw N90986102
- 18Retaining 7L6906257
- 19Bracket 2D0906285G
- 20Grommet 046131887
- 21Spacer 052129734
- 22Converter 1K0906627E
- 24Hose 7L6129482S
- 25Hose 7L6129482R
- 26Valve 1K0906283A
- 27Hose 7L6129482T
- 28Valve 046905291B
- 29Hose 7L6129482P
- 30Damper 038129807
- 31Retaining 7L6103811C
- 32Bolt N90770002
- 34Binder 4A0820199
- 35Cable Tie 3D0971838N
- 36Clip N10310001
Vehicle fitment table8
Europe (8)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Touareg 08> | 2007- | 5 | 1 |
| TRANSPORTER/4MOTION 07 | 2006-2007 | 7 | 1 |
| TRANSPORTER OFFEN (7J) 07 | 2006-2007 | 7 | 1 |
| CAMPMOBIL (T5) 07 | 2006-2007 | 7 | 1 |
| Touareg | 2005-2006 | 5 | 1 |
| TRANSPORTER/4MOTION 06 | 2005-2006 | 7 | 1 |
| TRANSPORTER 06 | 2005-2006 | 7 | 1 |
| CAMPMOBILE(T5) | 2004-2006 | 7 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Radiator is fitted on: Touareg 08> 2007-; TRANSPORTER/4MOTION 07 2006-2007; TRANSPORTER OFFEN (7J) 07 2006-2007; CAMPMOBIL (T5) 07 2006-2007; Touareg 2005-2006; TRANSPORTER/4MOTION 06 2005-2006; TRANSPORTER 06 2005-2006; CAMPMOBILE(T5) 2004-2006.
