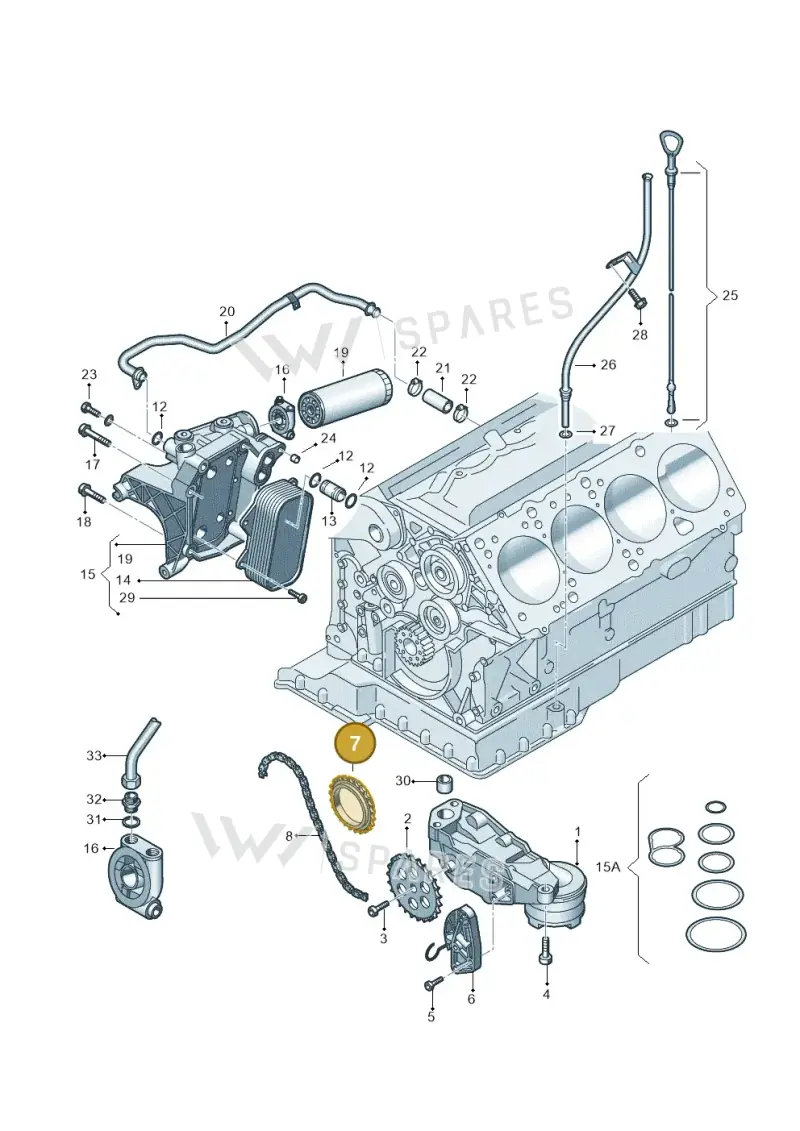

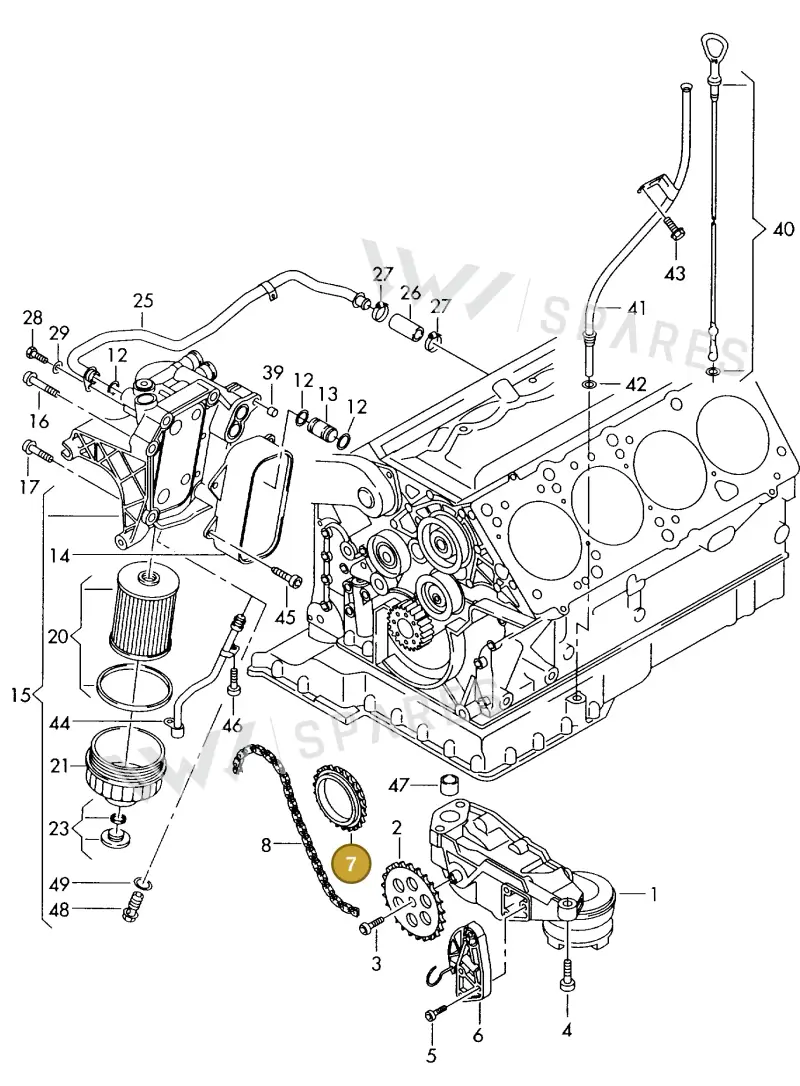

Number 7 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Timing Chain Sprocket, part number 077115121F. This sprocket is a critical component of the timing chain system. Genuine OEM parts ensure precise timing and smooth engine operation.
Technical details
- Category
- Seats
- Customs (HS) code
- 84139100
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 6 × 6 × 1.8 cm
- Shipping weight
- 0.14 kg
Parts diagram & fitment
13 vehiclesChain Sprocket — locate 077115121F Volkswagen Timing Chain Sprocket | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(30)
- 1Oil Pump 077115105J
- 2Chn Sprckt 077115121G
- 3Screw N10468701
- 4Screw N90857801
- 5Screw N01470514
- 6Tensioner 077115124A
- 8Chain 077115125A
- 9Seal Ring 077121437
- 10Water Pipe 077117411A
- 11Oil Cooler 077117021Q
- 12Screw N90590901
- 13Oil Filter 077115401AC
- 13AGask Set 077198405
- 14Sleeve 077115143D
- 15Screw N10468801
- 15Screw N10700001
- 16Screw N90331604
- 16Screw N90331605
- 17AFilterelem 079198405A
- 18Cover 077115433B
- 19Water Pipe 077117412T
- 20Bolt N01021527
- 21Washer N01152426
- 22Oil Dipsti 077115611N
- 23Tube 077115630T
- 24Seal Ring 034115427B
- 25Bolt N10005207
- 25Bolt N10668401
- 32Seal Ring N0138115
- 33Screw N0160243
Diagrams & fitment data powered by oemdiagrams.com
077115121F Volkswagen Timing Chain Sprocket | Genuine OEM is fitted on: Phaeton (lang) 2003-2006; Touareg 2003-2005; 7L6 platform; Touareg 2005-2006; PHAETON 08> 2007-; phaeton 4motion 2008-2010; phaeton 4motion 2010-2016; AUDI A8 1998-2002; Audi A8 quattro 1999-2002; Audi A6/Av.qu.F4B-W-> 1997-2001; Audi A6/Wagon/quattro 2001-2004; Audi RS6 qu. 2003-2004; Audi A8/S8/qu. lang 2003-2007.
