077115125A Drive Chain
- 077115125AThis pageNot stocked
Aug 2011 - 077115125BCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

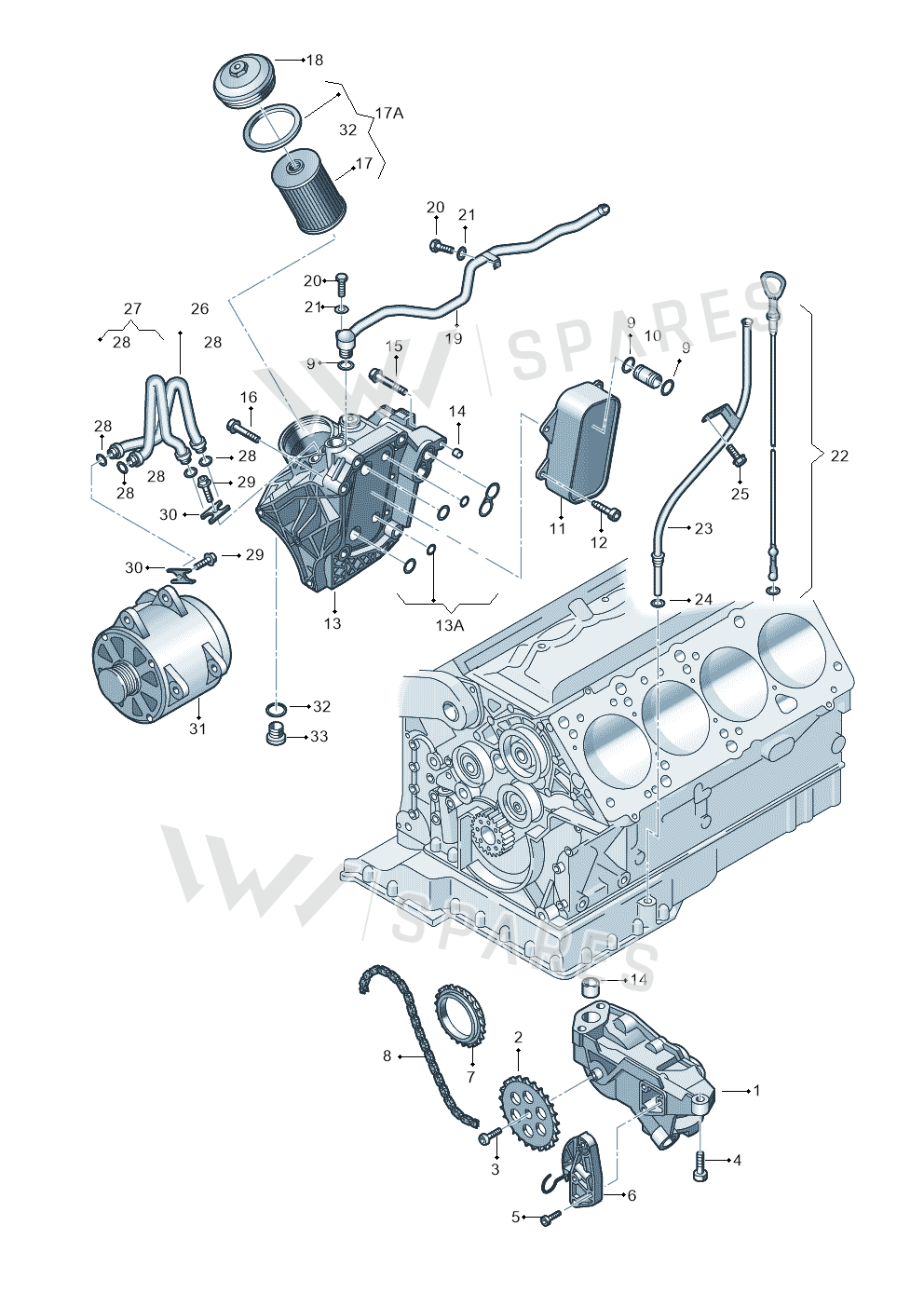

12 vehiclesDrive Chain — locate Drive Chain in the official exploded view and explore the surrounding assembly.
Parts in this assembly30
- 1Oil Pump 077115105J
- 2Chn Sprckt 077115121G
- 3Screw N10468701
- 4Screw N90857801
- 5Screw N01470514
- 6Tensioner 077115124A
- 7Chn Sprckt 077115121F
- 9Seal Ring 077121437
- 10Water Pipe 077117411A
- 11Oil Cooler 077117021Q
- 12Screw N90590901
- 13Oil Filter 077115401AC
- 13AGask Set 077198405
- 14Sleeve 077115143D
- 15Screw N10468801
- 15Screw N10700001
- 16Screw N90331604
- 16Screw N90331605
- 17AFilterelem 079198405A
- 18Cover 077115433B
- 19Water Pipe 077117412T
- 20Bolt N01021527
- 21Washer N01152426
- 22Oil Dipsti 077115611N
- 23Tube 077115630T
- 24Seal Ring 034115427B
- 25Bolt N10005207
- 25Bolt N10668401
- 32Seal Ring N0138115
- 33Screw N0160243
Vehicle fitment table12
Europe (11)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| phaeton 4motion | 2008-2010 | 8 | 1 | D0G |
| PHAETON 08> | 2007- | 8 | 1 | D0G |
| Touareg | 2005-2006 | 7 | 1 | T88 |
| Audi A8/S8/qu. lang | 2003-2007 | 8 | 1 | T81 |
| Phaeton (lang) | 2003-2006 | 8 | 1 | D0G |
| Touareg | 2003-2005 | 7 | 1 | T88 |
| Audi RS6 qu. | 2003-2004 | 8 | 1 | T09 |
| Audi A6/Wagon/quattro | 2001-2004 | 8 | 1 | |
| Audi A8 quattro | 1999-2002 | 8 | 1 | |
| AUDI A8 | 1998-2002 | 8 | 1 | |
| Audi A6/Av.qu.F4B-W-> | 1997-2001 | 8 | 1 |
Platform / generic diagrams (1)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| 7L6 platform | 7 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Drive Chain is fitted on: phaeton 4motion 2008-2010; PHAETON 08> 2007-; Touareg 2005-2006; Audi A8/S8/qu. lang 2003-2007; Phaeton (lang) 2003-2006; Touareg 2003-2005; Audi RS6 qu. 2003-2004; Audi A6/Wagon/quattro 2001-2004; Audi A8 quattro 1999-2002; AUDI A8 1998-2002; Audi A6/Av.qu.F4B-W-> 1997-2001; 7L6 platform.
