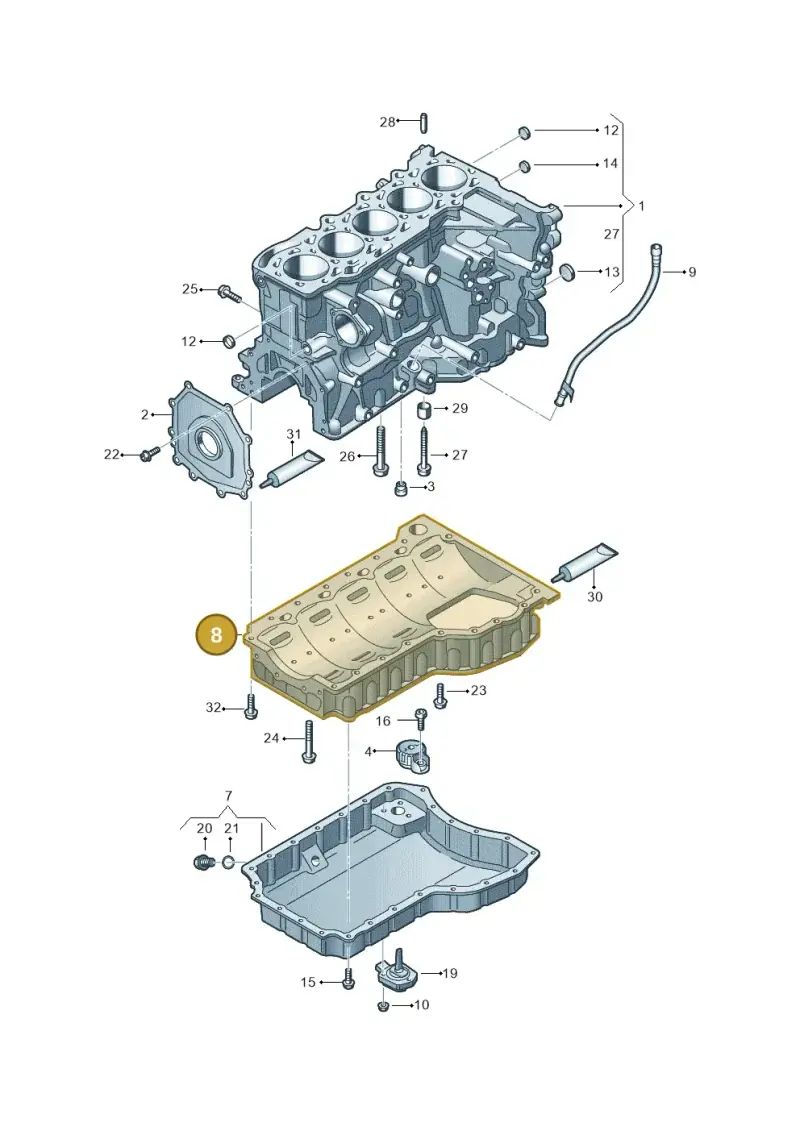

Number 8 marks the part’s position in this exploded view (SEAT CUPRA Formentor (2020-)).
Other diagrams in the gallery may use a different number for the same part.
Product overview
Genuine OEM Audi Engine Oil Sump Upper Part, part number 07K103603K. Fits SEAT CUPRA Formentor (2020), Audi A3 Sportback (2019-2025), Audi RS Q3 Sportback (2019-2024), Audi TT RS (2016-2023), Audi RS3 Limousine (2017-2020). Shown as position 8 in the engine diagram 898103100.
Catalogue entry: OIL SUMP.
Fitted with: 07K103151M FLANGE, N91168701 Screw, N0138495 seal ring, WHT008210 BOLT, N10820203 BOLT, N10765501 SCREW, D176501A1 SEAL, N91170301 SCREW.
Technical details
- Category
- Engine
- Diagram sheet
- SEAT 898103100, position 8
- ETKA group
- 1 / 03 (103)
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
5 vehiclesEngine Oil Sump Upper Part — locate 07K103603K Audi Engine Oil Sump Upper Part in the official exploded view and explore the surrounding assembly.
Parts in this assembly26
- 1Crankcase 07K103011AR
- 2Flange 07K103151M
- 3Vent 07K103154H
- 4Valve 07K103156
- 7Oil Sump 07K103602F
- 10Bolt N10413405
- 12Cover N01190710
- 13Cover N0119085
- 14Cover N0119104
- 15Screw N91168701
- 16Bolt N91043601
- 19Oel Sensor 06E907660C
- 20Screw N91167901
- 21Seal Ring N0138495
- 22Bolt WHT008210
- 23Bolt N10820203
- 24Screw N10765501
- 25Screw N10764601
- 25Part N10649401
- 25Bolt N91101401
- 27Screw WHT008472
- 28Part 026103139
- 29Sleeve 077115143D
- 30Part D176501A1
- 32Screw N91170301
- 33Seal Ring 038103196B
Compatible / alternative parts(12)
Vehicle fitment table5
Europe (5)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Formentor TSI CUPRA | 2020- | 8 | 1 |
| Audi RSQ3 Sportback | 2019-2024 | 8 | 1 |
| Audi A3 Sportback | 2019-2021 | 8 | 1 |
| Audi RS3 Limousine | 2017-2020 | 8 | 1 |
| Audi TTRS Coupe | 2016-2023 | 8 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
07K103603K Audi Engine Oil Sump Upper Part is fitted on: Formentor TSI CUPRA 2020-; Audi RSQ3 Sportback 2019-2024; Audi A3 Sportback 2019-2021; Audi RS3 Limousine 2017-2020; Audi TTRS Coupe 2016-2023.
