087321405D Oil Filler Pipe
Special order item. Delivery time may vary.
About This Part
Discontinued by the manufacturer
This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

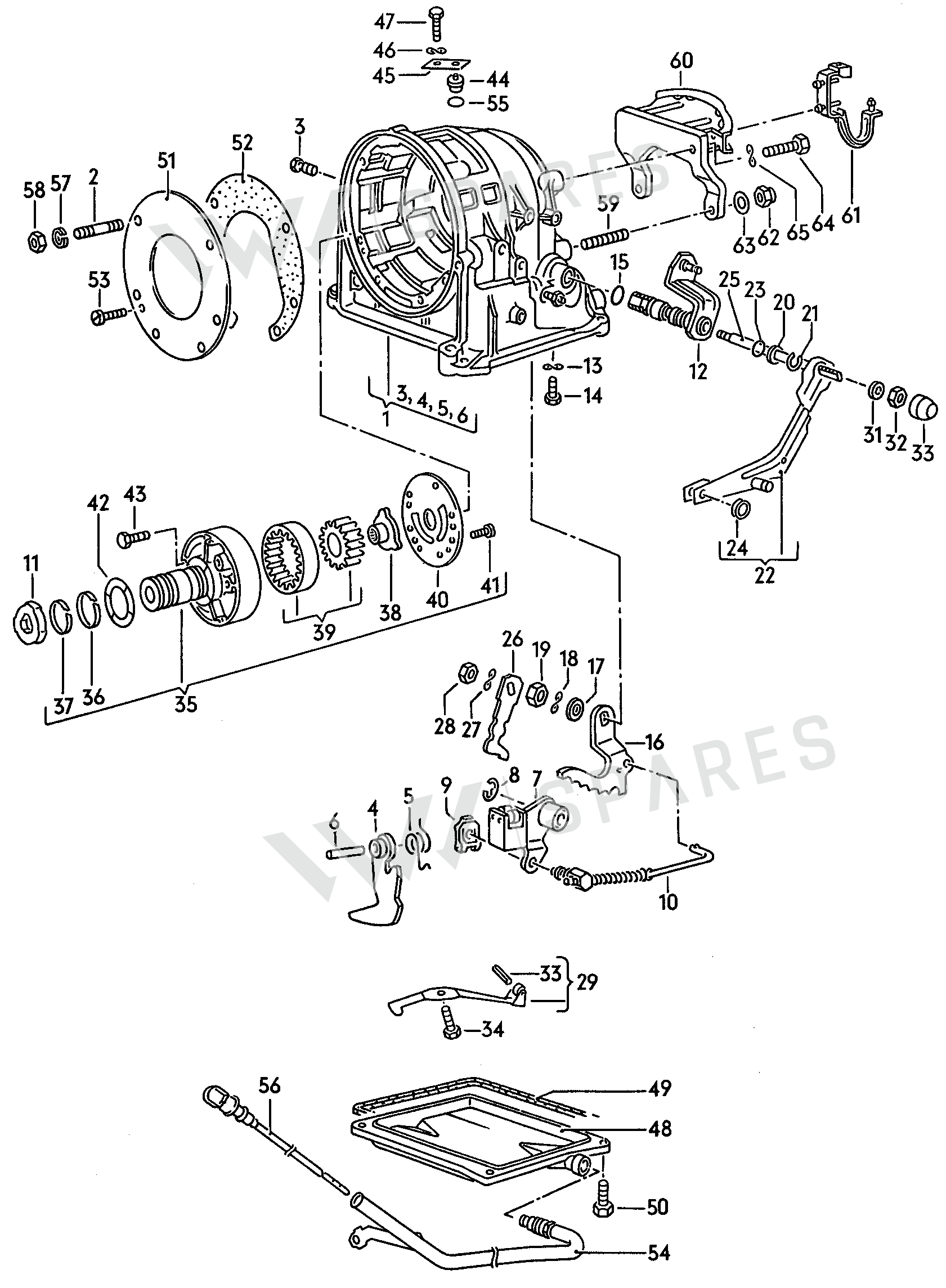

21 vehiclesOil Filler Pipe — locate Oil Filler Pipe in the official exploded view and explore the surrounding assembly.
Parts in this assembly48
- 1Housing 087321101B
- 2Bolt N90004402
- 3Screw 003507133A
- 4Lever 010321117B
- 5Spring 010321121A
- 6In Pin - Engagement Lever Pin - Engagement 010321123
- 7Lever 010321135
- 8Ret Washer N0124382
- 9Ret Washer 010321140
- 10Od"actuating Rod With Pressure Spring Actuating 010321153C
- 11Bearing 010321157A
- 13Washer N0122265
- 14Bolt N0102241
- 15Seal Ring N0282012
- 16Segment 010321193B
- 17Washer N90047701
- 18Lock Ring N0120387
- 19Part N01116415
- 20Washer 010321180B
- 21Ring N0236411
- 23Seal Ring 010321182
- 25Shaft 010321209C
- 26Lever 010321215D
- 27Washer N0122283
- 28Part N0110088
- 29Spring 010321221
- 30Part 010321227
- 31Washer 010321229
- 32Part N0111371
- 33Sleeve N0133251
- 34Bolt N01029316
- 35Oil Pump 010321241F
- 36Piston Ring 003321261
- 37Piston Ring 010321261
- 38Drive For 003321273
- 39Gear Set 003321263
- 40Plate 010321279
- 41Screw N0141212
- 42Washer 010323161A
- 43Bolt N0102213
- 45Clamp 011321307
- 47Bolt N01021226
- 48Oil Sump 010321359F
- 49Gasket 010321371B
- 51Plate 010321383B
- 52Seal 010321385B
- 53Screw N0107021
- 55Seal Ring 003321419B
Vehicle fitment table21
Europe (17)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| Audi 200 Turbo | 1988-1990 | 54 | 1 | |
| Audi 100/Wagon 89 | 1988-1989 | 54 | 1 | |
| Audi 80/90 | 1987-1989 | 54 | 1 | |
| AUDI COUPE/2 88 | 1987-1987 | 60 | 1 | |
| Audi 5000 S/Wagon | 1986-1988 | 51 | 1 | RD |
| Audi 5000 Turbo | 1984-1988 | 51 | 1 | |
| Audi 4000 S | 1984-1987 | 60 | 1 | |
| Audi 5000 S/Wagon | 1984-1986 | 51 | 1 | RDN,RDS,RDT, |
| Audi 5000 S/Wagon 84 | 1983-1984 | 51 | 1 | RDA |
| Audi Coupe | 1981-1987 | 60 | 1 | RR |
| Audi 4000 | 1981-1984 | 60 | 1 | RR,KJ,RBA, |
| Audi 5000 | 1981-1982 | 51 | 1 | |
| PASSAT,-VARIANT/2 81 | 1980-1981 | 60 | 1 | RR |
| Audi 5000 Turbo | 1979-1982 | 51 | 1 | |
| Audi 4000 | 1979-1981 | 60 | 1 | RR,KJ |
| Audi 5000/Wagon | 1979-1981 | 51 | 1 | RW,RX,RY,RT |
| Audi 5000 | 1977-1979 | 51 |
Other markets (4)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| Quantum | 1986-1988 | 60 | 1 | |
| Quantum 86 | 1985-1986 | 60 | 1 | |
| Quantum 85 | 1984-1985 | 60 | 1 | |
| Quantum | 1981-1984 | 60 | 1 | RR,RBA,RBD |
Diagrams & fitment data powered by oemdiagrams.com
Oil Filler Pipe is fitted on: Audi 200 Turbo 1988-1990; Audi 100/Wagon 89 1988-1989; Audi 80/90 1987-1989; AUDI COUPE/2 88 1987-1987; Audi 5000 S/Wagon 1986-1988; Audi 5000 Turbo 1984-1988; Audi 4000 S 1984-1987; Audi 5000 S/Wagon 1984-1986; Audi 5000 S/Wagon 84 1983-1984; Audi Coupe 1981-1987; Audi 4000 1981-1984; Audi 5000 1981-1982; PASSAT,-VARIANT/2 81 1980-1981; Audi 5000 Turbo 1979-1982; Audi 4000 1979-1981; Audi 5000/Wagon 1979-1981; Audi 5000 1977-1979; Quantum 1986-1988; Quantum 86 1985-1986; Quantum 85 1984-1985; Quantum 1981-1984.
