091301141 Oil Drain Plug Magnetic
- 091301141This pageNot stocked
Nov 2012 - 091301141ADiscontinued
Feb 2024
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

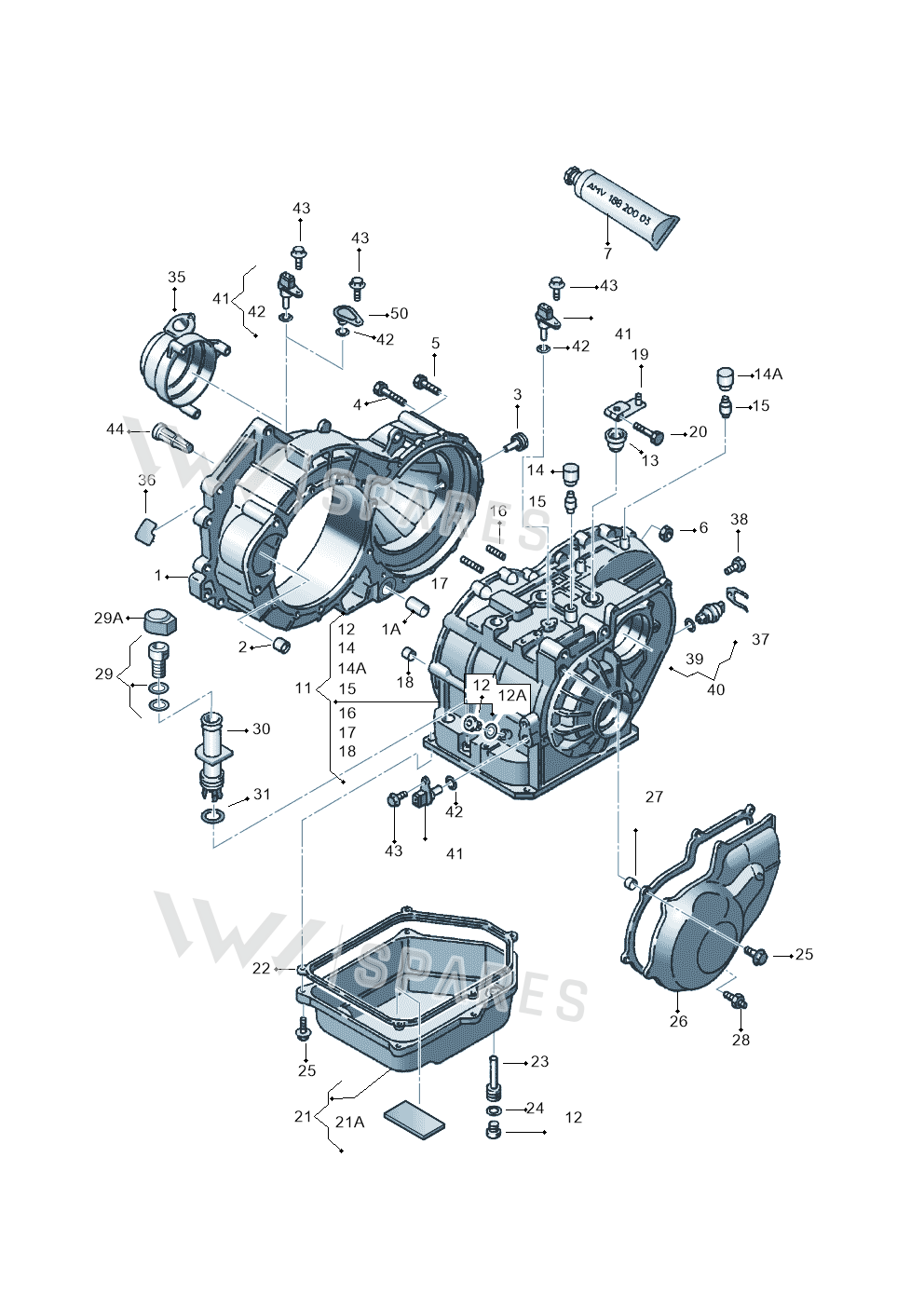

43 vehiclesOil Drain Plug Magnetic — locate Oil Drain Plug Magnetic in the official exploded view and explore the surrounding assembly.
Parts in this assembly32
- 1Housing 099321107AC
- 2Bush 113301155
- 4Bolt N10162204
- 5Bolt N0195033
- 6Collar Nut N10609203
- 7Seal Comp AMV18820003
- 11Housing 01P321102F
- 12Bolt N90414203
- 12ASeal Ring N0138115
- 13Seal Ring 095321182B
- 14Ap Cap For Venting The Gearbox Cap For Venting 095409841
- 14AAp Cap For Venting The Gearbox Cap For Venting 010409841A
- 15Pipe 010409847
- 16Bolt N0145965
- 18Sleeve 02M301153A
- 19Lever 099321171A
- 20Bolt N90441601
- 21Oil Sump 099321359A
- 21AMagnet 097321368
- 22Seal 098321370
- 23Oil Pipe 099321363
- 25Bolt N90533005
- 26Cover 01P321490
- 28Bolt N91148001
- 29Bungs 01M321432A
- 29APart 01M321435B
- 31Seal Ring 003321419B
- 36Plate 098321110B
- 37Bracket 097321527
- 39Seal Ring 095321529
- 42Seal Ring 095321559
- 43Bolt N90440706
Vehicle fitment table43
Europe (30)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| ALHAMBRA/4MOTION | 2005- | 3 | 1 | |
| PASSAT/4MOTION/W8 | 2002-2005 | 25 | 1 | G0E |
| SHARAN/4MOTION | 2002-2005 | 3 | 1 | G0E |
| ALHAMBRA/4MOTION | 2002-2005 | 3 | 1 | |
| PASSAT 00> | 2000- | 25 | 1 | G0E |
| Passat/4Motion/W8 | 2000-2002 | 25 | 1 | |
| ALHAMBRA/4MOTION | 2000-2002 | 3 | 1 | |
| Audi A4/Avant | 1999-2001 | 25 | 1 | |
| Audi A6/Avant | 1997-2001 | 25 | 1 | |
| Passat | 1997-2000 | 25 | 1 | |
| Audi A4/Avant F8D-W-> | 1997-1998 | 25 | 1 | |
| ALHAMBRA | 1996-2000 | 3 | 1 | |
| Audi A6/Wagon F >4A-W | 1996-1997 | 25 | 1 | |
| Transporter 96 | 1996-1996 | 3 | 1 | |
| SHARAN/SYNCRO | 1995-2000 | 3 | 1 | |
| Audi A4 F>8D-W-.. | 1995-1997 | 25 | 1 | |
| Audi A6/Wagon 96 | 1995-1996 | 25 | 1 | |
| Audi A6/Wagon 95 | 1994-1995 | 20, 25 | 1 | |
| Audi Coupe/3 | 1994-1995 | 20, 25 | 1 | |
| Audi Cabrio. | 1993-1998 | 20, 25 | 1 | |
| Audi 90 | 1993-1995 | 20, 25 | 1 | |
| Audi 100/Wagon 94 | 1993-1994 | 20 | 1 | |
| Audi 90 93 | 1992-1993 | 20 | 1 | |
| Audi 100/Wagon 93 | 1992-1993 | 20 | 1 | |
| Audi 100/Wagon 92 | 1991-1992 | 20 | 1 | |
| Audi 80/90 | 1989-1991 | 20 | 1 | |
| Audi 100/Wagon | 1989-1990 | 20 | 1 | |
| AUDI COUPE/3 | 1988-1994 | 20 | 1 | |
| TIPO 2 (MEX) | 1971-2001 | 22 | 1 | |
| Type 2 | 1967-1979 | 22 | 1 |
Other markets (12)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| PASSAT LINGYU "CN."06> | 2005- | 25 | 1 | G0E |
| SANTANA 3000 "CN"04> | 2004- | 25 | 1 | G0E |
| Eurovan | 1998-2003 | 3 | 1 | |
| SANTANA 2000 "CN"96>04 | 1996-2004 | 25 | 1 | |
| Eurovan | 1996-1997 | 3 | 1 | |
| TYPE 2 "ZA" | 1995-2003 | 11 | 1 | |
| Eurovan F>>70-T 96 | 1995-1995 | 3 | 1 | |
| Eurovan 95 | 1994-1995 | 3 | 1 | |
| Vanagon | 1987-1992 | 11 | 1 | |
| Vanagon syncro | 1985-1992 | 11, 4 | 1 | |
| Vanagon | 1985-1987 | 11 | 1 | |
| Vanagon | 1979-1985 | 9, 11 | 1 |
Platform / generic diagrams (1)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| 3B0 platform | 25 |
Diagrams & fitment data powered by oemdiagrams.com
Oil Drain Plug Magnetic is fitted on: ALHAMBRA/4MOTION 2005-; PASSAT/4MOTION/W8 2002-2005; SHARAN/4MOTION 2002-2005; ALHAMBRA/4MOTION 2002-2005; PASSAT 00> 2000-; Passat/4Motion/W8 2000-2002; ALHAMBRA/4MOTION 2000-2002; Audi A4/Avant 1999-2001; Audi A6/Avant 1997-2001; Passat 1997-2000; Audi A4/Avant F8D-W-> 1997-1998; ALHAMBRA 1996-2000; Audi A6/Wagon F >4A-W 1996-1997; Transporter 96 1996-1996; SHARAN/SYNCRO 1995-2000; Audi A4 F>8D-W-.. 1995-1997; Audi A6/Wagon 96 1995-1996; Audi A6/Wagon 95 1994-1995; Audi Coupe/3 1994-1995; Audi Cabrio. 1993-1998; Audi 90 1993-1995; Audi 100/Wagon 94 1993-1994; Audi 90 93 1992-1993; Audi 100/Wagon 93 1992-1993; Audi 100/Wagon 92 1991-1992; Audi 80/90 1989-1991; Audi 100/Wagon 1989-1990; AUDI COUPE/3 1988-1994; TIPO 2 (MEX) 1971-2001; Type 2 1967-1979; PASSAT LINGYU "CN."06> 2005-; SANTANA 3000 "CN"04> 2004-; Eurovan 1998-2003; SANTANA 2000 "CN"96>04 1996-2004; Eurovan 1996-1997; TYPE 2 "ZA" 1995-2003; Eurovan F>>70-T 96 1995-1995; Eurovan 95 1994-1995; Vanagon 1987-1992; Vanagon syncro 1985-1992; Vanagon 1985-1987; Vanagon 1979-1985; 3B0 platform.
