091301141A Oil Drain Plug Magnetic
- 091301141Not stocked
Nov 2012 - 091301141AThis pageDiscontinued
Feb 2024
Special order item. Delivery time may vary.
About This Part
Discontinued by the manufacturer
This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

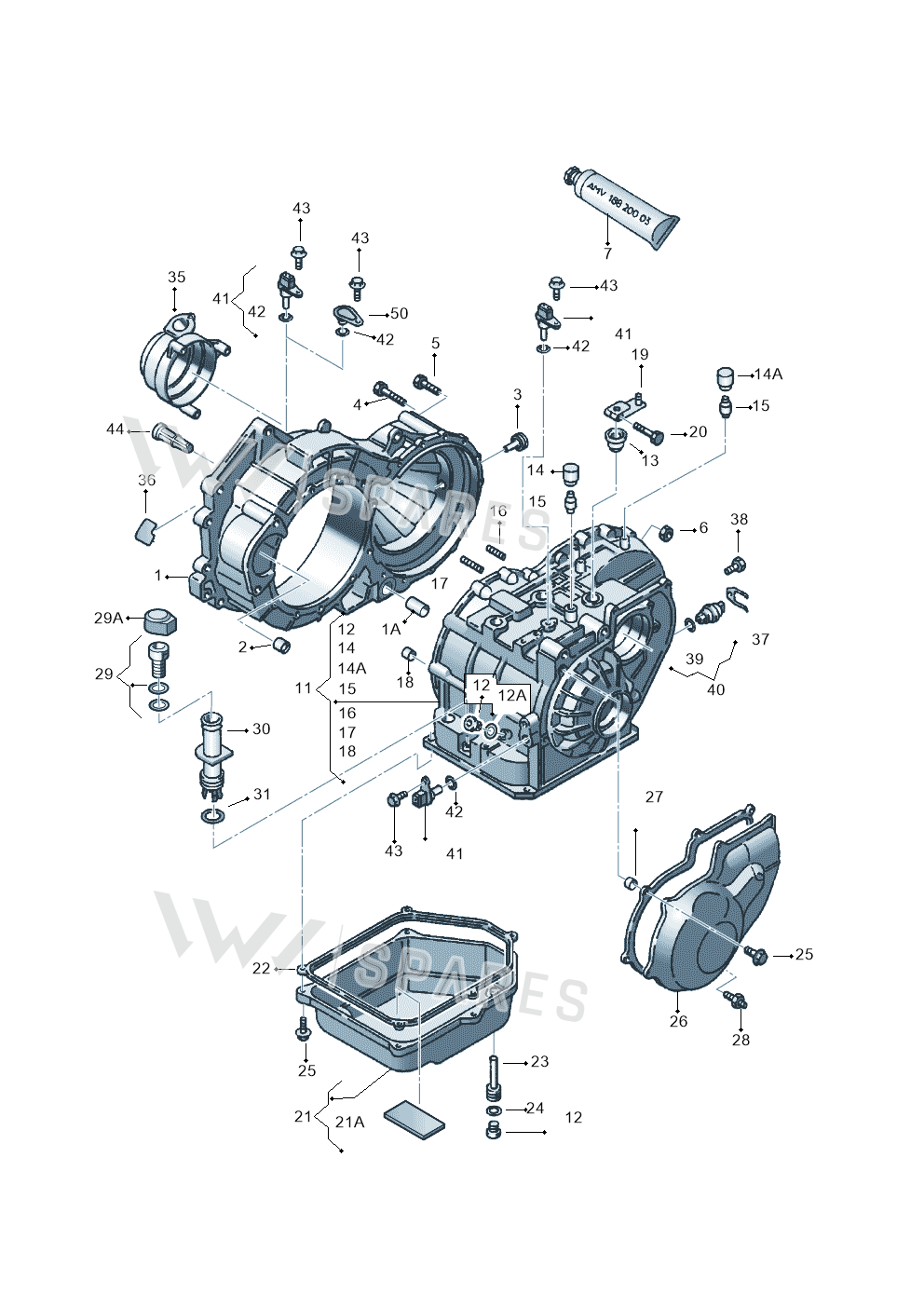

4 vehiclesOil Drain Plug Magnetic — locate Oil Drain Plug Magnetic in the official exploded view and explore the surrounding assembly.
Parts in this assembly32
- 1Housing 099321107AC
- 2Bush 113301155
- 4Bolt N91073401
- 5Bolt N0195033
- 6Collar Nut N10609203
- 7Seal Comp AMV18820003
- 11Housing 01P321102F
- 12Bolt N90414201
- 12ASeal Ring N0138115
- 13Seal Ring 095321182B
- 14Ap Cap For Venting The Gearbox Cap For Venting 095409841
- 14AAp Cap For Venting The Gearbox Cap For Venting 010409841A
- 15Pipe 0AM409847
- 16Bolt N0145965
- 18Sleeve 02M301153A
- 19Lever 099321171A
- 20Bolt N90441601
- 21Oil Sump 099321359A
- 21AMagnet 097321368
- 22Seal 098321370
- 23Oil Pipe 099321363
- 25Bolt N90533005
- 26Cover 01P321490
- 28Bolt N90578501
- 29Bungs 01M321432A
- 29APart 01M321435B
- 31Seal Ring 003321419B
- 36Plate 098321110B
- 37Bracket 097321527
- 39Seal Ring 095321529
- 42Seal Ring 095321559
- 43Bolt N90440701
Vehicle fitment table4
Europe (2)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| SHARAN/4MOTION | 2005- | 3 | 1 | G0E |
| SHARAN/4MOTION | 2000-2002 | 3 | 1 | G0E |
Other markets (2)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Eurovan 98 | 1997-1998 | 3 | 1 | |
| Eurovan | 1991-1994 | 3 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Oil Drain Plug Magnetic is fitted on: SHARAN/4MOTION 2005-; SHARAN/4MOTION 2000-2002; Eurovan 98 1997-1998; Eurovan 1991-1994.
