098321363 Oil Pipe
- 098321363This pageNot stocked
Oct 1998 - 099321363Discontinued
Aug 2024
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINShipping details
- Shipping weight
- 2 g
- Shipping size (L × W × H)
- 5.2 × 1 × 1 cm
- Customs (HS) code
- 87084099

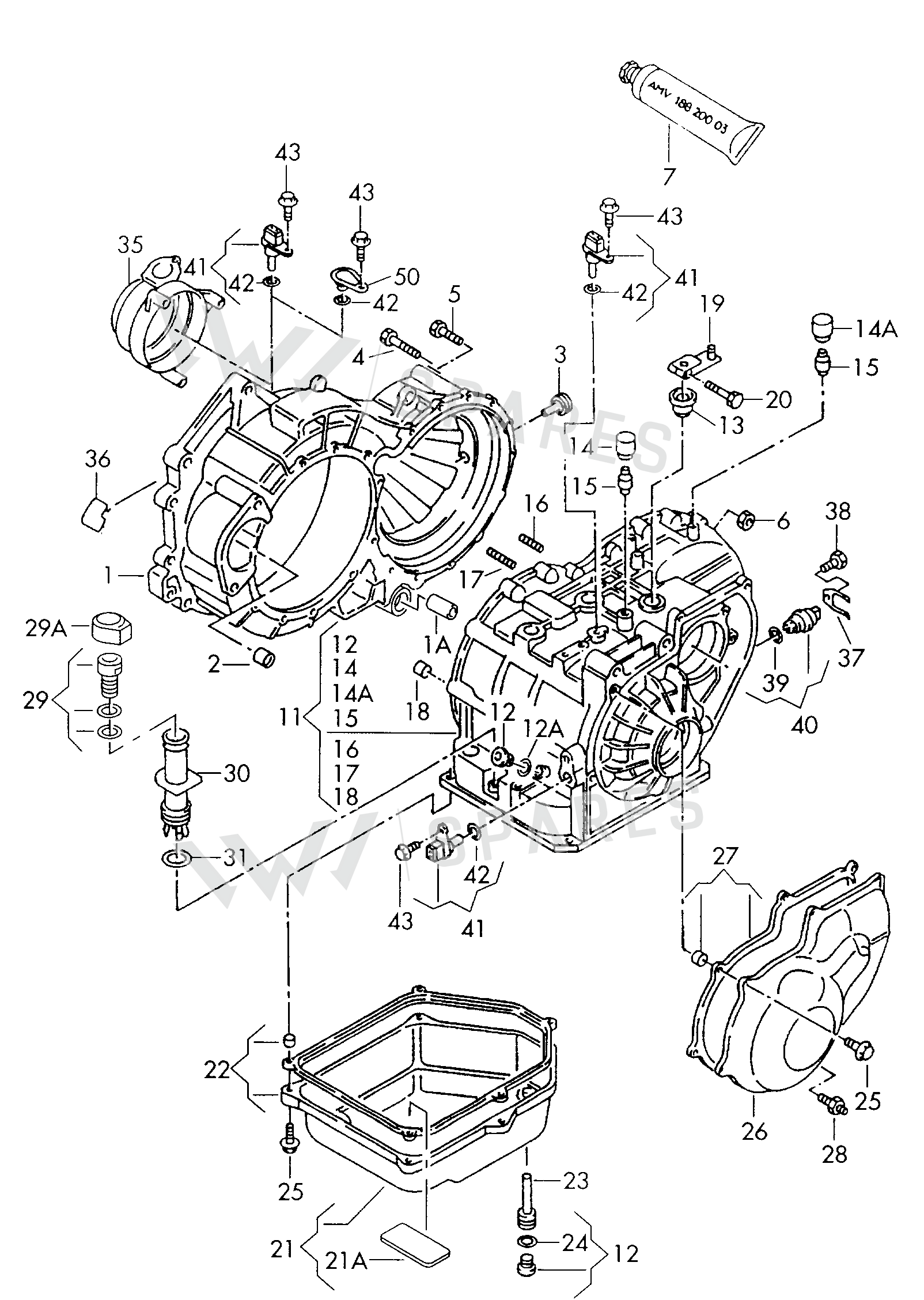

Parts diagram & fitment
4 vehiclesOil Pipe — locate Oil Pipe in the official exploded view and explore the surrounding assembly.
Parts in this assembly36
- 1Housing 098321107M
- 1Housing 098321107T
- 2Bush 113301155
- 3Plug 091301141
- 4Bolt N91073401
- 5Bolt N0195033
- 6Collar Nut N10609203
- 7Seal Comp AMV18820003
- 11Housing 01P321102D
- 12Bolt N90414201
- 12ASeal Ring N0138115
- 13Seal Ring 095321182B
- 14Ap Cap For Venting The Gearbox Cap For Venting 095409841
- 14AAp Cap For Venting The Gearbox Cap For Venting 010409841A
- 15Pipe 0AM409847
- 16Bolt N0145965
- 17Bolt N0144007
- 18Sleeve 02M301153
- 19Lever 098321171A
- 19Lever 098321171
- 20Bolt N90441601
- 21Oil Sump 01P321359
- 21AMagnet 097321368
- 22Seal 098321370
- 23Oil Pipe 099321363
- 25Bolt N90533005
- 26Cover 01P321490
- 28Bolt N90578501
- 29Bungs 01M321432A
- 29APart 01M321435B
- 31Seal Ring 003321419B
- 36Plate 098321110B
- 37Bracket 097321527
- 39Seal Ring 095321529
- 42Seal Ring 095321559
- 43Bolt N90440701
Vehicle fitment table4
Europe (1)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Transporter 96 | 1996-1996 | 23 | 1 |
Other markets (3)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Eurovan | 1996-1997 | 23 | 1 |
| Eurovan F>>70-T 96 | 1995-1995 | 23 | 1 |
| Eurovan 95 | 1994-1995 | 23 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Oil Pipe is fitted on: Transporter 96 1996-1996; Eurovan 1996-1997; Eurovan F>>70-T 96 1995-1995; Eurovan 95 1994-1995.
